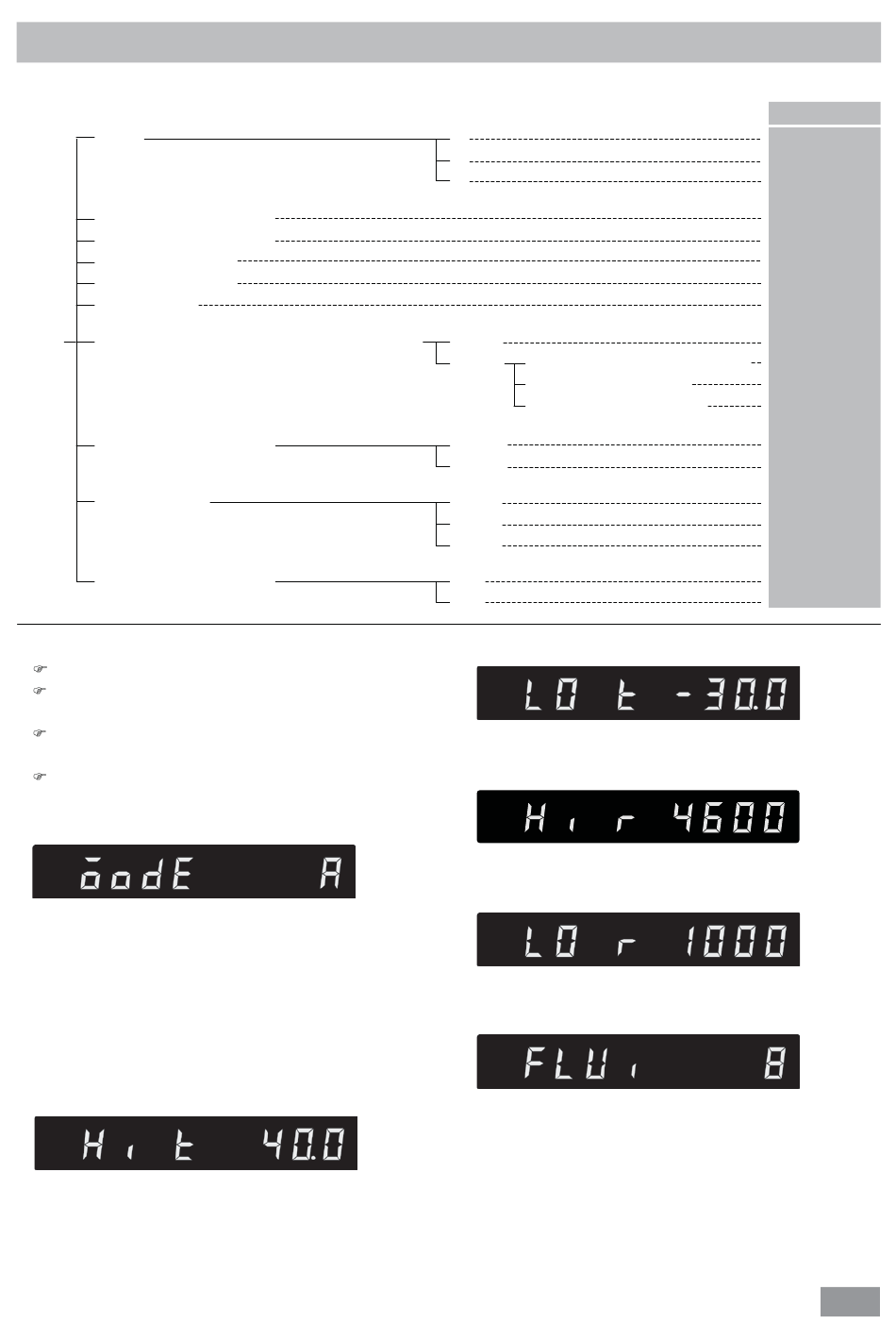

• Menu structure:

MODE
Maximum temperature (HI T)

Minimum temperature (LO T)

Maximum speed (HI R)

Minimum speed (LO R)

Fluid type (FLUI)

Menu
The type of temperature PID control arithmetic (AUTO)
Alarm and button tone (BEEP)
Calibration (CALI)
Reset to factory settings (RST)

• Basic guide to setting the menu options:

Enter the menu by pressing "Menu" button (F).
Press the"Temp (+)" button (M) or "Temp (-)" but-
ton (N) to change the menu options.
Press the"Pump (+)" button (J) or "Pump (-)" button
(K) to change the menu value settings.
Confirm the menu settings by pressing the "OK/Pump"
button (I).

Operating mode (MODE):

•
Mode A: After power on/power failure no automatic
restart of functions.
Mode B: After power on/power failure automatic re-
start of functions, depending on previous settings.
Mode C: Set values (set in A or B) cannot be changed.
After power on/power failure automatic restart of func-
tions, depending on previous settings.

Maximum temperature (HIT):

•
The maximum adjustable value: 40 °C.

Menu settings

A
B
C
AUTO 1
Proportional coefficient of PID (Kp 1)
AUTO 0
Integrate time of PID (Ti 1)
Differential time of PID (Td 1)
BEEP 0
BEEP 1
CALI 0
CALI 2
CALI 3
No
Yes
Minimum temperature (LO T):
•
The minimum adjustable value: -30 °C.
Maximum speed (HI R):
•
The maximum adjustable value: 4600 rpm.
Minimum speed (LO R):
•
The minimum adjustable value: 1000 rpm.
• Fluid type (FLUI):
The chosen fluid (No.) limits the maximum and mini-
mum temperature. Customized fluid (No.: 8) enables the
whole working temperature range. See Section "Fluids
(Standard information for IKA fluid)".
Default settings
Activated
-
-
40 °C
-30 °C
4600 rpm
1000 rpm
8
Activated
80.0
10.0
2.0
-
Activated
Activated
-
-
Activated
-
