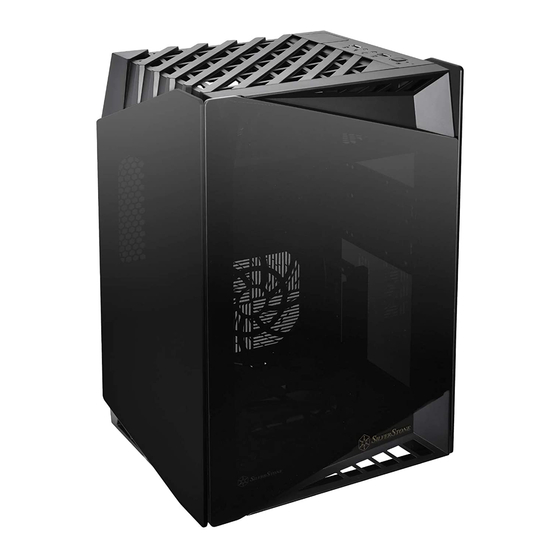

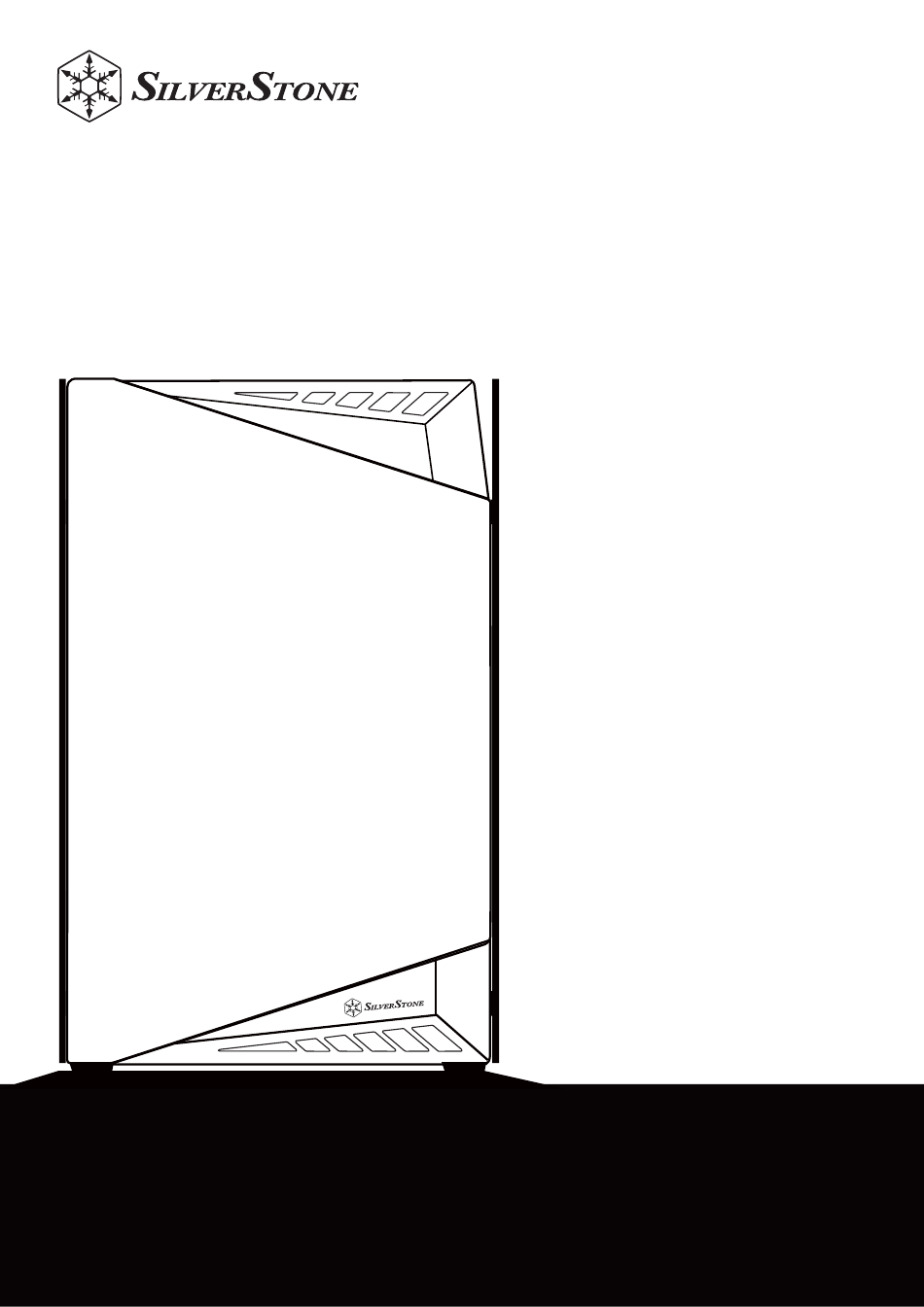

- Page 1 Lucid Series LD03 LD03 Small form factor case with artful blend of engineering and aesthetics www.silverstonetek.com...
- Page 2 Accessory Content / Zubehörinhalt / Contenu en accessoires / Contenido de los accesorios / Contenuto accessorio / 配件 / 配件 / Дополнительные элементы / 付属品内容 / 액세서리 내용물 Installation Guide / Installationsanleitung / Guide d'installation / Guía de instalación / Guida all'installazione / Руководство по установке / インストールガイド...
- Page 3 Accessory Content SECURE MOTHERBOARD 3.5" HDD / PSU MOTHERBOARD / 3,5-ZOLL-FESTPLATTE / Крепление материнской платы/3,5" HDD/БП NETZTEIL SICHERN SCREW (#6-32) FIXATION DE LA CARTE MÈRE / DISQUE DUR 固定主機板 / 3.5" HDD / PSU 3,5" / BLOC D’ALIMENTATION Fije la placa base / 3,5" HDD/PSU 固定主板...
- Page 4 Installation Guide...
- Page 5 Install motherboard Cooler limitation Height < 190mm Clearance from top edge of motherboard < 4.3mm Motherboard installieren Höhenbeschränkung für Kühler Höhe < 190mm Abstand vom oberen Rand des Motherboards < 4.3mm Installez la carte mère Limitation du refroidisseur de l'unité centrale Hauteur <...
- Page 6 Install 3.5" / 2.5" devices HDD limitation 2.5" x 2 or (3.5" x 1) + (2.5" x 1) 3,5- / 2,5-Zoll-Geräte Festplattenbegrenzung 2.5" x 2 oder (3.5" x 1) + (2.5" x 1) Installez les périphériques 3,5" / 2,5" limitation du HDD 2,5"...
- Page 7 Install power supply PSU limitation Support up to SFX-L length < 130mm Netzteil installieren Netzteil-Einschränkungen Unterstützung bis SFX-L Länge < 130 mm Installer le bloc d'alimentation Limitation du bloc d’alimentation Prise en charge jusqu'à la longueur SFX-L < 130 mm Instalar fuente de alimentación Limitación PSU Acepta hasta SFX-L Longitud <...
- Page 8 Install graphics card Expansion card limitation For graphics card that exceeds 274mm length, the width of it has to be shorter than 145mm. Remove the filter on bottom first, then insert the graphics card into the cutout from the bottom at an angle. Graphics card with thickness of 48mm or less is recommended. Grafikkarte installieren Erweiterungskarten-Einschränkungen Bei Grafikkarten mit einer Länge von mehr als 274 mm muss die Breite weniger als...
- Page 9 Finish installation...
- Page 10 Components limitation Bottom 17mm 10.7mm 26mm 9.5mm 10.7mm 18mm 6.5mm 26mm Radiators Радиаторы Top: 120 rad. x 1 Верхняя: 120 мм Радиатор x 1 Bottom: 120mm rad. x 1 Нижняя: 120 мм Радиатор x 1 Kühlkörper 水冷裝置 Deckel: 120mm rad. x 1 上板: 120mm 水冷排...
- Page 11 Removal of filters and fans Remove filter Снятие фильтра 1. Remove PSU filter 1. Снимите боковой фильтр 2. Remove bottom filter 2. Снимите нижний фильтр Filter entfernen 濾網移除 1. Seitlichen Filter entfernen 1. 移除側濾網 2. Unteren Filter entfernen 2. 移除底部濾網 Enlevez le filtre 滤网移除...
- Page 12 Remove fan Снятие вентилятора <Remove top fan> <Снимите верхний вентилятор> Remove top cover, front bezel and side panels before uninstalling fans. Снимите верхнюю крышку, переднюю панель и боковые панели перед Please refer to steps 1 – 3 on preparation page снятием...
