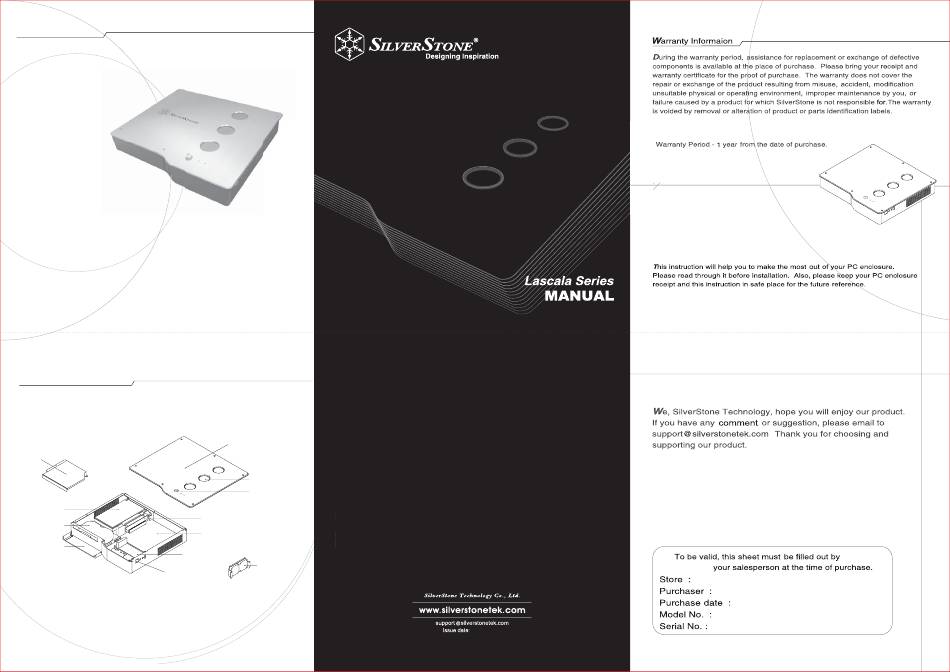

SilverStone LC 09 Manual

SilverStone LC 09 Manual

Lascala series

Advertisement

Quick Links

P
roduct Overview

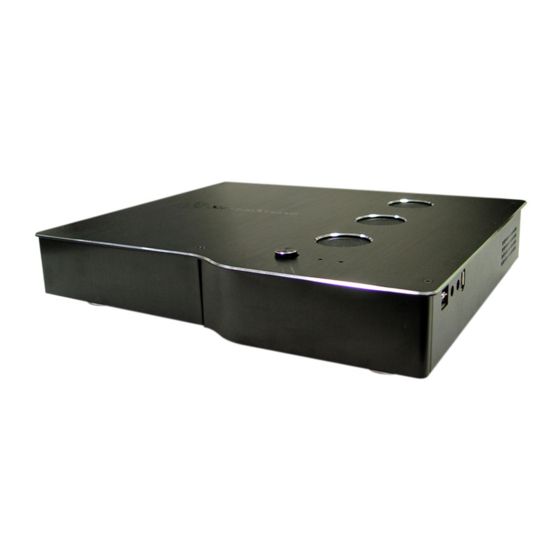

SST-LC09
Specification:
Material: Aluminium front panel and cover
Color: Silver & Black
M/B Type: VIA EPIA Mini ITX mother board
Drive Bay: Slim optical drive x 1 ( Exposed ), 3.5" x 1 ( Hidden )
Additonal: USB 2.0 Port x 1,IEEE 1394 x 1,Earphone jack x 1,MIC x 1
Power Supply: 60W DC to DC Adaptor (80W Peak)
Dimension: 345 mm ( W ) x 55 mm ( H ) x 310 mm ( D )
Disassemble Chart
SLIM CD-R
PCI CARD
3.5 BAY * 1 (HIDDEN)
DOOR
60W DC to DC BOARD (80W PEAK)
FRONT IO
(1394+USB+MIC+SPK)
TOP PANEL
VENTING HOLE
POWER SW
RISER CARD
VIA ITX M/B
OPTIONAL 40mm FAN
LC 09
May
, 2006
NO: G11400244

Advertisement

loading
Need help?

Need help?

Do you have a question about the LC 09 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SilverStone LC 09

  • Page 1 M/B Type: VIA EPIA Mini ITX mother board Drive Bay: Slim optical drive x 1 ( Exposed ), 3.5" x 1 ( Hidden ) LC 09 Additonal: USB 2.0 Port x 1,IEEE 1394 x 1,Earphone jack x 1,MIC x 1...
  • Page 2 1. From the backside of the case, take 2. Included power cord and AC adapter 3. Use included hex wrench to remove 4. For additional cooling take out the fan 5. Place the rubber spacers (4pcs) on 6. Then make sure the fan is securely out all the accessories as shown.
