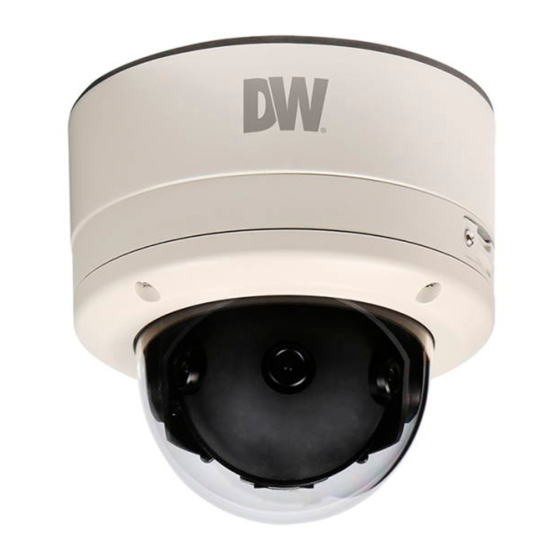

DW MEGAPIX PANO DWC-PV2M4T Quick Start Manual

DWC-PV2M4T
Username: admin Password: admin
WHAT'S IN THE BOX
Screw & Plastic
QSG Manual 1 Set
Anchor – 4pcs
Manual CD 1 Set T-Wrench
Template Sheet 1 Set Torx Wrench
Test Monitor Cable 1 Set Six angles Wrench
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
Step 1 – PREPARING TO MOUNT THE CAMERA
1.
Using the mounting template sheet or the camera itself, mark and drill the necessary holes in the wall
or ceiling.
2. Install the camera's junction box on the mounting surface using the provided screws.
3. Secure the main body to the junction box using the safety wire.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
1. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using an Ethernet
cable for both data and power.
b.
NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter to power the camera.
Power Requirements
DC 12V
PoE IEEE 802.3atPoE+ / PoE Class 3
c. AUDIO CONNECTIONS – Connect the 'Audio Out' cable to a device such as a speaker. Connect the
'Audio In' cable to a device such as a microphone.
1 Set
d. ALARM INPUT / SENSOR – Connect the white and yellow cables to an alarm / sensor input device
such as a motion detector.
1 Set
e.
ALARM OUTPUT – Connect the red and black cables to an alarm output device such as alarm lights.
1 Set Step 3 – INSTALLING THE CAMERA MODULE
1. Attach the main body to the junction box by tightening the lock screw using the six-angle wrench.
1 Set
2. Tighten the lock set screw to fix the camera.
3. Adjust the angle of the camera by rotating the Control screw on the main body using the T-wrench.
See 'Step 4' for more information.
digital-watchdog.com
Power Consumption
DC 12V: 6.3W, 525mA / TDN ON: 8.8W, 733mA
PoE: 7W, 583mA / TDN ON: 9.3W, 775mA

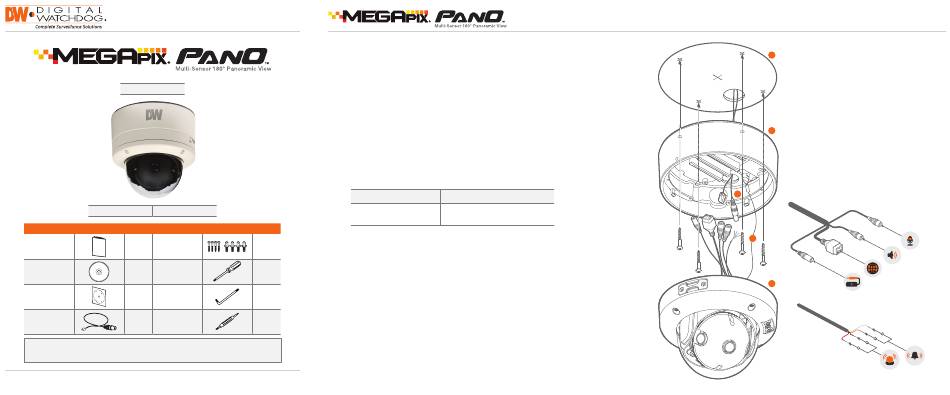

Quick Start Guide
A.
A Using the template sheet, make and drill
the cabling holes on the wall/ceiling.
B. Install the mount bracket on the wall/ceiling
using the provided screws.
C. Secure the main body to the mount bracket
using the safety wire.
D.
Pass the wires through the mount bracket
and make all necessary connections.
B
E. Attach the main body to the mount bracket
by tightening the lock screw using the six-
angle wrench.
D
C
NETWORK CONNECTION
AUDIO OUTPUT
POWER
NETWORK CONNECTION
E
POWER
ALARM
ALARM
INPUT
OUTPUT
ALARM
ALARM
INPUT
OUTPUT
AUDIO INP
AUDIO OUTPUT
AUDIO INPUT
