Summary of Contents for PAG Mini PAGLink MPL50G

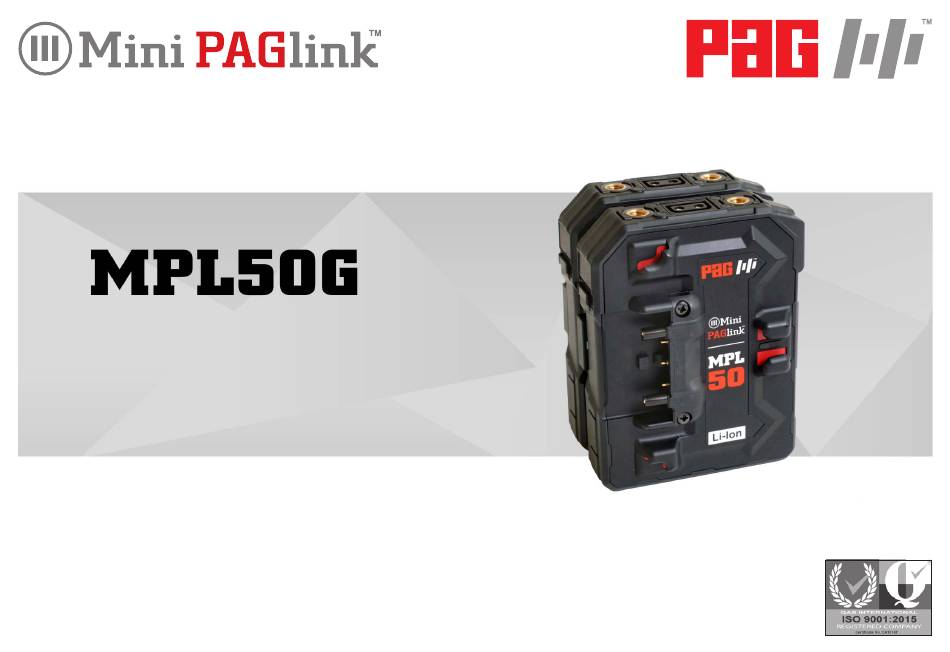

- Page 1 Intelligent Linking Batteries User Guide U5136G...
- Page 2 PAG updates documents on a regular basis. Trademarks All PAG registered trademarks are the property of PAG Ltd. All third party trademarks are acknowledged as such. Patents Apply: paguk.com/patents...
-
Page 3: Table Of Contents
Page Introduction Specification Charging Discharging Storage Battery Linking Features A User Guide for Mini PAGlink MPL50G Intelligent Run-Time, Capacity & Data Linking Batteries. Battery Outputs Please read the important safety information and Battery Protection Features instructions before using your battery. -
Page 4: Introduction
1. Introduction Models covered by these instructions: D-Tap Output 1/4” Bush 1/4” Bush Model No. Name Capacity Mount 7141 MPL50 50Wh Gold Mount Display USB (2A) The Mini PAGlink MPL50 Battery Model 7141 is designed to be Output compatible with the Anton Bauer Gold Mount battery plate. Unit Display Button... - Page 5 1. Introduction Output Unit The MPL50G has a built-in D-Tap output (12V) and a replaceable USB Release Slider output unit (5V 2A) that can be swapped for Lemo, Hirose or D-Tap output units, already available for the Gold Mount PowerHub. The smaller, lighter batteries allow you to control the capacity and weight of your power source to suit the application: 1 battery is ideal for handheld applications, 2 or more linked batteries provide longer...
- Page 6 1.15 The MPL50G battery features an ergonomic design and a ‘soft-touch’ coated protective band for safer handling and increased durability. 1.23 PAG Li-Ion batteries are tested by an independent authority to UN standards in compliance with IATA Air Transport regulations.
-
Page 7: Specification
109mm (4.3”) x 87mm (3.4”) x 43mm (1.7”) 12V (unregulated), designed for powering camera accessories. Weight: Removable USB Output: 360g (12.7oz) approx. 5V regulated, 2A continuous, 3A peak. Interchangeable with Hirose (4-pin), Lemo (2-pin), D-Tap and 2.1mm DC output units available individually from PAG or its resellers. -
Page 8: Charging
CHARGE THE BATTERY. 50Wh Batteries PL16 Times Micro Charger Times NOTE: The PAG MPL50G Battery is put into ‘ship mode’ prior to 01:15 02:00 transit, to reduce its rate of self-discharge. The battery can be activated by connecting it to a charger that is powered-up, or by... -
Page 9: Discharging
4. Discharging PAG MPL50G batteries can be discharged individually or linked. They this battery is always active (but not necessarily delivering current). can also be discharged linked to PAGlink Gold Mount batteries Models The system makes the most efficient use of the power available, and 9306 PL94T and 9313 PL150T. - Page 10 4. Discharging When the battery has been discharged at a high rate it will become warm, and it is advisable to let it cool before charging. When not in use, batteries should be kept in an unlinked state to ensure a lower self-discharge rate.
-
Page 11: Storage
5. Storage For the short term, MPL50G batteries can be left stacked on a charger until required; the charger will keep them topped-up ready for use. For long-term storage, batteries should be in a half-charged state (between 20% and 80%), and not linked. After a long period of inactivity, an MPL50G battery will auto- matically enter Ship Mode, which greatly reduces its rate of self- discharge. -
Page 12: Battery Linking Features
6. Battery Linking Features Linking Batteries: PRESS RELEASE UNLOCKED LOCKED BUTTON To link batteries, align the gold studs of one battery with the claws To unlink batteries, hold down the front battery’s release button and on the front of another. Slide the battery across until you hear a click slide the battery to the left. - Page 13 6. Battery Linking Features Mini PAGlink MPL50G batteries can be discharged and charged individually or linked, combining their capacities. Two batteries will DIGITAL BATTERY COMMUNICATION provide 100Wh when linked, 3 will provide 150Wh. MPL50G batteries can also be linked to PAGlink PL94 and PL150 batteries.
-
Page 14: Run-Time, Capacity & Data
7. Run-Time, Capacity & Data The Battery Display: Display Data Output: The battery is able to display a numeric run-time prediction against Data stored in the battery’s microprocessor can be revealed using the load, and charge status as a percentage. battery display: When connected to a camera that is turned-on, two presses of the battery’s display button will... - Page 15 7. Run-Time, Capacity & Data PAGlink Battery Reader The PAGlink Battery Reader (Model 9647A) is an accessory that can be used to display data stored in the battery’s microprocessor. When connected to the battery contacts it will provide information that is beneficial for managing your batteries: Reader Menu: Press x3without...
-
Page 16: Battery Outputs
8. Battery Outputs The MPL50G battery features a built-in D-Tap output (unregulated) Output Units for the MPL50G battery: designed for powering 12V camera accessories. It also incorporates a USB output unit, regulated at 5V (2A), which is interchangeable with other output unit types: Hirose (4-pin), Lemo (2-pin) and D-Tap. REAR OF BATTERY Lemo (2-pin) USB (5V 2A) -
Page 17: Battery Protection Features
A thermal fuse is incorporated within the battery construction as a ‘backstop’ protection device, and this cannot be reset. In the unlikely event of this fuse operating, please contact PAG or your dealer. -
Page 18: Safety Information
10. Safety Information 10.1 PLEASE READ THESE IMPORTANT SAFETY INSTRUCTIONS BEFORE Do not attempt to disassemble the battery. Refer faults to authorised USING THE BATTERY AND RETAIN THEM FOR FUTURE REFERENCE. service personnel. When used correctly, Lithium-Ion batteries are a rugged and safe Do not continue to use the battery if there is any change in the method of storing power. -
Page 19: Servicing
Positive (IATA). Link Detect If a fault develops, please contact a PAG service centre to receive a fault diagnosis. Batteries that require further analysis must be PAGlink Comms returned to your nearest PAG service centre. Li-Ion batteries are... -
Page 20: Recycling
Expired batteries should be disposed of in accordance with the appropriate regulations or legislation. PAG offers a recycling service for its expired batteries in the UK. They can be returned to PAG Ltd. only by prior arrangement. They must be in a discharged state, and clearly marked ”FOR RECYCLING”. -
Page 21: Guarantee
In the event of failure of a product covered by this guarantee, PAG Limited will repair and calibrate equipment returned to an authorised Service Facility within the period of the guarantee, provided the guarantor’s examination discloses to its satisfaction the product was... -
Page 22: Air Transport
Since the interpretation and application of regulations may vary with All PAG Li-Ion batteries comply with the International Air Transport each state and each operator, PAG advises that you contact both Association (IATA) Dangerous Goods Regulations, January 2019, prior to travelling.
