B-K lighting PS Installation Instructions page 3

Installation Instructions
Integral
Transformer
5 7/8" Dia.
(149mm)
5"
(127mm)
Integral Transformer

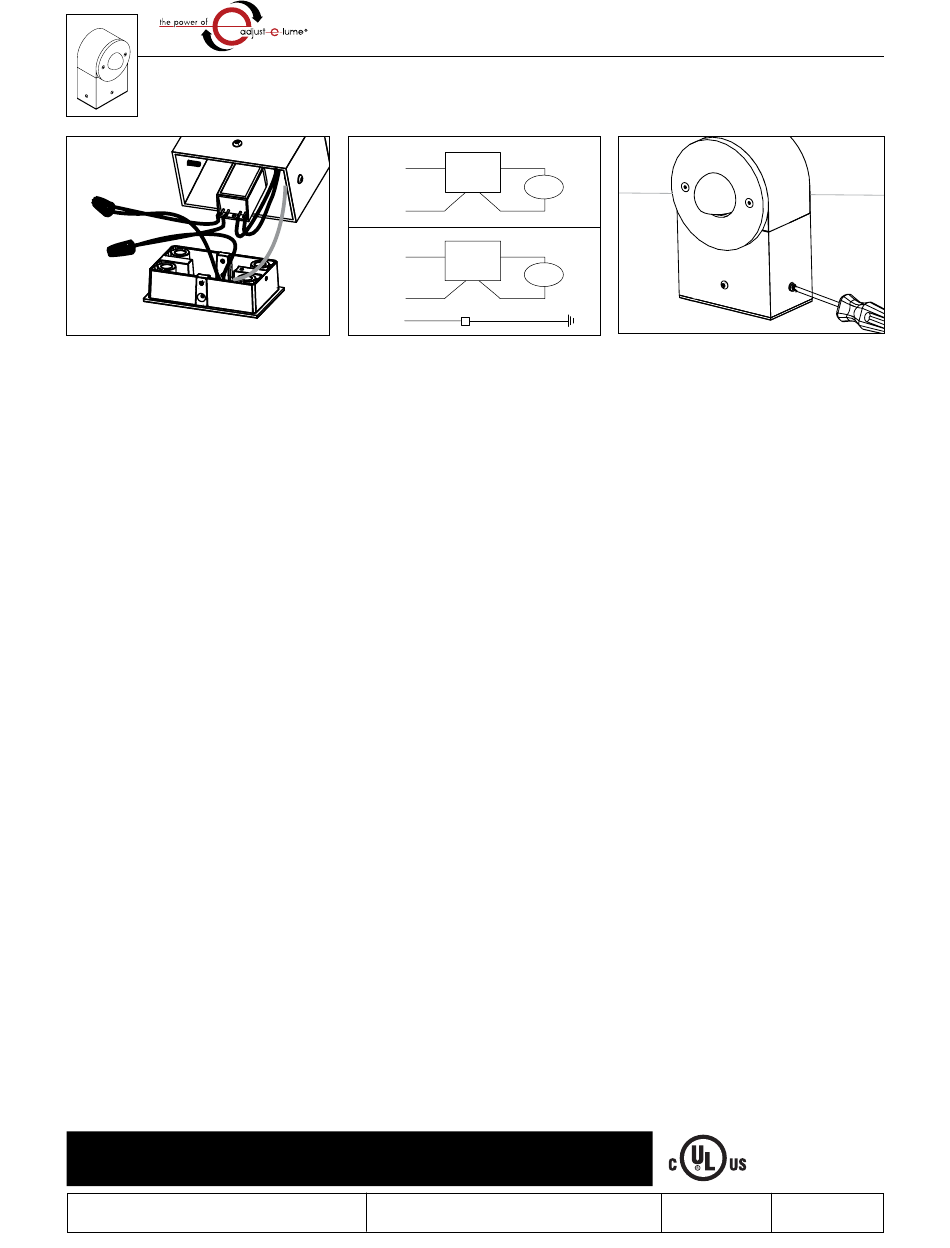

7. Pull branch circuit wires necessary for
installation (By Others) through Power Pipe™.
90° Angle = B
Use waterproof wire connectors (By Others) to
connect transformer primary leads to branch
circuit wires. Connect incoming ground to
ground wire provided in fixture body. See
wiring diagram.
PS-LED
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
& Low Voltage
with
TECHNOLOGY
WIRING DIAGRAM
S000733
TECHNOLOGY
120V 12V
Remote
Transformer
Fixture
COM COM
120V 12V
Integral
Transformer
Fixture
COM COM
GROUND GROUND IN HOUSING
WIRING DIAGRAM
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
PS™ / PSL™
8. Place fixture on anchor base and tighten four (4)
#10-32 stainless steel button head cap screws
using a 1/8" Allen wrench.
RELEASE DATE REFERENCE NUMBER
11-30-16 INS000733.1
