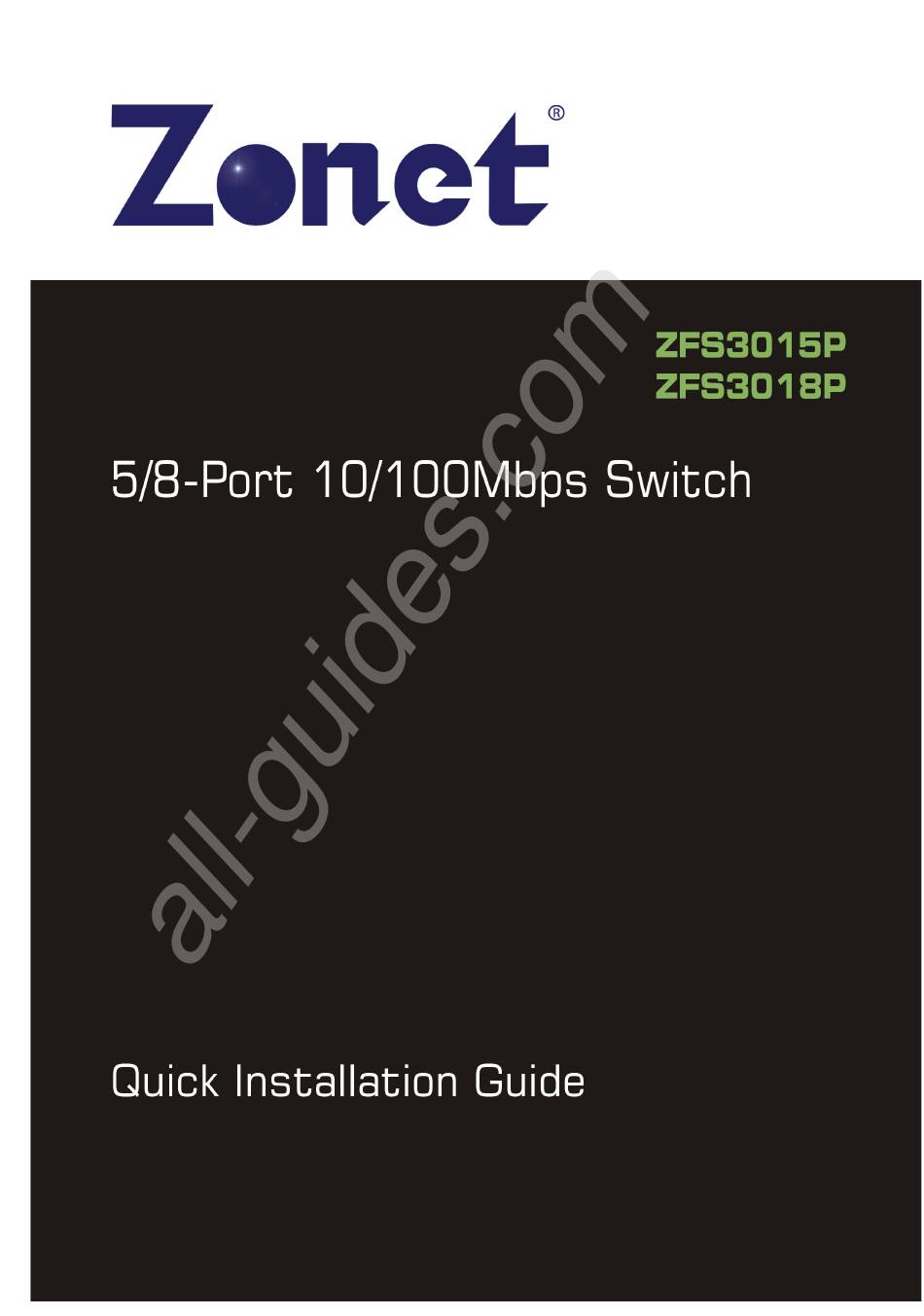

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 Status Operation Power Green Steady: Power is ON Steady: Network cable connected and connection established LNK/ACT Green Flash: Data packets are transmitting Off: Network cable is unplug Diagram a. ZFS3015P Note: Power Connector is on the marked side of ZFS3015P...
- Page 3 All manuals and user guides at all-guides.com b. ZFS3018P Note: Power Connector is on the marked side of ZFS3018P a. ZFS3015P 5 RJ-45 ports b. ZFS3018P 8 RJ-45 ports...
- Page 4 All manuals and user guides at all-guides.com 1. Connect the provided power adapter to the Power connector of the ZFS3015P / ZFS3018P 2. Connect your network devices to the RJ-45 ports of the ZFS3015P / ZFS3018P with UTP/STP Category 3/4/5 cables •...
- Page 5 All manuals and user guides at all-guides.com 1. Check the power adapter and power wall-jet to make sure they are function properly. Check if the switch is turned-ON and power LED is steady. 2. Check all cable connections between computer and the switch to make sure they are connected properly.
