ILLUMINATE THE SOUL
INSTALLATION INSTRUCTIONS
CRESCENT MOONRING
SHAPES W/ ROTATABLE CONNECTORS
MR1/MR1.5/MR3-RQ | Suspended, Ceiling | LED
A
1035 22nd Avenue, Unit 1
Oakland, CA 94606
P
510.489.2530
E
TalkToUs@alwusa.com
W
alwusa.com
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALW MR1

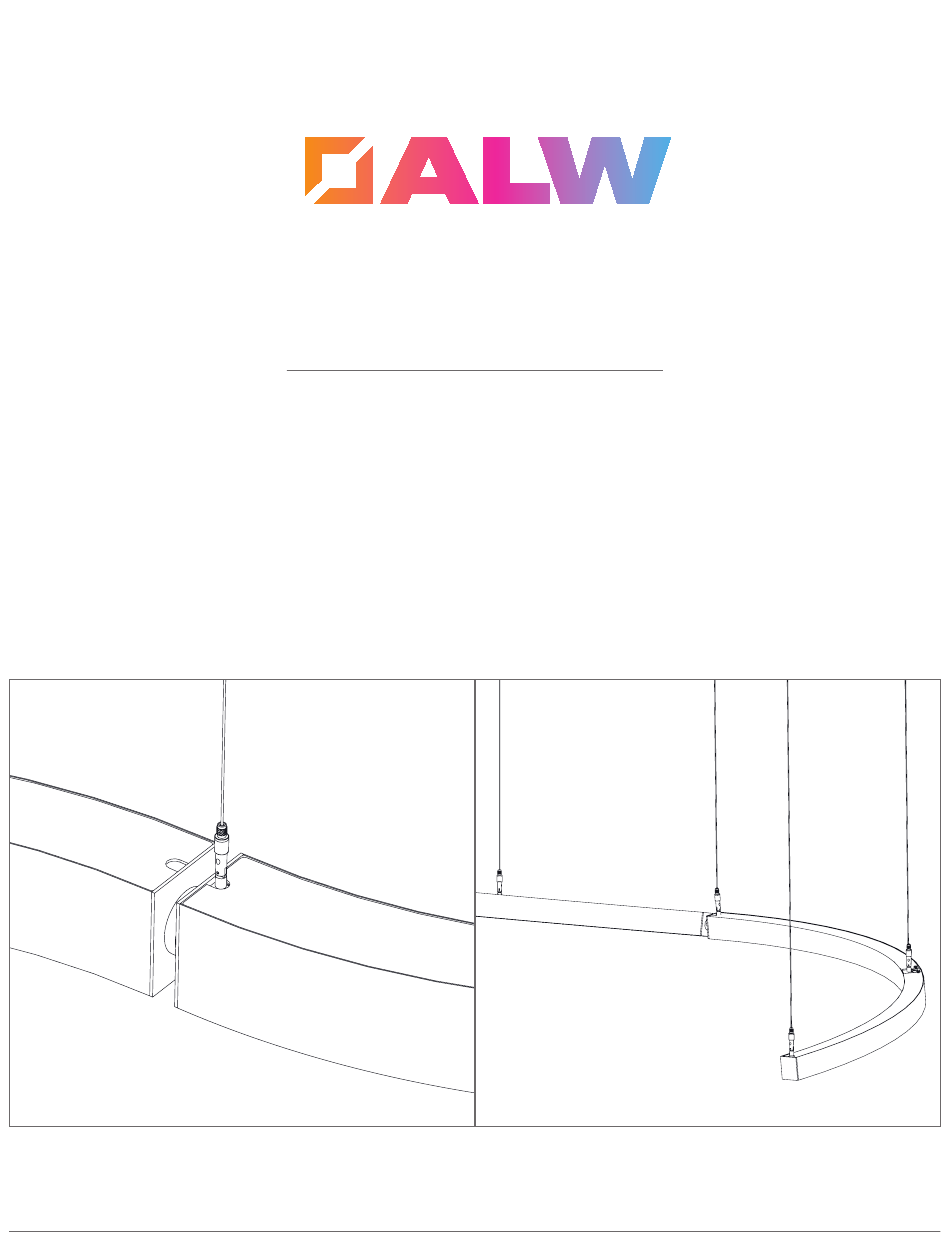

  • Page 1 ILLUMINATE THE SOUL INSTALLATION INSTRUCTIONS CRESCENT MOONRING SHAPES W/ ROTATABLE CONNECTORS MR1/MR1.5/MR3-RQ | Suspended, Ceiling | LED 1035 22nd Avenue, Unit 1 Oakland, CA 94606 510.489.2530 TalkToUs@alwusa.com alwusa.com...
  • Page 2 Safety & Warnings! 1. Read all instructions. 2. Install in accordance with national and local electrical code regulations. 3. This product is intended to be installed and serviced by a qualified, licensed electrician. 4. Only install with a compatible Class 2 LED Constant Current Driver. This product has not been evaluated for use when connected to an LED driver that does not comply with Class 2 voltage and energy limited supplies.
  • Page 3: Table Of Contents

    Table of Contents Luminaire Overview Diagrams Included Parts (by others) Tools Required Quick Specs Installation Prepare Ceiling Fixture Ceiling Mount Wiring Diagrams Troubleshooting MR-RQ Installation Guide 3 of 12 102-000031- IG071719-B.0...
  • Page 4: Luminaire Overview

    Overview: ⁄ " 2" Each mark Connector rotates max 20° represents 5˚ MR1.5 ⁄ " ⁄ " Each mark represents 10º Connector rotates max 20° Included: 5/64" Hex Key Canopy Assembly Susp. Bullet and Ceiling Fitting Suspension Cable Quick Specs...
  • Page 5: Installation

    Installation: Prepare Ceiling See Final/Record Drawings for Mounting Locations Install Canopy Fitting - Framing See final/record drawings for mounting locations. Install Canopy Fittings may be installed directly into framing with framing, strut or 1/4-20 ceiling rods to match mounting appropriate hardware. locations.
  • Page 6: Fixture

    Installation: Fixture Connect wires Route Suspension Cable and Attach to Ceiling Connect wires from adjacent section to lever nuts Route Suspension Cable through Suspension Bullet. Ball on the indirect side. Pull lever up, insert wire and end should sit in Suspension Bullet. Screw Suspension Bullet to Ceiling Fitting.
  • Page 7 Adjust fixture to desired angle Cut excess cable/fasten cable gripper Adjust lengths of suspension cables at all locations Cut excess suspension cable and sfirmly tighten on fixture to rotate it at desired angle. Maximum cable gripper cap . rotation of joint is 20°. Tighten set screws Raise Canopy to Ceiling Tighten set screws on connector to secure both...
  • Page 8 DO NOT PINCH OR PUT EXCESSIVE TENSION ON WIRES while installing canopy. Combo Canopy Installation Install Direct Lenses Mount Canopy Bracket to J-Box using provided screws, Note: Carefully angle/snap lenses into fixture, as shown. then secure Canopy over J-Box with finial. Attach bullet because lenses are not adhered to fixture, fixture may CAUTION: Do not pinch wire...
  • Page 9: Ceiling Mount

    Installation: Ceiling Mount (3x) 5/8” Holes Drill Holes in Ceiling & Install Remote Driver J-Box Bring Fixture to Ceiling Drill three 5/8" holes in ceiling at mounting positions (per Bring fixture close to ceiling and align Ceiling Mount final/record drawing). Follow steps 2-3 to install "Canopy" Brackets on fixture with Cleat Bosses.
  • Page 10: Wiring Diagrams

    Wiring Diagrams Traditional On/Off Canopy/Power Feed Brown Driver 1 LED + Black Line Voltage (Hot) Driver 1 LED - Blue Remote LED White Line Voltage (Neutral) Driver J-Box AC 50/60Hz Green Ground Yellow Driver 2 LED + Orange Driver 2 LED - 0-10V Dimming Black Line Voltage (Hot)
  • Page 11 Wiring Diagrams 0-10V Tunable Black Line Voltage (Hot) Brown Driver 1 LED + White Line Voltage (Neutral) Driver 1 LED - Blue Remote LED AC 50/60Hz Green Ground Driver/Decoder Yellow Driver 2 LED + J-Box Orange Driver 2 LED - Grey DIM- 0-10VDC (Dim-)
  • Page 12: Troubleshooting

    Troubleshooting Only a certified electrician can service and troubleshoot product field issues. Always turn main power off before servicing fixture. Full Fixture does not illuminate • Ensure fixture is wired correctly and power is on. • Check that circuit breaker is on and not off or tripped. •...
