- Page 1 INSTALLATION INSTRUCTIONS LIGHTPLANE 1 LP1 | Suspended | LED 1035 22nd Avenue, Unit 1 Oakland, CA 94606 510.489.2530 TalkToUs@alwusa.com alwusa.com...
- Page 2 Safety & Warnings! 1. Read all instructions. 2. Install in accordance with national and local electrical code regulations. 3. This product is intended to be installed and serviced by a qualified, licensed electrician. 4. Only install with a compatible Class 2 LED Driver. This product has not been evaluated for use when connected to an LED driver that does not comply with Class 2 voltage and energy limited supplies.
-
Page 3: Table Of Contents
Table of Contents Luminaire Overview Diagrams Components Parts (by others) Tools Required Quick Specs Installation Prepare Ceiling Standard Suspension Connecting Multiple Sections Troubleshooting Wiring Diagrams LP1 Suspended Installation Guide 3 of 10 102-000028 - IG121818-A.0... -
Page 4: Luminaire Overview

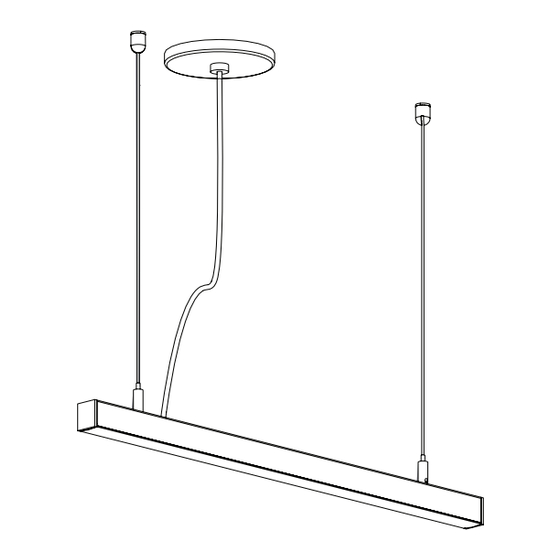

LUMINAIRE OVERVIEW To Class 2 Remote Driver (not pictured) Ceiling Fitting / Suspension Bullet Canopy J-Box Canopy Plenum Cable Suspension Cables Cable Gripper Fixture Body STANDARD SUSPENSION COMPONENTS Suspension Cable Canopy Assembly Suspension Bullet Ceiling Fitting Quick Specs Parts (by others) Tools Required Input Voltage / Frequency: Junction Box... -
Page 5: Installation
Installation: Prepare Ceiling Installation: Standard Suspension [TYPE] See Final/Record Drawings for Mounting Locations Install Ceiling Fitting - Framing ELECTRICAL WIRING: See final/record drawings for mounting locations. Install Ceiling Fittings may be installed directly into framing with [TYPE] framing or strut channels with consideration for alignment appropriate hardware. - Page 6 Installation: Standard Suspension (Cont.) Route Suspension Cable and Attach to Ceiling Raise Fixture to Suspension Cables Route Suspension Cable through Suspension Bullet. Ball Raise fixture to Suspension Cables, and attach fixture by end should sit in Suspension Bullet. Screw Suspension Bullet inserting Suspension Cable through Cable Grippers.
-
Page 7: Connecting Multiple Sections
Installation: Standard Suspension Installation: Connecting Multiple (Cont.) Sections DO NOT PINCH OR PUT EXCESSIVE TENSION ON WIRES while installing canopy. Mount Canopy Bracket to J-Box & Secure Canopy Remove Cover Mount Canopy Bracket to J-Box using provided screws, Carefully remove metal cover to expose joiner sections. CAUTION: then secure Canopy over J-Box with finial. - Page 8 Installation: Connecting Multiple Sections (Cont.) Tighten Joiner Screws Connect Wiring Between Sections Tighten joiner screws, as shown, using a 5/64” Hex Key. Connect wiring quick-connects between sections. Match NOTE: Color combinations may Ensure each section is properly aligned, and that there each color, as shown.
-
Page 9: Troubleshooting
Troubleshooting Only a certified electrician can service and troubleshoot product field issues. Always turn main power off before servicing fixture. Full Fixture does not illuminate • Ensure all wire connections are made. • Ensure fixture is wired correctly and power is on. •... -
Page 10: Wiring Diagrams
Wiring Diagrams (Colors and driver quantity may vary, consult Final/Record Drawing for more details) Canopy/Power Traditional On/Off Feed Brown Driver 1 LED + Black Line Voltage (Hot) Blue Driver 1 LED - Remote LED White Line Voltage (Neutral) Driver J-Box AC 50/60Hz Green Ground...
