Operating Instructions
HDMI wall palte
Model No.:SX-EW11
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this
manual for future reference.
FEATURES
•Incorporates HD Base-T technology
•Following North American wall plate standard(2 Gang indoor outlet)
•Full HD support: 1080p@60Hz@48 b/pixels, 4Kx2K and support 3D
•Extends HDMI and IR up to 328 feet (100 meters) using one CAT5e (or better) cable
•With Infrared control signal passing through function.
•Supports high bit-rate audio formats (Dolby True-HD / DTS Master Audio)
•Both inner and outer power connectors provided
•UTP cable termination follows the standard of IEEE-568B.
•CEC Pass-Through
•DC 5V power supply
•Compliant HDCP
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
1
Advertisement
Table of Contents
Related Manuals for Foxun SX-EW11
Summary of Contents for Foxun SX-EW11
- Page 1 Operating Instructions HDMI wall palte Model No.:SX-EW11 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. FEATURES •Incorporates HD Base-T technology...
-
Page 2: Table Of Contents
Operating Instructions TABLE OF CONTENTS Package Contents Dimensional drawing Speci cations Panel Descriptions Connecting and Operating Typical Application Maintenance Product Service Warranty Packing contents 1) Main Unit: Transmitter&Receiver 2) Power supply DC 5V 2A x 2PCS 3) IR-TX cable x 2 PCS 4) IR-RX cable x 2 PCS 5) #6 x5/8”... -
Page 3: Speci Cations
Operating Instructions Speci cations Operating Temperature Range -5 to +35 C(+23 to +95 F) Operating Humidity Range 5 to 90%RH (No Condensation) 300MHz/9Gbps Video Bandwidth Video Format Supported Up to 1080P and 4Kx2k Connectors HDMI receptacle. RJ45 Power connector terminal Power DC receptacle IR Blaster 1080P 328FT/100m over single CAT5E/6 cable... -
Page 4: Panel Descriptions

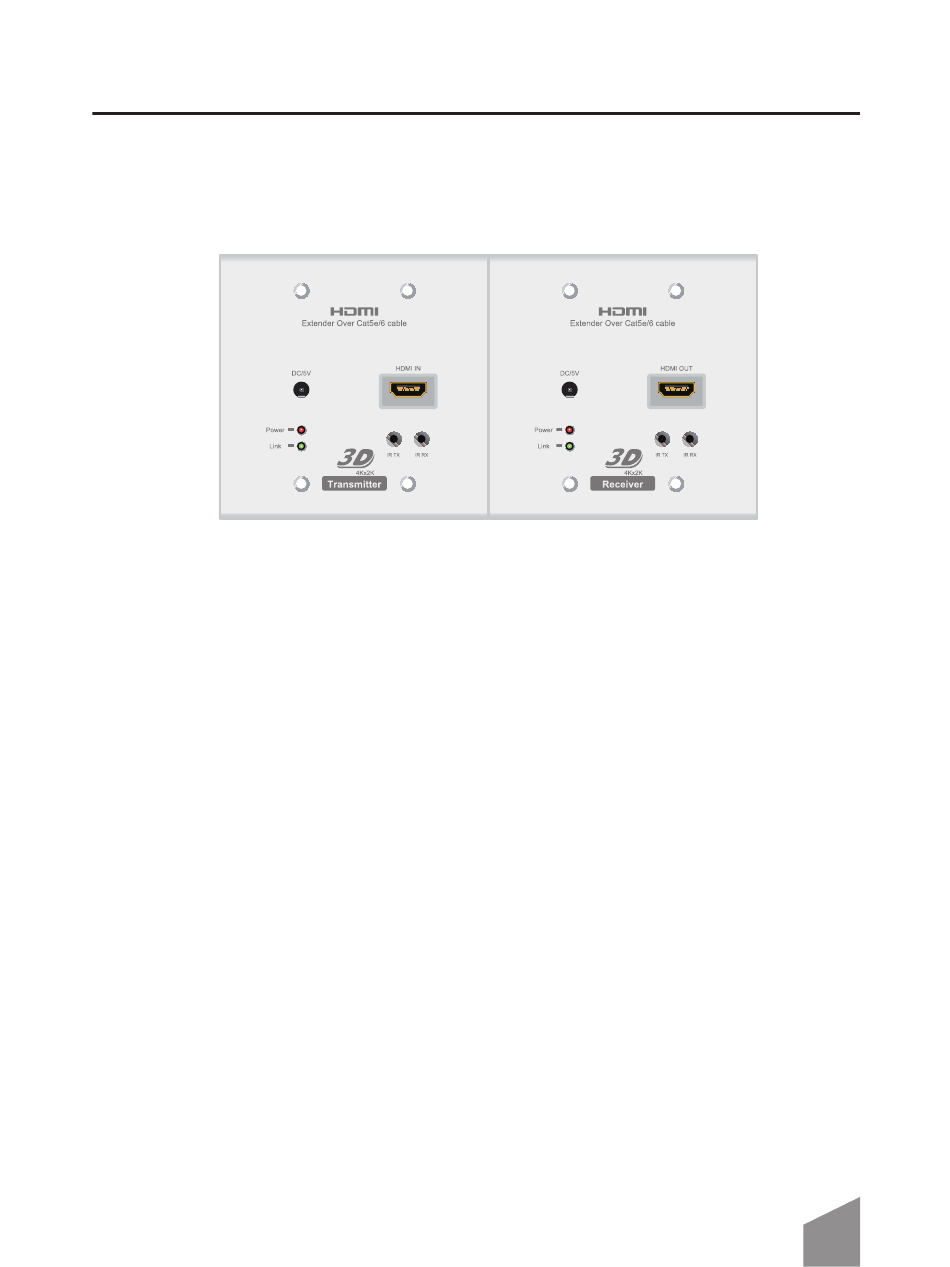

Operating Instructions Panel Descriptions Transmitter Panel Receiver Panel HDMI OUT DC/5V IR TX IR RX 4Kx2K Receiver... -
Page 5: Connecting And Operating
Operating Instructions Power input jack Status of power input:indicates that power is available to the unit Status of link:when ON indicates that an HDBaseT link connection has been established between the two boards over the CAT5e/6 cable. IR-TX port IR-RX port HDMI input port RJ45 connector Power connector:Input DC5V 2A... -
Page 6: Maintenance
Operating Instructions MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE Damage requiring service: a)The DC power supply cord or AC adaptor has been damaged; b)Objects or liquids have gotten into the unit; c)The unit has been exposed to rain;... - Page 7 Operating Instructions LIMITED WARRANTY LIMITS AND EXCLUSIONS 1）This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge,...
