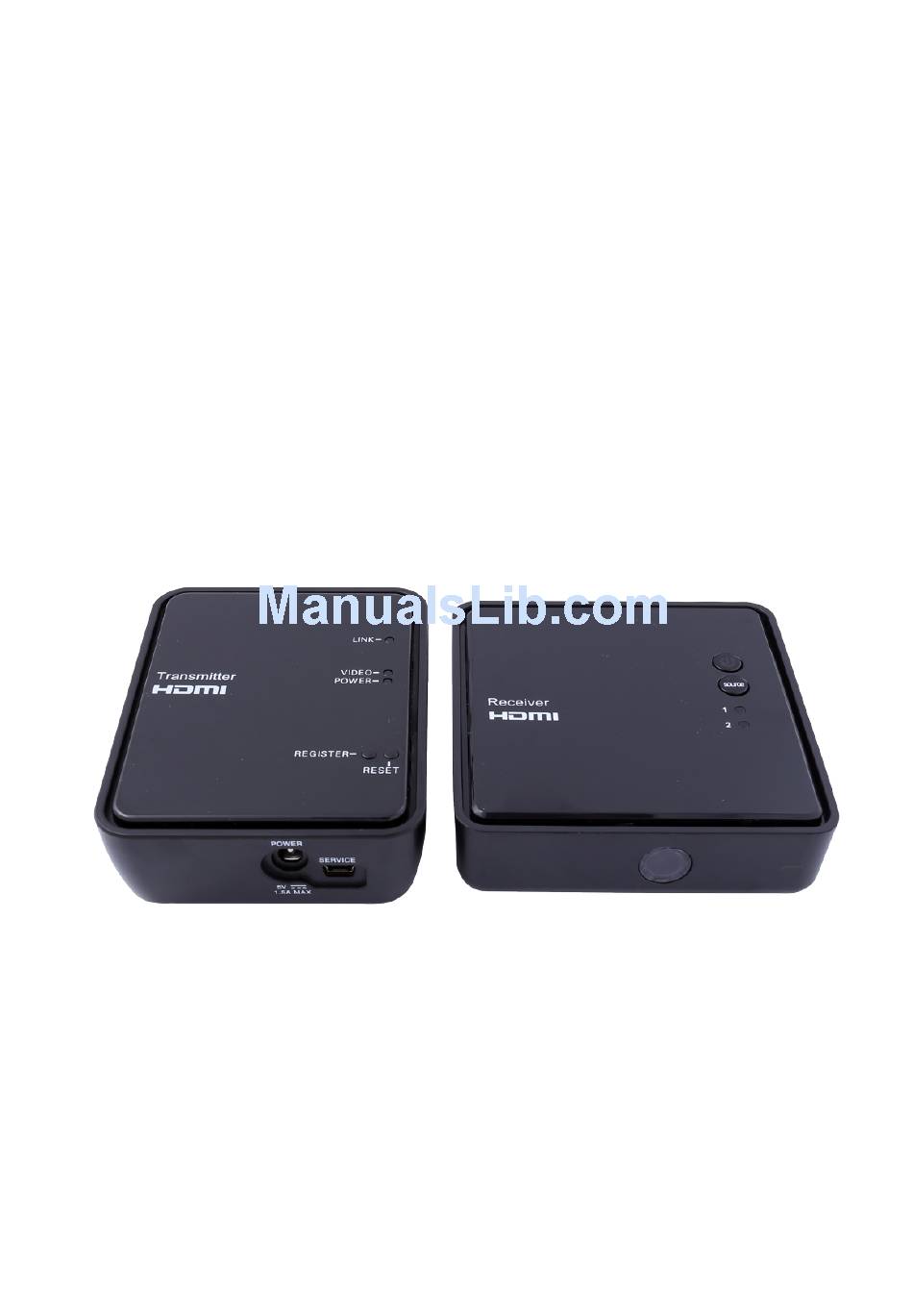

- Page 1 100M Wireless HDMI Extender SX-WHD02 User Guide...
- Page 2 FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Table of Contents Safety Instructions ......................7 Caution ................Error! Bookmark not defined. Overview ........................8 Package Contents ......................9 Product Description ....................10 Transmitter ......................10 Receiver ......................... 11 System behavior ......................12 Supported link modes ....................12 Link drop ........................ 12 LED behaviors transmitter .................. -
Page 4: Safety Instructions
Safety Instructions When operating this equipment, read and follow all the instructions in this manual. Do not open unit. Do not block the air ventilation openings. Use only accessories specified or recommended by shunxun. Do not expose to moisture or excessive heat. Use the mains plug to disconnect the apparatus. -
Page 5: Overview
Overview The wireless extender is an interference-free HD wireless monitor and control for all studio cameras. The wireless extender allows the director to gain total command, maneuverability and synchronization to achieve full creativity out of a given scene. It features HD wireless -with multiple platform support, zero-latency in 100m range. -
Page 6: Package Contents
Package Contents Please verify the following items are in the shipping box , prior to installation of the transmitter and receiver: ITEM DESCRIPTION QUANTITY HD wireless video transmitter HDMI wireless video receiver 5V Power Supply with DC jack 5V Power Supply with USB jack HDMI cable Remote Control... -
Page 7: Product Description
Product Description Transmitter Network status LED Reset button Video status LED 5V DC jack generic connector Power LED - Indicates when MiniUSB port - Used for firmware updates supply voltage is below 4.5V Registration button HDMI input port - For connecting the HD video source to the HD transmitter... -
Page 8: Receiver
Receiver 5 & 6 Network status LED 5V USB jack generic connector Video status LED MiniUSB port - Used for firmware updates Registration button HDMI output port - For connecting the HD video sink to the receiver Reset button... -
Page 9: System Behavior
System behavior Supported link modes The wireless extender supports multicast mode, i.e. it can establish a link between a single transmitter and one or more receivers. Link drop Likely causes for this might be: Exceeded Range - bring systems back in to range to re-establish link. Reset - To re-establish link in case Tx/Rx have been reset, it is necessary to reset both sides when both systems are within 30 meters of each other. -
Page 10: Led Behaviors Receiver
LED behaviors Receiver Network LED Solid - Link established Slow blinking - Establishing link (searching for Tx) Fast blinking - During registration or reaching out of range Off - No registered devices Video LED Solid - Output video signal is locked Off - Power dpwn or Out of range Power LED Solid - Power is applied and the switch is ON... -
Page 11: Installation
Installation Transmitter Transmitter Product Description for port location described in this section. 1. Switch on Source. 2. Connect the transmitter to the HDMI video source 3. Connect the transmitter to the power, using the power supply Receiver Receiver Product Description for port location described in this section. -
Page 12: Remote Control
Remote control Remote Control Hotkeys ADD - Direct access for starting the registration process on the receiver. Delete - will open the "Remove Video Source" in the OSD menu to allow the user to choose to remove devices from the list of registered devices. ... -
Page 13: Registration
Registra on The products require registra on between the transmi er and receiver, in order to establish a wireless link. The registra on process includes keys exchange, for enhanced security and can be managed using the remote control, provided with the product. Sets of transmi er and receiver usually arrive pre-paired, when purchased as pairs. -
Page 14: Registering Without Remote Control
Registering without remote control If there is no transm er registered to the receiver, you should see an OSD menu on the monitor. 1. Power down any pre-registered receiver to prevent any video transmission during the registra on process. 2. Connect the HD Source to the transmi er (the registra on process can be done without HD source in which case an OSD message will appear to no y of missing video source). -
Page 15: Registering Multiple Transmitters To A Receiver
11. Wait l the registra on process is completed. OSD message of " Adding [Tx name]…"and progress bar will be shown during the process. 12. In order to add add onal receiver to the transmi er, Power downs all other receivers, except the latest one. -
Page 16: Unregistering Transmitters
Unregistering transmitters 1. Power on the receivers. 2. Use the remote control at the receiver and Press the “Delete” Hotkey button. 3. Chose the source to remove, using the up, down arrow buttons, and “OK” button. 4. Confirm Removal of the selected source by using the “OK” button, or cancel the selection by using the “Exit”... -
Page 17: Switching Between Transmitters
Switching between transmitters 1. In order to switch between video transmitters, press the “SOURCE” button and a menu will appear. 2. Select the desired transmitter using the up, down arrows, and “OK” buttons. *Note that on Unicast product, the desired transmitter must be disconnected from any another system before being chosen. -
Page 18: Osd - Menu
OSD - Menu The receiver generates OSD-Menu (On-Screen Display). This is used for adding/removing devices and presen ng the link status and technical informa on. OSD - Setup window In order to open the Setup window use the remote control at the receiver and Press the “Menu”... - Page 19 4. A list of all the registered transmitters will pop up. 5. Choose the source to rename using the “Up” and “Down” arrow buttons. 6. Press “OK” to select the source. 7. Choose the characters you wish to modify using the right and left buttons on the remote control, and modify the name using the up, down and “OK”...
-
Page 20: Technical Specifications
Technical Specifications Video 1080p/50, 1080p/60, 1080/59.94i, 1080/50i, 1080/29.97p, 1080/23.98p, , Resolution: 720/59.94p, 720/50p, 525i/59.94, 625i/50, 1080/24p, 1080/24PsF, 1080/23.98PsF,1080/25PsF Frequencies: Non-DFS Frequencies: 5.170~ 5.250 GHz for EU 5.170 ~ 5.250 GHz and 5.735~5.815 GHz for US DFS Frequencies: 5.250-5.330 GHz and 5.490 ~ 5.690 GHz for EU 5.250-5.330 GHz and 5.490 ~ 5.590 GHz and 5.650 ~ 5.690 GHz for US ISM Frequencies: 5.725 ~ 5.875 GHz for EU... -
Page 21: Specifications
Specifications The transmitter and The receiver Transmitter Receiver SX-WHD02 WHD02 HDMI HDMI Video Interface: Automatic frequency selection Frequency mode. Control: Antenna: 2 transmitting 1 Receiving 5 receiving 1 transmitting Internal using on-board RP SMA Internal using on-board RP SMA Connectors... -
Page 22: Troubleshooting
Troubleshooting Registration fails √ Make sure both transmitter and receiver are powered on. √ Make sure the power cable is continuous. √ Make sure that pairing units are the devices currently powered on. √ Bring the transmitter and receiver closer together but with a minimal distance of 1 meter. - Page 23 Other symptoms The receiver keeps outputting a “Searching…” message, and the NETWORK LED is blinking : It should take up to one minute to establish a wireless link. If the link was not established after one minute, verify the transmitter is powered on and not connected to another receiver.
