Summary of Contents for Foxun HDBaseT SX-EX53

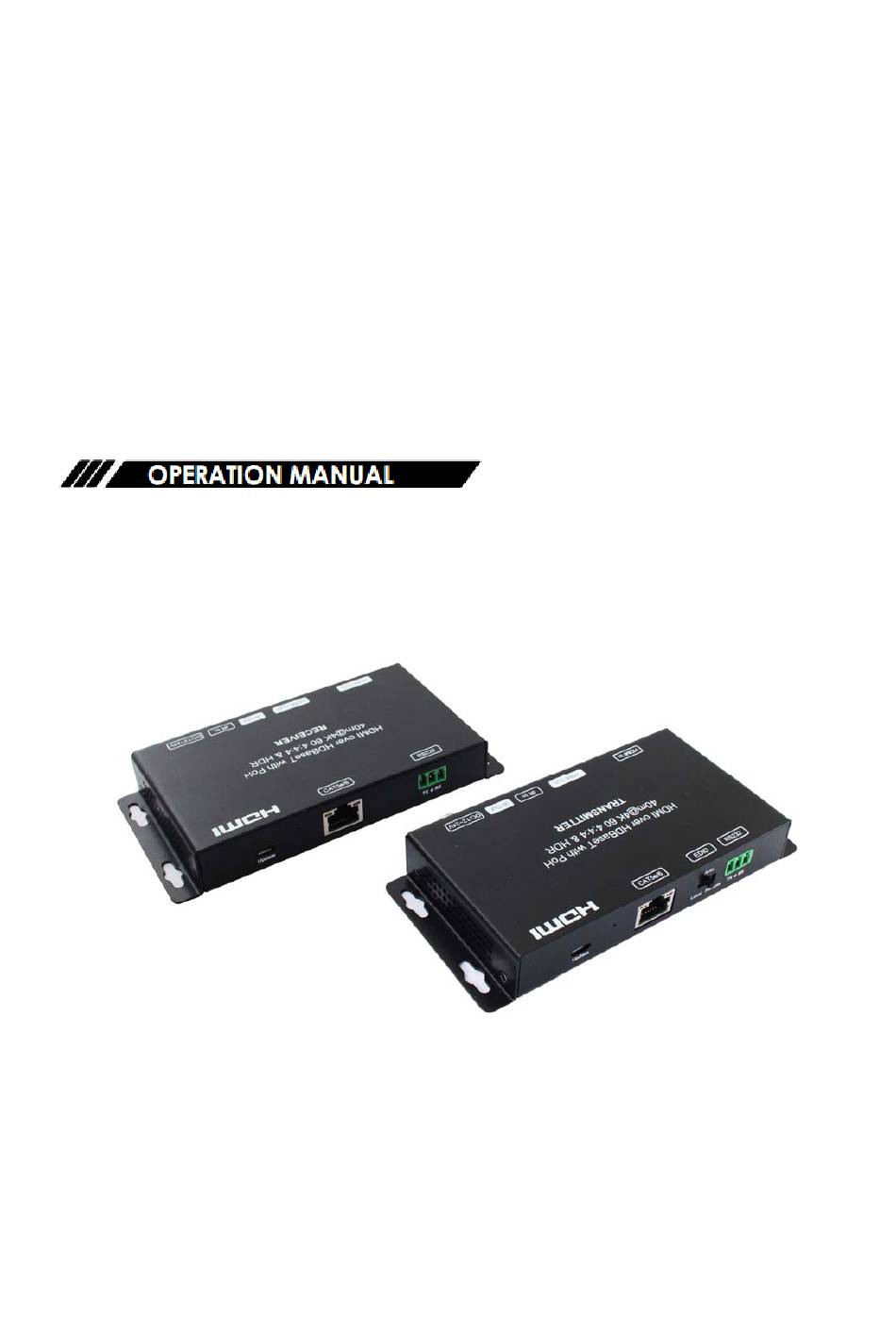

- Page 1 HDBaseT Ultra Slim Extender Kit HDR, 4K@60Hz 4:4:4, up to 40M...
-
Page 2: Safety Precautions
Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. -
Page 3: Table Of Contents
Operating Instruction CONTENTS 1.INTRODUCTION................4 2.APPLICATIONS................. 4 3. PACKAGE CONTENTS..............4 4. SYSTEM REQUIREMENTS............4 5. FEATURES..................5 6. SPECIFICATIONS................5 7. OPERATION CONTROLS AND FUNCTIONS......6 7.1 Transmitter Front and Rear............6 7.2 Receiver Front and Rear Panels............7 8. CONNECTION DIAGRAM............8 9. MAINTENANCE................9 10. -
Page 4: Introduction
Operating Instruction 1. INTRODUCTION This Model allows HDMI signals to be transmitted over a Single CAT5e/6 cable. This solution has the added features of RS232 and 2-way IR control functionality over the same CAT5e/6 cable. It can extend 4K@60Hz HDR 10 over a HDBaseT link and upto 40M ! The slimmest HDBaseT design, making it perfect to mount behind ultra thin TVs. -
Page 5: Features
Operating Instruction 5. Features Bandwidth up to 18Gbps, resolution up to 4k @60hz YUV 4:4:4 Transmit up to 70m under 1080p, 40m under 4k Support HDR10, 3D With 1x looping HDMI out at Transmitter and 2 x HDMI out at Receiver ... -
Page 6: Operation Controls And Functions
Operating Instruction 7. OPERATION CONTROLS AND FUNCTIONS 7.1 Transmitter Front and Rear HDMI In: Connect to HDMI source equipment such as DVD or Blu-ray player HDMI Out: Connect to a HDMI equipped TV/Monitor for display of the HDMI input source signal IR In: Connect to the supplied IR blaster cable for IR signal transmission. -
Page 7: Receiver Front And Rear Panels
Operating Instruction 7.2 Receiver Front and Rear Panels HDMI Out1: Connect to a HDMI equipped TV/Monitor for display of the HDMI input source signal HDMI out2: Connect to a HDMI equipped TV/Monitor for display of the HDMI input source signal IR Out: Connect to the supplied IR blaster cable for IR signal transmission. -
Page 8: Connection Diagram
Operating Instruction 8. CONNECTION DIAGRAM...
