Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
FEATURES
FEATURES
FEATURES
FEATURES
�
Compliant HDCP
�
Uses off-the-shelf gigabit IP switches for extension and distribution
�
Extends 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable
�
Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN
�
Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth
loading
�
Support Point-to-Point, Point-to-Many and Many-to-Many network configuration
�
With IR Control function ,it allows you control back the source at the end of destination
�
Maximum 3 layers of ethernet switches could be passed through
NOTICE
NOTICE
NOTICE
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
over
Ethernet
over Ethernet
over
Ethernet
Ethernet
1
Operating Instructions
Advertisement
Related Manuals for Foxun SX-GES24
Summary of Contents for Foxun SX-GES24
-

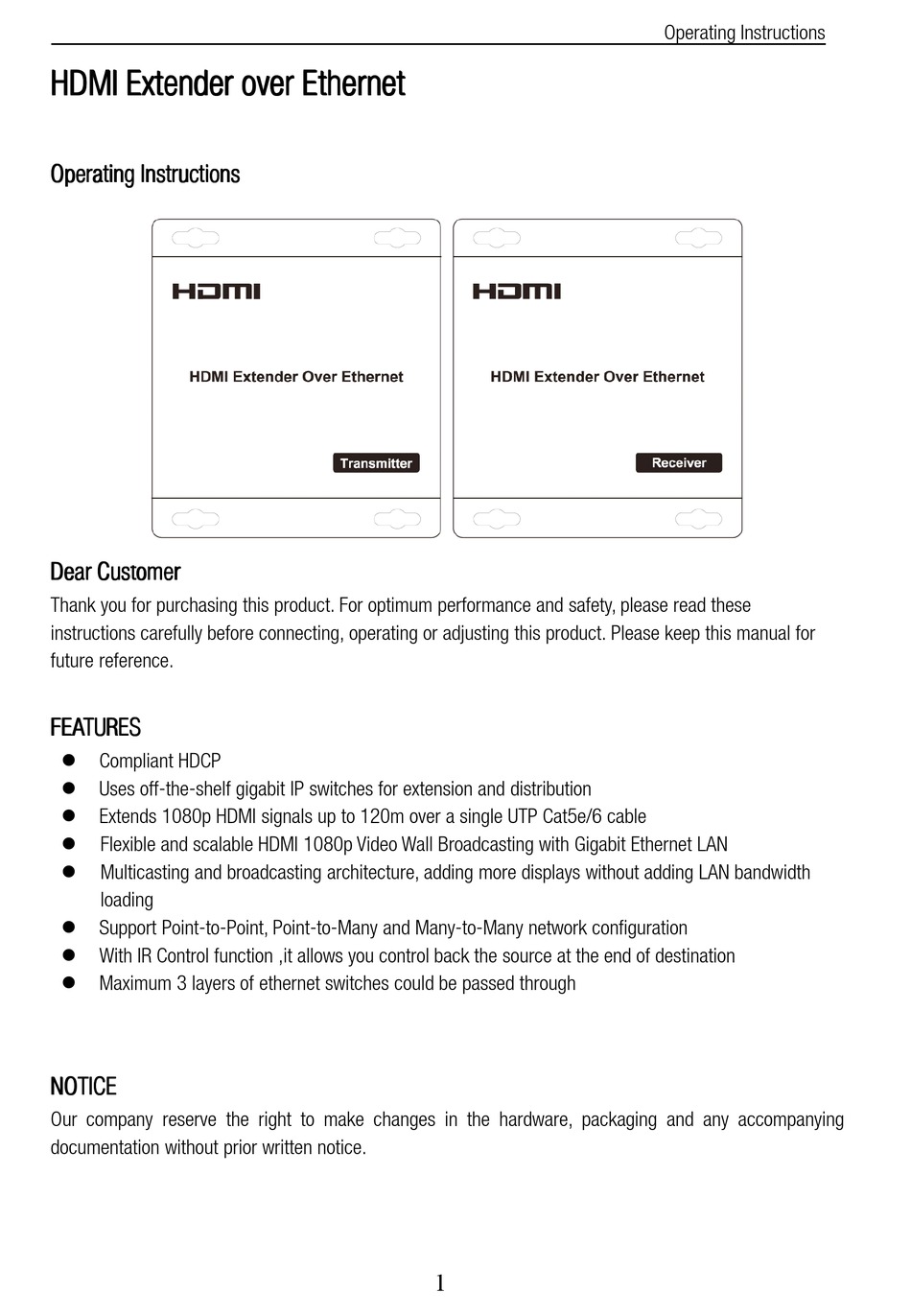

Page 1: Hdmi Extender
Operating Instructions HDMI Extender over Ethernet HDMI HDMI HDMI Extender Extender Extender over over over Ethernet Ethernet Ethernet Operating Operating Instructions Instructions Operating Operating Instructions Instructions Dear Dear Customer Customer Dear Dear Customer Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 2 Operating Instructions TABLE TABLE TABLE OF OF OF OF CONTENTS CONTENTS CONTENTS TABLE CONTENTS Specifications Package Contents Panel Descriptions Connecting and Operating Typical Application Maintenance Product Service Warranty SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS Operating Temperature Range -5 to +35℃(+23 to +95℉) Operating Humidity Range 5 to 90%RH (No Condensation) Input Video Signal...
- Page 3 Operating Instructions PANEL PANEL DESCRIPTIONS DESCRIPTIONS PANEL PANEL DESCRIPTIONS DESCRIPTIONS Transmitter Panel Indicator of power input Status of signal connection HDMI input Ethernet port IR-TX port Reset button Power input port...
- Page 4 Operating Instructions Receiver Panel Indicator of power input Status of signal connection HDMI output Ethernet port IR-RX port Reset button Power input port...
- Page 5 Operating Instructions TYPICAL TYPICAL TYPICAL A A A A PPLICATION PPLICATION PPLICATION TYPICAL PPLICATION 1) 1) 1) 1) One One to to to to One Transmitter Receiver Transmitter Transmitter Transmitter Receiver Receiver Receiver CONNECT OPERAT CONNECT CONNECT CONNECTING ING AND AND OPERAT OPERAT OPERATING...
- Page 6 Operating Instructions 2). 2). 2). 2). One One to to to to more more more more CONNECT CONNECT OPERAT OPERAT CONNECT CONNECTING ING AND AND OPERAT OPERATING 1. You can use common IP switch to work with SX-EX22 for one to more connection. 2.
- Page 7 1. For more to more connection , SX-EX22 has to work with HDMI smart matrix (SX-GES24). 2. Connect HDMI TX ports with SX-GES24 ports, also connect HDMI RX ports with SX-GES24 ports. (for SX-GES24, any one of 24 ports can be set "input port"or "output port" by yourself. Please refer to page 9.10.
- Page 8 Operating Instructions 3. Setup HDMI TX and HDMI RX A HTTP server is embedded in each TX and RX. You can setup the HDMI extender via web browser. The default IP address of the TX is 192.168.168.55 and the RX is 192.168.168.56. The default IP address will not be changed no matter what you assign the device IP address (one TX to many RX or many TX connect to many RX, IP and MAC address must be different), IP:192.168.168.XX...
- Page 9 Operating Instructions 4: 4: 4: 4: Login Login Login Login in in in in Default IP address for Switch ： 192.168.168.254，Username：admin, Password：admin，connect your PC with IP Switch, revise your PC's IP address to be in the same segment with IP Switch, Login in IE :192.168.168.254 5: 5: 5: 5: Input Input...
- Page 10 Operating Instructions 6: 6: 6: 6: Setting Setting Setting your your Switch Switch Setting your your Switch Switch Select "Port Config "in Ports Tool, You can set every "Output" port to display and any "Input"port which connected to HDMI Extender TX. For example, if you need all the output ports to display the same input source which connected to port 1 , you can set it as below picture : 6.
- Page 11 Operating Instructions 8. 8. 8. 8. Upgrade Upgrade Upgrade Upgrade your your your your device device device device Select "Upgrade Firmware" in System tools, you can upgrade the device's software . Restore Restore equipment equipment default default Settings Settings Restore Restore equipment equipment default default Settings...
- Page 12 Operating Instructions MAINTENANCE MAINTENANCE MAINTENANCE MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT PRODUCT SERVICE SERVICE PRODUCT PRODUCT SERVICE SERVICE Damage requiring service: 1) Damage Damage Damage requiring requiring requiring service: service:...
