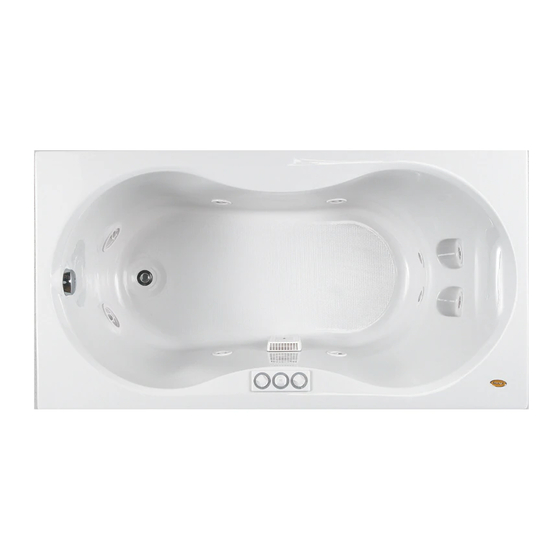

Summary of Contents for Jacuzzi Espree Series

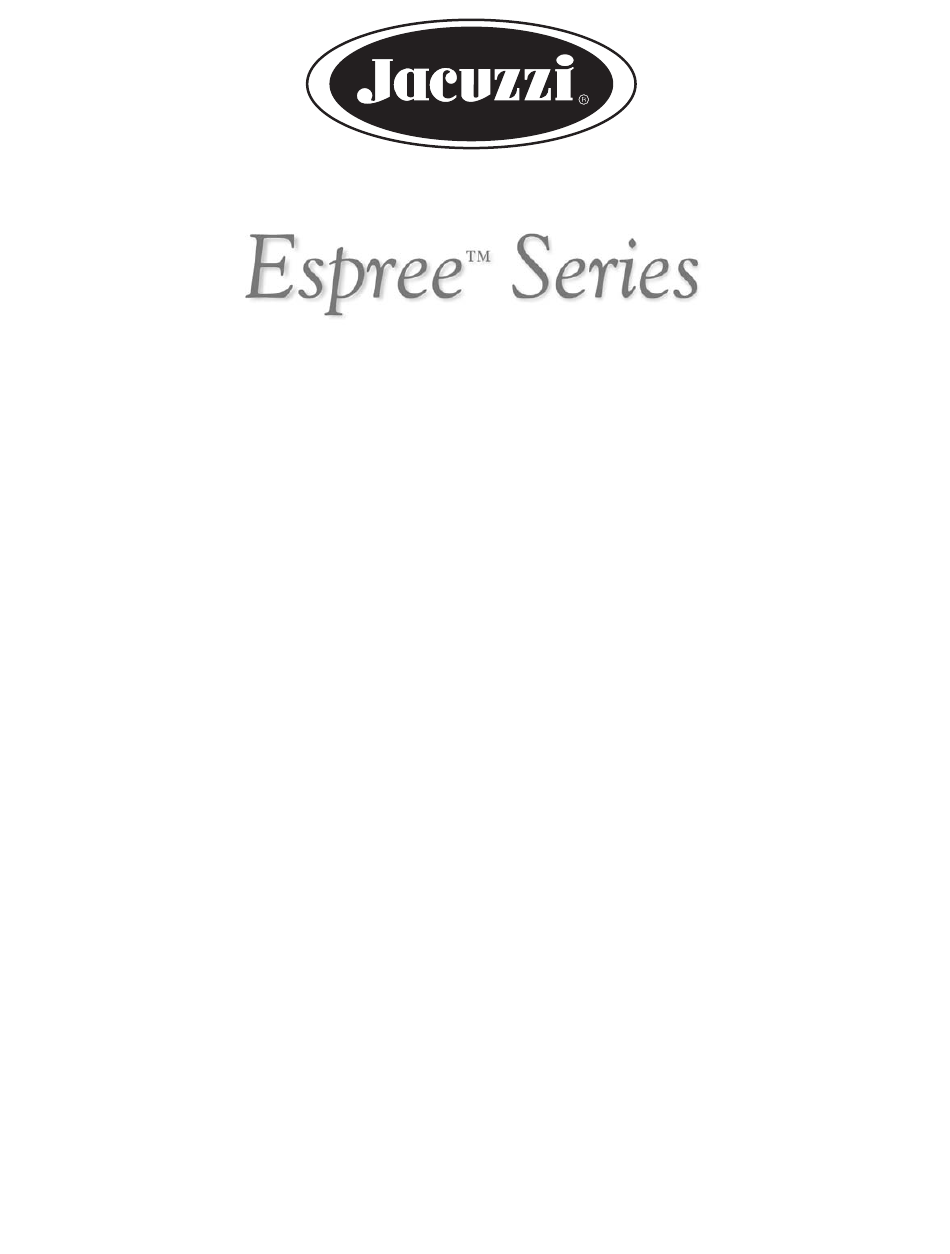

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Installer: Leave this manual for homeowner. Homeowner: Read this manual and keep for future reference. ©2003 Jacuzzi Whirlpool Bath U961000F 12/04...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS CAUTION: TEST THE GROUND FAULT CIRCUIT INTERRUPTER PROTECTING THIS APPLIANCE PERIODI- CALLY IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS. WARNING: RISK OF ACCIDENTAL INJURY OR DROWNING; CHILDREN SHOULD NOT USE HYDROMAS- SAGE BATHTUB WITHOUT ADULT SUPERVISION.
- Page 3 Note: This is a professional grade product. A knowledge of construction techniques, plumbing and electri- cal installation according to codes are required for proper installation and user satisfaction. We recom- mend that a licensed contractor perform the installation of all Jacuzzi Whirlpool Bath products. Our war- ranty does not cover improper installation related problems.
-
Page 4: Table Of Contents
NOTE: To obtain a referral for a service agent in your area call 800-288-4002 . You may also visit our web site at http://www.jacuzzi.com/. To find the service agent listing, click on For The Trade. Then click on Electrical/Mechanical Service Agents. -
Page 5: Specifications
Jacuzzi Whirlpool Bath is not responsible for any defect that could have been discovered, repaired, or avoided by following this inspection and testing procedure. -
Page 6: Installation
815 Satin Nickel 969 Oyster 826 Brushed Nickel 826 Brushed Nickel 827 Chrome 827 Chrome 829 PVD Brass 829 PVD Brass 898 Brushed Chrome 898 Brushed Chrome 845 Oil Rubbed Bronze 845 Oil Rubbed Bronze Jacuzzi Whirlpool Bath© U961000F 12/04... -
Page 7: Roughing-In Reference
2. *Add 1/4" to this dimension when roughing-in for 3-wall niche. 3. Measurements inside each unit represent cutout in floor to allow for drain/overflow. 4. All measurements are in inches. To convert to millimeters, multiply inches by 25.4. Jacuzzi Whirlpool Bath© U961000F 12/04... - Page 8 2. All measurements are in inches. To convert to millimeters, multiply inches by 25.4. 6060 CUTOUT 6032 CUTOUT 57-7/8" 57-7/8" 30" 4" DRAIN 2" 90° 90° 1/2" 58" ESPREE 6032 DROP-IN CUTOUT 49-3/4" ESPREE 6060 WITHOUT SKIRT Jacuzzi Whirlpool Bath© U961000F 12/04...
-
Page 9: Framing And Support
OPTIONAL TILE FLANGE KIT SEMI-SUNKEN TYPICAL FLANGE MOUNTING DETAIL TILE STUD CEMENT CAULKING BOARD TILE ADHESIVE FLANGE ATTACH WITH SCREWS PROVIDED SHIM IF NECESSARY TO FILL GAPS STUD 1/8" GAP BETWEEN STUD AND FLANGE FLANGE Jacuzzi Whirlpool Bath© U961000F 12/04... -
Page 10: Service Access
B - Acceptable alternative if access A is not possible C - Optional access for accessory equipment NOTE: Left hand unit access is on the opposite side (mirror Image). SERVICE ACCESS (WITHOUT SKIRT) MOTOR 12" ALTERNATE ACCESS 18" 12" PREFERRED 18" ACCESS Jacuzzi Whirlpool Bath© U961000F 12/04... -
Page 11: Electrical Connections
If an optional timer is desired, one Install a separate 120 VAC 15 AMP dedicated circuit is available from Jacuzzi Whirlpool Bath for 115 VAC with GFCI protection. With a #8 solid copper wire, bond operation. -
Page 12: Plumbing And Water Supply
In the Jacuzzi Whirlpool Bath drain/ responsibility of the installer. Jacuzzi Whirlpool overflow kit, note that the waste flange, strainer, over-... -
Page 13: Operation
If you want a unit designed to continu- FULLY ADJUSTABLE JETS ously hold water, see your Jacuzzi Whirlpool Bath dealer for the complete line of whirlpool spas available. Once the bath is installed, remove any residue or for- SUCTION eign materials left over from construction. - Page 14 Controlling Whirlpool Action The whirlpool action in your bath is influenced by three Close factors – direction of flow, force of water, and force of air. All baths manufactured by Jacuzzi Whirlpool Bath are equipped with fully adjustable PowerPro ® jets, which are adjustable for all three factors.
-
Page 15: Maintenance
LIGHT BULB REPLACEMENT recommended. LOCKING NUT (For additional information about water content, contact us for a copy of the Jacuzzi Water Quality Primer.) LIGHT BULB Lamp An optional lamp kit is available from your Jacuzzi Whirlpool Bath dealer for installation on your bath. -
Page 16: Troubleshooting
Note: If unit is within the warranty period, contact Jacuzzi Whirlpool Bath Service Support at (866) 905-2289 with bath's serial number before work is started. The Serial Number is located on the Specification/Serial Number Plate. See page 13. -
Page 17: Authorized Service
Service Support Department at 1-866-905-2289. For service agent listing, visit our web site at http://www.jacuzzi.com/. To find the service agent listings, click on “For The Trade”. Then click on Electrical/ Mechanical Service Agents. Depending on the problem, click on “Electrical/Mechanical Repairs” or “Finish, Surface or Shell-Related Problems”. -
Page 18: Repair Parts
NOZZLE BHM 8413XXX O RING 8488000 INTERNAL O RING SEAT 8487XXX KNOB 8267XXX JET BODY 8411XXX GRAPHIC RING AIR 8263000 LOCK NUT 8415000 SCREWS (2) 7514000 PANEL, 1 POSITION D851XXX AIR CONTROL ASSEMBLY U767000 SCREWS (4) 9724000 Jacuzzi Whirlpool Bath© U961000F 12/04... -
Page 19: Position Control (Air & Pump/Motor On/Off)
(AIR & PUMP/MOTOR ON/OFF) BEZEL 8247XXX KNOB 8267XXX BUTTON AIR ACTUATOR 8246XXX (MOTOR/PUMP ON/OFF) GRAPHIC RING AIR 8263000 GRAPHIC RING ON/OFF 8262XXX PANEL 2 POSITION 8241XXX BELLOWS C377000 AIR CONTROL ASSEMBLY U767000 CUP C841000 SCREWS (8) 9724000 Jacuzzi Whirlpool Bath© U961000F 12/04... -
Page 20: Htc Jet & Suction Assembly
HTC BODY A320XXX RING BACK-UP SUCTION 2136000 BACKUP RING 1836000 LOCKNUT 1643000 LOCKNUT 1835000 Jet Body BG15000 Stop (Part of Jet Body) Fitting BG00XXX Nozzle Adjustable (Part of Jet Body) Handle BM01XXX Back Massage Jet Assy Jacuzzi Whirlpool Bath© U961000F 12/04... - Page 21 3 POSITION PANEL BUTTON AIR ACTUATOR 8246XXX KNOB 8267XXX (2) BEZEL 8247XXX GRAPHIC RING AIR (2) 8263XXX GRAPHIC RING ON/OFF 8262XXX 3 POSITION PANEL 9224XXX BELLOWS C377000 AIR CONTROL ASSEMBLY U767000 (2) SCREWS (10) 9724000 CUP C841000 Jacuzzi Whirlpool Bath© U961000F 12/04...
-
Page 22: Pump/Motor Assembly, Rapidheat Heater, Union Repair Kit, Air Actuated Switch & Strain Relief
USE INSTALLATION INSTRUCTIONS SUPPLIED WITH PRODUCT. Jacuzzi Whirlpool Bath has obtained applicable code (standards) listings generally available on a national basis for products of this type. It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of the product. -
Page 23: Warranty
NOTICE: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. There are no warranties applicable to Jacuzzi Whirlpool Bath products except as expressly stated herein or as implied by applicable state and federal laws. The Company will not be responsible for any statements or representations made in any form that go beyond, are broader than or are inconsistent with any authorized literature or specifications furnished by the Company. - Page 24 The Company will provide the warranty service described above when the following conditions have been met: the failure is of the nature or type covered by the warranty; the user has informed an Authorized Jacuzzi Whirlpool Bath Service Agent or Warranty Service Department Representative of the nature of the problem during the warranty period;...
