Hollywood Racks
Not to be used on any trailer, fifth wheel or vehicle being towed by another vehicle
Weight Limit: 90 lbs
Maximum capacity: two 2-wheel bicycles (45 lbs each)
Not warranted to be used for carrying electric or motorized bicycles or motorcycles

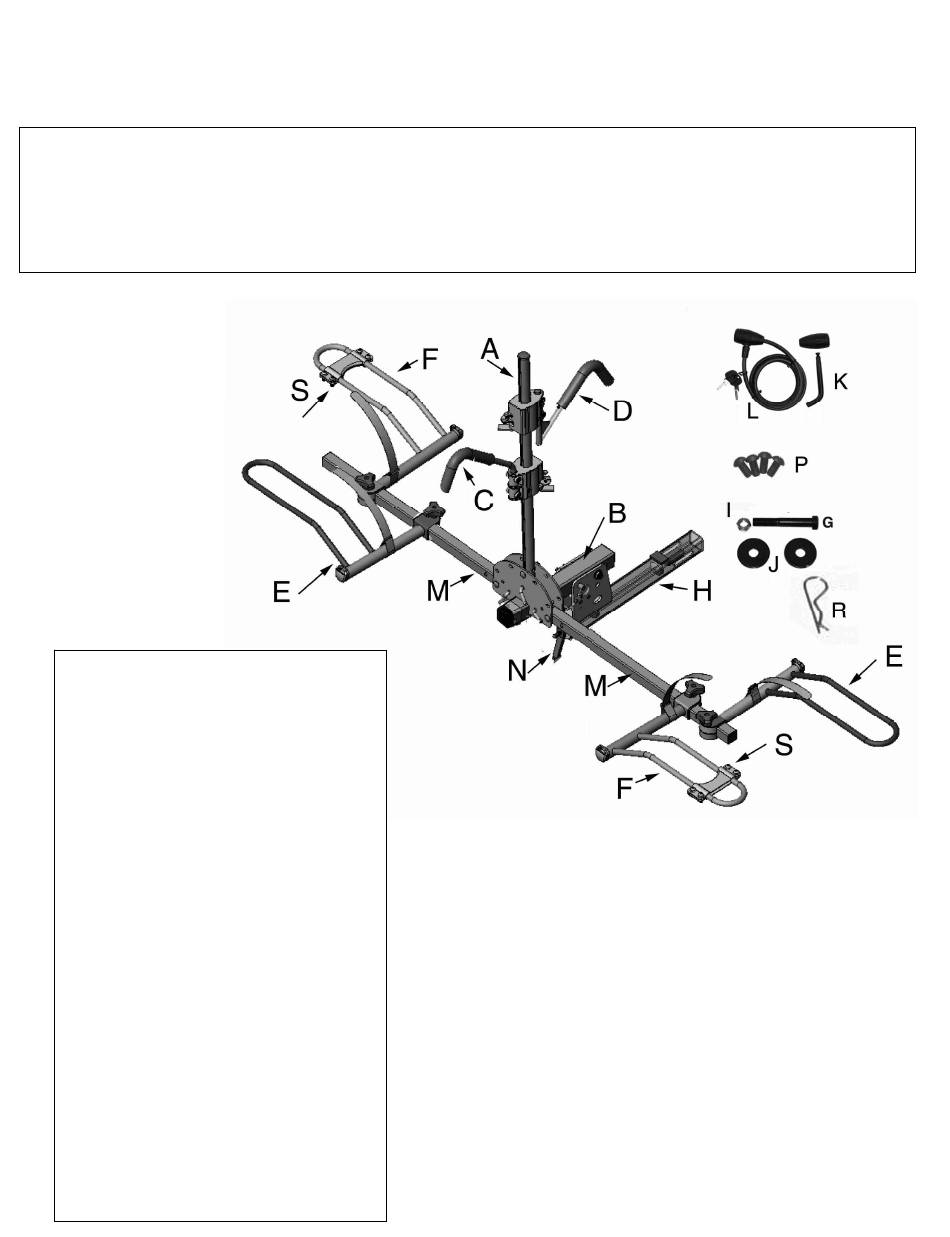

BIKE RACK PARTS LIST
Item
Description
A
vertical post
B
base assembly
B1
Front Cap
C
short hook clamp
D
"Z" hook clamp
E
left wheel holder
F
right wheel holder
G
pivot bolt
H
receiver tube
I
pivot nut
J
pivot washers
K
locking hitch pin
L
security cable
M
wheel support tube
N
extension lever
P
"stop" screws
R
clip
S
Small Wheel Adapter 2
T
hex key
U
Tie down straps
*Extra wide for recumbents
Qty
1
1
1
1
1
*
2
*
2
1
1
1
2
1
1
4
1
4
2
1
2
Model HR1450R Sportrider
Recumbent Hitch Rack
for 2" hitches only
A
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hollywood Racks Sportrider HR1450R
Summary of Contents for Hollywood Racks Sportrider HR1450R
- Page 1 Model HR1450R Sportrider Recumbent Hitch Rack Hollywood Racks for 2” hitches only Not to be used on any trailer, fifth wheel or vehicle being towed by another vehicle Weight Limit: 90 lbs Maximum capacity: two 2-wheel bicycles (45 lbs each)
- Page 2 Assembly Instructions: Tools Required: Two 8” adjustable wrenches or equivalent, Phillips screwdriver. For ease of assembly, we suggest that you use your vehicle’s hitch. 1: Assemble Receiver Tube to Base Assembly 1. Install your receiver tube H into the hitch. Unlock hitch pin K and insert it through hole in the hitch and the rack.
- Page 3 Fig. 2a 2: Install Wheel Holders: Rotate and remove L pins from holes A. Rotate wheel tubes to a horizontal position, then replace L pins into After installing wheel holders, install the “stop” holes B as indicated. screws (item P) into the bottom of the wheel tubes as indicated in Figure 2d &...
- Page 4 4: Installation and operation of Clamp System Position the first frame hook on top of the round vertical post facing the vehicle. Squeeze the lever and the tab together, so that the lever is all the way up (engaged). Now wiggle the plastic housing down onto the tube Fig.
- Page 5 Step 7: Installing bikes on the rack The bikes should be mounted from inside (1 bike) to the outer bike. The bikes should always be positioned so that the lowest point on the bike frame’s top tube is close to the vertical post In the case of long wheel base recumbents, wheels must not exceed width of side view mirrors.
- Page 6 Hollywood Racks will remedy defects in materials and workmanship by repairing or replacing (at its option) the complete rack or a defective part without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product.
