Hollywood Racks HR1600 Assembly And Installation Manual

Rv rider e-bike hitch rack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hollywood Racks
For use on 2" (min. Class III) hitches
only*. Do not use a 1 ¼" - 2" hitch
adapter. See below for other
restrictions.
Maximum weight per bicycle is 80 lbs.
Maximum bicycle wheelbase 60".
Fits up to 3" wide tires. For fat tire
models, please see page 10.
(see page 8 for bike frame fit notes)
Not intended for use with motorized
bicycles, mopeds or motorcycles
For further video assembly &
installation instructions, please visit
hollywoodracks.com
*For 2.5" hitches, use the Hollywood
Racks hitch adapter HA-2
RESTRICTIONS – PLEASE READ BEFORE INSTALLATION
.
DO NOT USE WITH BUMPER MOUNTED HITCH
RECEIVER ADAPTERS!
RATED FOR USE WITH MOTOR HOMES (CLASS A, B, C), FLAT
TH
TOWING AND 5
WHEELS.
VEHICLE MUST HAVE A MINIMUM CLASS III RECEIVER HITCH. DO
NOT USE A 1 ¼"-2" ADAPTER ON YOUR TOWED VEHICLE.
TH
5
WHEEL REQUIREMENTS:
1. TRAILER HITCH MUST HAVE A MIN. 350 LBS TONGUE WEIGHT CAPACITY
2. DOUBLE AXLE AND 24' IN LENGTH (BOX LENGTH)
3. MINIMUM GVW IS 5000 LBS
4. USE HITCH TUBE "TT" (NO FOLD UP FEATURE) HIGHLY RECOMMENDED.
THIS PRODUCT NOT WARRANTED IF ABOVE RESTRICTIONS ARE NOT
FOLLOWED. NOT WARRANTED FOR USE WITH TOY HAULERS, SINGLE AXLE
TRAILERS, TRAVEL TRAILERS, CAMPING OR POP-UP TRAILERS.

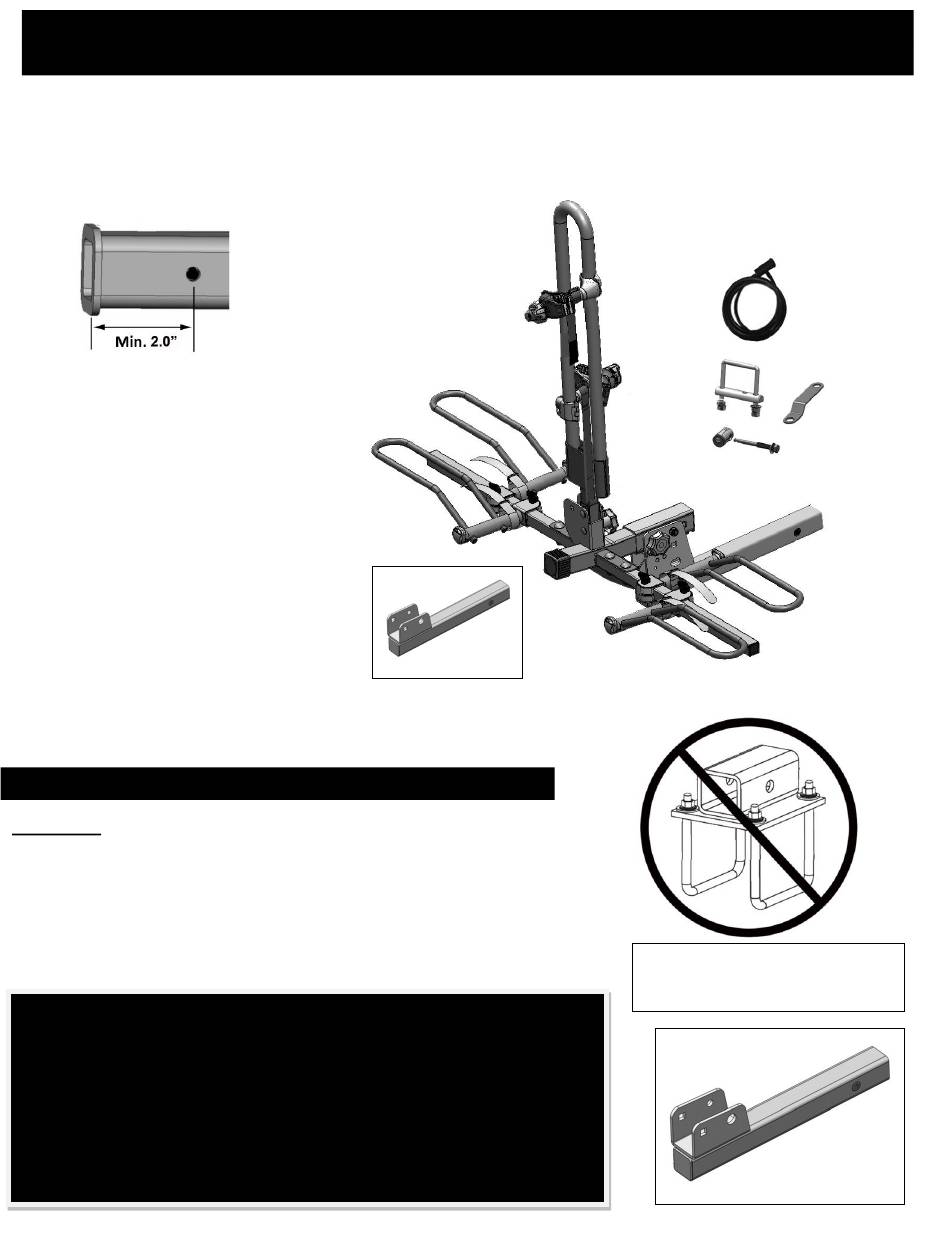

RV Rider E-Bike Hitch Rack Model No. HR1600
Assembly and Installation Guide
Rated for use with motor homes and for flat towing. See
recommendations for use with 5
haulers, travel trailers, pop-up or camping trailers.
IF FLAT TOWING, YOUR TOWED
1
th
wheels. Do not use with toy
PLEASE SEE PAGE 12 (BACK
PAGE) BEFORE INSTALLATION
TRAVEL TRAILER
HITCH TUBE "TT"
