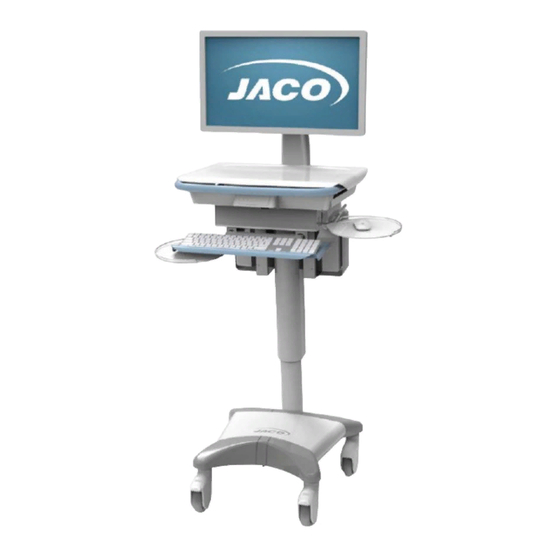

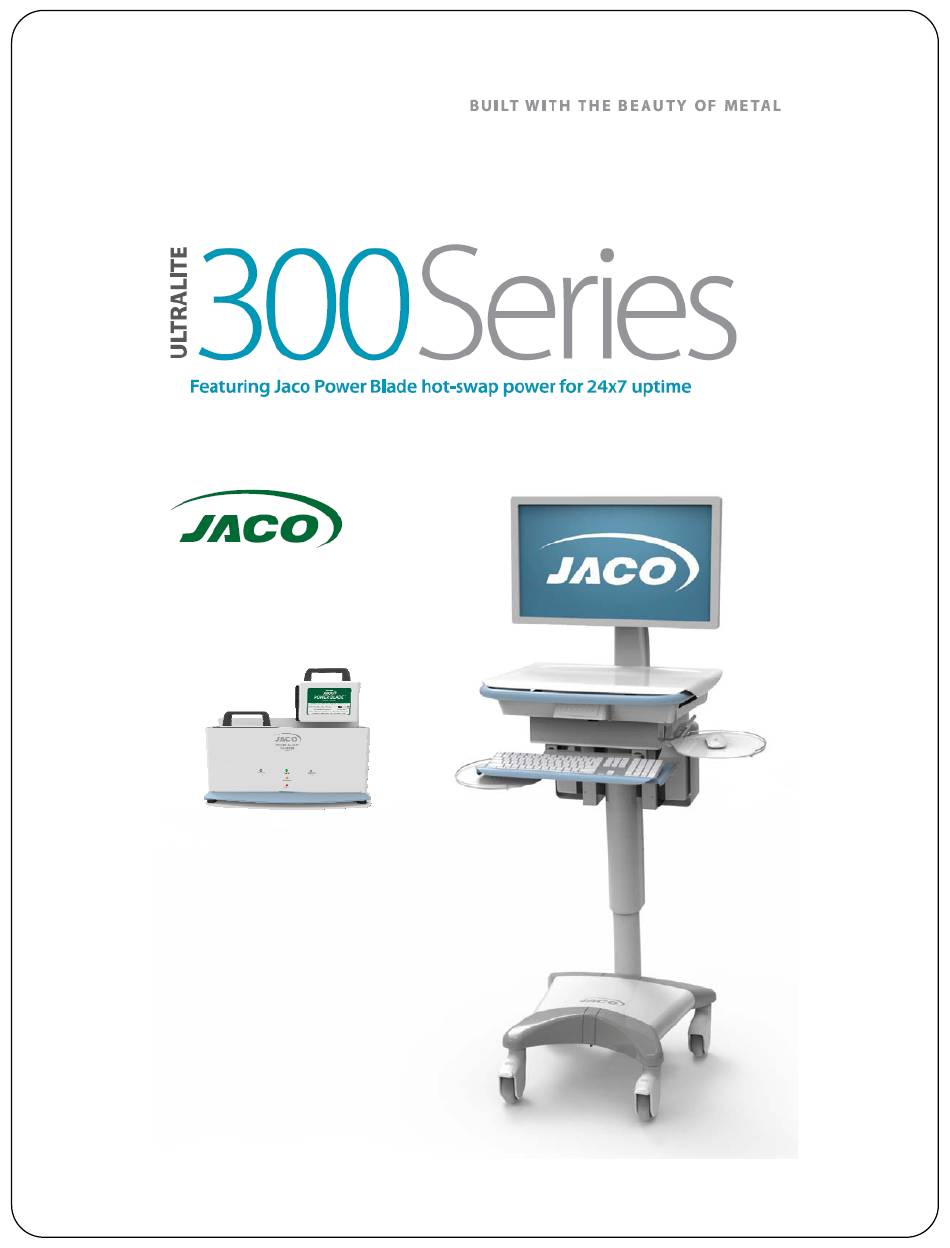

- Page 1 25-0163 Rev 03...
-
Page 2: Table Of Contents
: ................9 NSTALLING TAND AND ONITOR : ..................10 NSTALLING CANNER OUNTS : ............. 10 NSTALLING EYBOARD AND OUSE ONTO THE JACO P ™ W : ............10 PTIONAL ATENTED HEEL TEERING : ......................11 EYBOARD IGHT : ................11 PTIONAL... -
Page 3: 300 Series
NOTE: Top Level Carts above do not include the Laptop, PC or LCD. 51‐4218, Power Blade Charger NOTE: Not included with top‐level Carts, order at least one per Cart The Power Blade Charger can be mounted to the wall or placed on a Table or desk top, whichever fits your workflow. For complete details and instructions, please reference the Power Blade Charger Users Guide that is shipped with each unit. This manual is also available on request. 51‐3829, Power Blade Battery Pack NOTE: Top‐level Carts 310‐L408 & 320‐L408 include (2) 51‐3829 The Power Blade Battery Pack is designed to work with JACO 300 Series Mobile Cart Controller and Power Blade Charger. Operating range 10‐14.4 VDC, 16Ah, 204Wh Capacity 12.8V, 16Ah, 204Wh 51‐3794, Cart Controller Assembly NOTE: Reference only, this is included with all top‐level Carts The Cart Controller Assembly is located at The rear of the mobile cart and allows for (2) Power Blade Battery Packs to be installed, supplying DC power to the equipment. Operating range 10‐14.4 VDC, 10 Amp max ... -
Page 4: Symbol Information
Symbol Information The following symbols are used within this Users Guide and / or on the JACO product. Symbol Meaning This symbol indicates that Caution should be taken. This symbol indicates ATTENTION, consult the accompanying documents Product Labeling Hot‐Swap Cart The Mobile Cart is shipped with a P/N & Serial Number label for tracking and service assistance. This label is located on the rear surface of the Top Assembly. The information on this label is needed when contacting JACO Technical Service. Power Blade Battery Pack The JACO Power Blade Battery Pack includes a P/N & Serial Number label for tracking and service assistance. This label is located on the outside surface on the white raised area of the battery. The information on this label is needed when contacting JACO Technical Service. Power Blade Charger The Power Blade Charger is shipped with a P/N & Serial Number label for tracking and service assistance. This label is located on the rear inside surface of the back panel. This information is needed when contacting JACO Service. For complete details and instructions, please reference the Power Blade Charger Users Guide that is shipped with each unit. This manual is also available on request. ... -
Page 5: General Specification
General Specification Mobile Cart Work Surface Height: 30" to 46" Keyboard Height: 25.5" to 41.5" 310 Laptop Cart ‐ 20" x 18" Work Surface: (Laptop opening 16.5" x 2.75") 320 PC Cart ‐ 20" x 16" Internal Laptop 310 Laptop Cart ‐ 16" x 12" x 2.25" or PC Storage: 320 PC Cart ‐ 16" x 12" x 2.6" Casters: 4" Single Wheel, Front Locking Wheel Base: 16" x 13" x 16" 310 Laptop Cart ‐ 86 lbs (includes 2 Power Blade Cart Weight: Battery Packs & base counterweight) (without options) 320 PC Cart ‐ 91 lbs (including 2 Power Blade Battery Packs & base counter weight) Additional weight may be added based on Cart configuration & options Included in top levels 310‐L408 & 320‐L408 Power Blade Battery: Can be ordered as line item 51‐3829 ... -
Page 6: Power Monitoring & C
Power Monitoring & Control, Wi-Fi Connection The JACO 300 Series Power Blade status, parameters and configuration files are fully accessible via the Cart's built‐in HTML web server. Web pages are viewed via standard internet browsers on a PC, tablet or Smartphone and the Cart is built to standalone so no software needs to be installed on the Cart's computer eliminating "software clash" and possible security issues. For complete details on how to set‐up, access and use the Power Monitoring & Control wireless reporting features, reference our technical guide, JACO 300 Series Power Monitoring & Control which is available through your JACO contact. ... -
Page 7: Safety Recommendations And Proper Operation , Care & M
WARNING: If your JACO Mobile Cart has a Drawer System option, limit weight per drawer to 2 lbs max, close drawers when moving and do not transport at more than a 5-degree slope. WARNING Your JACO Hot-Swap Battery System is designed to operate as a system. - Page 8 Proper Operation, Care & Maintenance Before any maintenance or cleaning, disconnect the Power Blade Charger from the AC wall outlet. JACO products are designed and manufactured to provide years of operation. Take care to use the product as intended and keep clean for best overall performance. Most of the surfaces of your JACO product are finished using a durable, antimicrobial powder coat finish. It is recommended that the surface areas that are in contact with day to day use be cleaned regularly. Always review the cleaning products that are being used and verify that it is safe to use on the powder coat finish. In general, a solution or wipe that is no more than 10% bleach, such as most germicidal wipes used in hospitals, will be acceptable but it is recommended that you consult with JACO Customer Service if you are not sure it is safe to use. Your JACO Mobile Cart does not require any scheduled maintenance however it is good practice to clean the casters and check that the Cart height adjustment is operating correctly at least once a year. Please contact JACO Customer Service as needed for more information in maintaining your JACO Mobile Carts. It is recommended that the Power Blade Charger be located in a clean environment free of liquids, dirt and dust and a max room temperature of 77 deg (25 C). The Power Blade Charger should be reviewed weekly for proper care and cleaning. The bays should be used only for the charging of the JACO Power Blade Battery Packs, any other use may cause damage and will void the warranty. When cleaning the outside of the Cart Controller, Power Blade Battery Pack or Power Blade Charger, a dry cloth will be effective for removing dust or light dirt. If needed, a standard hospital grade germicidal wipe can be used. It is recommended that the wipe contain no more than 10% bleach to prevent possible damage to the powder coat metal surfaces. Inspect the inside bays of the Cart Controller and Power Blade Charger as needed or weekly, remove the Power Blade Battery Packs to inspect the connections. Remove material that may have accidently dropped into the Power Blade Charger or Cart Controller. There should be no reason to clean the inside bay area but if required, make sure the Power Blade Charger unit is unplugged and a damp (not saturated), less than 10% bleach wipe is used, allow ample drying time. If the inside connectors pins do become dirty, do not insert any objects into the contacts. Use compressed air to blow out the build‐ up ensuring proper contact and operation. For more information concerning best cleaning practices, contact our support ...
-
Page 9: Basic Mobile Cart Integration
Basic Mobile Cart Integration & Operation Unpacking & Assembly: Your JACO Mobile Cart may be delivered stacked with one container on top of another. Please use caution when removing the top Cart for unpacking. This is a two person lift and the top Cart must be placed on the ground before unpacking. Once unpacked, there will be minimal assembly required depending on the Mobile Cart model and options you have ordered. Due to the shipping container, the LCD and Stand (for LCD Carts) and the optional Scanner Mounts, are not able to be attached at our factory. Changing the Height Position: Your JACO Mobile Cart is height adjustable for proper ergonomics when used in a standing or sitting position. To change the height simply squeeze the handle located at the right side of the cart (as shown below). While holding the handle tight, the cart height can be changed by pushing downward or pulling upward with both hands on the cart top surface. Release the lever when the cart is in the desired position. Installing your computer or laptop: To install your PC or Laptop, unlock both key‐locks at the rear of the top assembly as shown in the photo below. Both locks must be opened before the top work surface can be pulled forward and removed from the Cart. Once the work surface is removed, the open bay area (shown below) is available for installing your computer or laptop. Route all cables needed for proper operation before installing the work surface and locking in place for security. If using a laptop computer, simply open and allow the display to protrude through the opening in the work surface. ... -
Page 10: Installing Stand And Installing Scannerm
Installing Stand and LCD Monitor: To attach the monitor stand to the Cart you will need a 3/8 nut driver to tighten the 4 nuts. Place the monitor stand so that the 4 threaded studs drop into the 4 holes on the mounting plate that is attached to the rear handle of the Cart. Use the nut driver to install and tighten all 4 nuts. Make sure all 4 nuts are tight before moving on. After the monitor stand is installed on the Cart, attach the LCD to the stand. A Phillips Head or (if added security is needed for the LCD) Torx Head driver is needed to attach the LCD to the VESA Stand, 4 places. Both Phillips and Torx screws are provided. It is recommended that one person hold the LCD while a 2nd person inserts the hardware. Make sure all 4 screws are installed and tightened properly. With the monitor and stand installed on the Cart, the LCD power and signal cables can be installed. Route both cables down through the cable management area of the stand as shown to the left. Pull the cables into the Top Assembly and attach to the PC or laptop computer that will be installed later. ... -
Page 11: Installing Keyboard And Optional Jaco Patented
Use an 11/32 nut driver to tighten. Installing Keyboard and Mouse onto the Cart: When ordering your JACO Cart you have the option of including an integrated mouse and keyboard. If you are adding your own mouse and keyboard, they can be integrated as follows. It is most important that the wires are routed out of the way of the sliding keyboard tray. With each JACO Mobile Cart we include an accessory pack that provides ty‐wraps and Velcro pads along with other helpful items for proper cable management. Use the Velcro pads to fasten the keyboard to the keyboard tray and use the ty‐ wraps to secure the cables. Optional JACO Patented Trac™ Wheel Steering: The optional Trac Wheel is designed to add true steering to the JACO Mobile Cart. With 4 swivel casters, keeping the Mobile Cart moving in one direction may be challenging as the momentum of the Cart will want to continue in the direction of motion. The Trac option can be engaged by stepping down on the green post at the bottom front of the Cart. This activates a traction wheel that will give you control over the direction of the Cart. To disengage Trac, step down on the black post. ... -
Page 12: Keyboard Light
Keyboard Light: The front touch pad numbers are used if an optional locking Drawer system is included but it also offers a Keyboard Light Press the light bulb icon button located on the far right and the keyboard light will turn on. Press again and the light will go off. There is a time‐out so after approximately 20 minutes, the light will automatically turn off. The light can be turned back on immediately if needed. Touch Pad Access, Front of Mobile Cart Optional Locking Drawer Operation: The default combination for the optional Touch Pad e‐locking Drawer system is 4, 1, 2, 3, then press the Unlock Button. This combination can be changed as needed and offers up to 64 unique 4‐digit access codes. To change the pass code, press the numbers 3, 1, 2 then the unlock button, you will hear a "beep" indicating that a new 4‐digit code can be entered. If you enter an unacceptable code, such as 1, 1, 1, 1, you will hear a "buzz" noise indicating the code is not changed. When entering an acceptable new code, you will hear two short "beeps" indicating that the code is now changed. If for some reason the electronic pass code system were to fail, there is a rescue key lock located at the back of the drawer system as shown below. Insert, turn and hold key in the unlocked position to allow the drawers to be opened when by‐passing the electronic drawer lock system. The by‐pass key is not the same key used to access the Top Assembly. Rescue key access on back of drawer/cabinet assembly NOTE: See page 6 of this manual for important safety information regarding the drawer option. ... - Page 13 Power Blade Battery Pack & Cart Controller To insert the Power Blade Battery Pack into the Cart Controller, simply hold by the integrated handle and insert into the Cart Controller using the top and bottom guides for alignment. As you push the Power Blade Battery Pack into position, you will hear a "click" as the connectors engage. To remove, push down and hold the horizontal handle located at the rear of the Cart Controller, and pull the Power Blade Battery Pack out. Note that when two Power Blade Battery Packs are installed in the Controller, you will notice that one rear facing status LED will blink every 6 seconds. This is normal and used as an indicator as to which Power Blade Battery Pack is providing power. If two charged Power Blade Battery Packs are installed, power will switch instantly from one to the other when one Power Blade Battery Pack is removed. LED Charge Capacity Status: The Power Blade Battery Pack ports on the Mobile Cart are labeled as Battery 1 and Battery 2. Each port has two LED indicators that show approximately how much battery charge is remaining. The LED indicators are located at the front and rear of the Cart. This simple LED readout reports approximate battery charge as follows... * 100% to 21% Charge on Battery Pack - Solid Green * 20% to 11% Charge on Battery Pack - Solid Amber * 10% to 1% Charge on Battery Pack - Blinking * No Charge Remaining - Solid...
-
Page 14: Power Blade Battery Pack
Input/output Connections, use only for stated connection: NOTE: Controller board as viewed from inside Cart Top Assembly, rear section Cat5 Cable to front Status Panel Power Inverter Optional for Electronic Locking Drawer System NOTE: Front Status Panel as viewed from inside Cart Top Assembly, front section Optional connection for Cat5 Cable from future additions Controller Board Estimated run‐time per Power Blade Battery Pack: The JACO 300 Series Hot‐Swap Power Blade Battery Packs are designed to be a safe and reliable solution for health care applications. As with any battery system, the amount of time that the battery will power the equipment is dependent on the device (PC, Laptop, LCD Monitor…) power demand. To help reduce power demand and increase the Power Blade Battery Pack runtime, we suggest that you set the monitor to enter sleep mode after 5 minutes of idle time. The following are estimated runtimes per JACO Power Blade Battery Pack, your results may vary. Watts Hours Minutes NOTE: Listed are the estimated runtimes for a single JACO Power Blade Battery Pack. ... -
Page 15: Power Blade Charger
Guide that is shipped with each unit. This manual is also available on request. Agency Certification 51‐4218, Power Blade Charger Safety ‐ IEC 60601, 3rd Edition (60601‐1:2005 A1:2012) IEC 60601‐1 EN/ISO 14971 EMI / EMC (60601‐1:2005 A1:2012) IEC 60601‐1‐2 Means of isolation provided by on‐ board power supply. 51‐3829, Power Blade Battery Pack Assembly IATA ‐ UNDOT 38.3 International Air Transport Association IEC 62133 ‐ Safety Requirement for Cells Containing Alkaline Electrolytes UL 2054 ‐ UL Certification for Primary and Secondary Batteries ’ . AVE A QUESTION RE HERE TO HELP 1‐800‐649‐2278 ALL US AT OR VISIT JACOINC SUPPORT JACO ONSTITUTION RANKLIN ... -
Page 16: Cart
Troubleshooting 1) My Hot Swap Cart has no power, however Cart battery status LEDs in both the front and back of the cart are working. Check the inverter for the green light next to the AC outlet on the inverter. Check all cable connections to and from the Inverter, ensure they are secure. Remove the batteries from the Cart Carrier, replace with 2 fully charged batteries. If there is power, the previous batteries need to be charged. If there is still no power to the computer & LCD, contact JACO for replacement authorization or additional troubleshooting direction. 2) The computer and LCD or laptop is integrated and working without issue however the Mobile Cart battery status LEDs are not working in both the front AND back of cart. Remove and reinstall the same Power Blade Battery Packs that are currently in the Cart, if the LED's still do not light, replace the batteries with 2 fully charged batteries. If the status LED's, are still not showing, you will need to reset the controller unit. To reset, insert a paper clip into the reset port at the back of the Cart as shown. Once paper clip is inserted and the internal button depressed, the unit will beep signifying a system reset. Remove the paper clip and watch for the status LED's to function. ...
