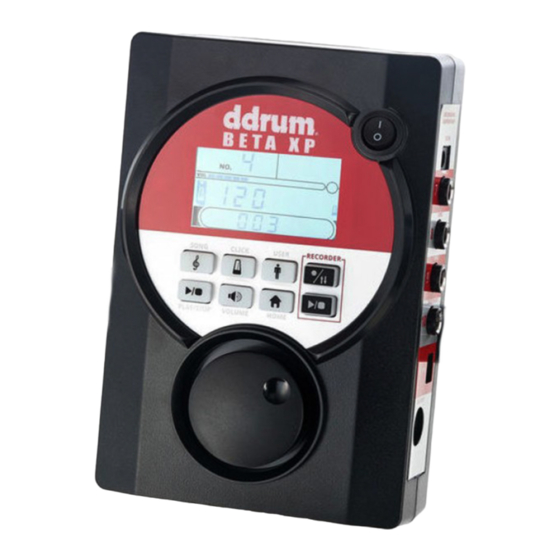

ddrum BETA XP2 Manual

Drum sound module
Hide thumbs Also See for BETA XP2:
Table of Contents

Advertisement

Quick Links

BETA XP2
Drum Sound Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BETA XP2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ddrum BETA XP2

Summary of Contents for ddrum BETA XP2

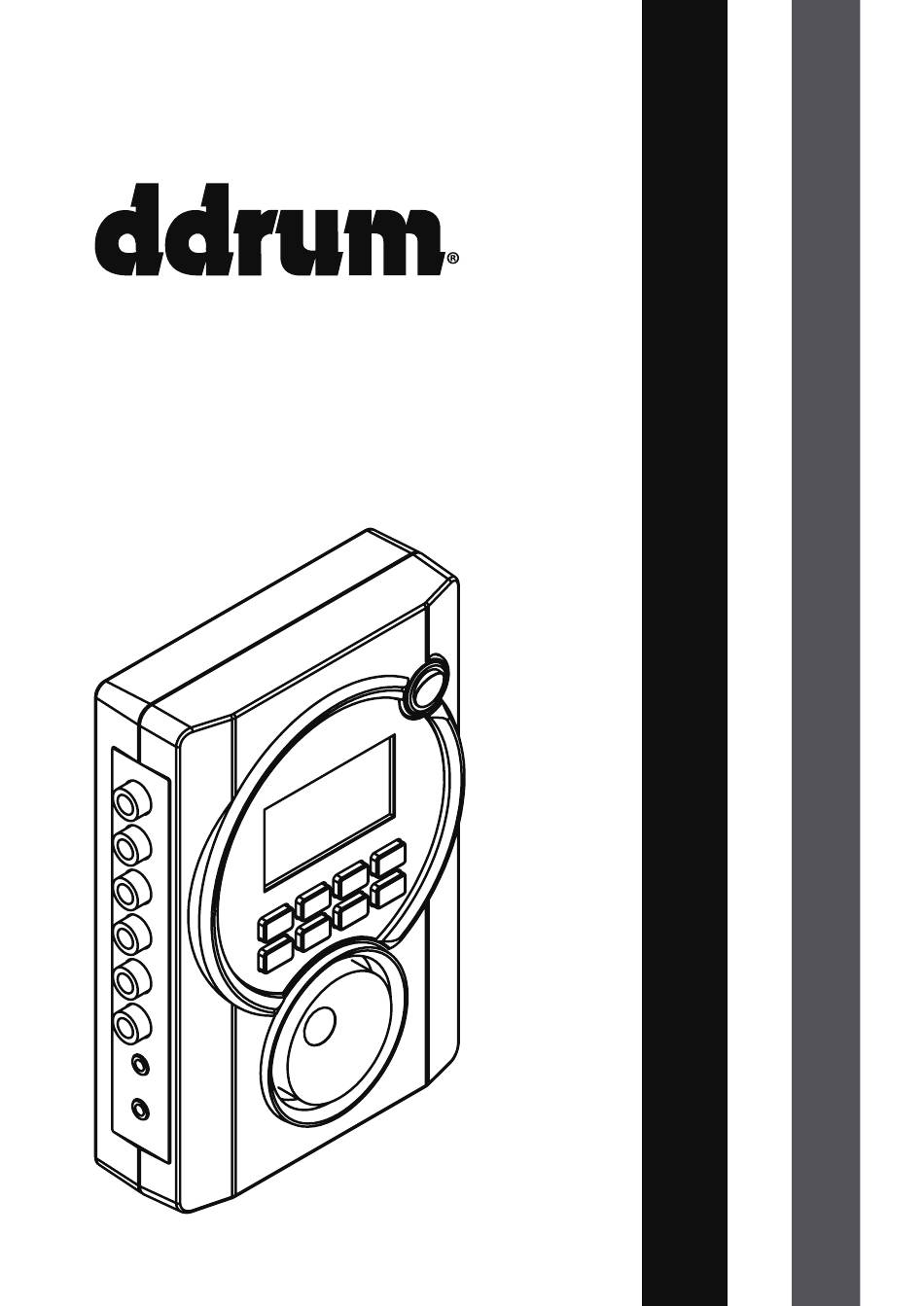

  • Page 1 BETA XP2 Drum Sound Module...

  • Page 2: Operation Warning

    Operation Warning Warning & Caution Signs This sign indicates the risk of serious physical injury or even death. Please operate the machine according to WARNING instructions. This sign indicates the risk of serious physical injury and even death. Please operate the machine according to instructions.
  • Page 3 WARNING WARNING Please only use the adapter that is in- Please read the following instructions cluded with the unit. Make sure that before operation. the voltage of the socket matches the voltage indicated on the unit. Do not open or in any way modify the machine or adapter.
  • Page 4 WARNING CAUTION Always place the module and the If there are children in the household, adaptor in areas with good airflow. the adults should follow the safety precautions explained in the manual. When inserting or removing the power cable into/from the socket or the machine, always grab the plug instead of the cable.

  • Page 5: Additional Precautions

    Precautions Please read the following precautions aside from the safety in- structions Power Supply Additional Precautions • Do not share the power supply with other • During operation, please handle with care to electronics that can produce cable statics, for prevent any damage.
  • Page 6 1 2 4 7 must use Stereo Sound Cables (two black lines at the tip) HI-HAT 1/4"(6.35mm) Stereo 1 HI-HAT SNARE Stereo 2 SNARE TOM1 1/4"(6.35mm) Mono 3 TOM1 CYMBAL1 Stereo 4 CYMBAL1 H.H. CTRL Mono 5 H.H. CTRL controller only BASS CTRL Mono 6 BASS CTRL...
  • Page 7 USE ORIGINAL ADAPTOR ONLY DC 5V1A DC IN (AC Adapter) CYMBAL2 Stereo 7 CYMBAL2 TOM2 Mono 8 TOM2 TOM3 Mono 9 TOM3 BASS DRUM Mono 10 BASS DRUM Micro USB USB connector (USB To MIDI) MIDI OUT MIDI 5-pin DIN MIDI OUT...

  • Page 8: List Of Commands

    List of Commands Home (drum kit) Drum kit (home) 01~29, U-1~U-4 Save preset Press and hold Reset )Press and hold 3~11 Volume 1. vol. 2. mode vol. 3~11. ch.1~8 vol. REC. REC. cancel (at loading) Song mode REC. Click mode REC. Playback Playback mute BGM (Song/ Click track)
  • Page 9 Play Song Song mode 1. Song no.01~99 2. both/vocal/drum/none Song mode Vol. ×2 Play Click Click mode 1. 30~250 BPM 2. 9 kind of beats 3. vocal/click Click mode vol. ×2 Sensitivity Select user mode Custom drum kit 19&20 .10~17 Sensitivity 1.
  • Page 10 ① ③ ⑦ ⑥ ⑤ ⑦ ③ ⑦ ⑦ ⑧ ⑥ ⑦ ⑤ ② ⑥ ②...
  • Page 11 ①. ①- 1. On/ p.12 Power Switch power ②. Control ②- 1. Knob Menu select & adjust the value ②- 2. Home p.13 Back to main page, save preset setting, default setting ③. Display ③- 1. Drum Kit p.14 ③- 2. Channel 1~8 p.14 ④.
  • Page 12 On/ Off...

  • Page 13: Save Preset

    Home (Drum Kit): Save Preset: Press and hold the display will blink once at compeleted. Reset: ( Press and hold the display will blink once at compeleted.

  • Page 14: Sound List

    Display Channel 1~8 Drum kit b a c k c o v e r Sound list BASS HI-HAT SNARE TOM1 TOM2 TOM3 CYMBAL1 CYMBAL3 DRUM ROCK -1 HI-HAT SNARE HI-MID TOM LOW TOM LOW FLOOR TOM CRASH1 CRASH2 BASS JAZZ -1 HI-HAT SNARE HI-MID TOM...
  • Page 15 HI-HAT SNARE TOM1 TOM2 TOM3 CYMBAL1 CYMBAL 2 BASS DRUM User drum kit What is User Drum Kit? User drum kit Channel This module includes 4 sets of user Drum Kits that can be customized. They are U-1~U-4, each set with 8 channels. Sound list on the back cover: 001~029 includes all preset drumsets.

  • Page 16: How To Use

    How to use ① Press the button to select. ② Watch for the change in the display. ③ Rotate knob to select or adjust. ② ① ③...
  • Page 17 Drum Kit (Home) ② ① b a c k c o v e r Sound list Drum Kit presets ③ Rotate to select Drum Kit. 001~029 The sequence of preset drumsets: U-1~U-4 User drumsets:...
  • Page 18 Volume press button repeatedly. Adjust Select Display Volume 1/11 Mode Volume 2/11 please see next page Song/ Click mode volume Playback BGM volume 3/11 Channel 1 Volume 11/11 Channel 9 Volume...
  • Page 19 Mode Volume Song/ Click Mode Volume: ( ×2 Press( ) button into Song/ Click mode, press button twice to select mode volume,use adjust. Playback BGM Volume: ×2 (Song/ Click will be recorded in BGM track.) Playback BGM Mute: Press button start playback, press button twice to select mode volume,use adjust.
  • Page 20 REC. Three storage space, capacity 10,000 notes per space. Display Select (5s for select space or cancel) S1, S2, S3 Cancel REC. Stop REC.
  • Page 21 IN will not be recording. music mobile player phone Song/Click Mode REC.: ( Press ( ) button to check status, (See Song/Click Mode in detail) press to select, press button start REC. (Song/ Click will be recorded in BGM track.) Important When in recording mode, you may want to use the click/ metronome to ensure the your playing is stable and in time.

  • Page 22: Stop Playback

    Playback Three storage space, capacity 10,000 notes per space. Display Select (5s for select space) S1, S2, S3 Playback Mute BGM Stop Playback...
  • Page 23 Playback Drum Kit: (please see Drum Kit Mode for detail) Playback BGM Mute: Playback Volume: Playback BGM Volume: ×2 (Song/ Click will be recorded in BGM track.) Playback Channel Volume: x3~10 (please see Volume Mode for detail) Press button start playback, press button select volume mode, use to adjust.

  • Page 24: Song Mode

    Song Mode Play Song: press button repeatedly. Adjust Select Display Song 01~12 MIDI songs 13~99 percussion rhythm Vocal vocal+drum vocal drum no track...
  • Page 25 Song Mode Volume: ×2 Press button into Song mode, press button twice to select mode volume,use adjust. Song Mode REC.: Press button to check status, press to select, press button start REC. (Song will be recorded in BGM track.)

  • Page 26: Click Mode

    Click Mode Play Click: press button repeatedly. Adjust Select Display Click Speed 30~250 9 kind of beats 2, 3, 3A, 4, 5, 6, 7, 8, 9 Vocal click vocal...
  • Page 27 Click Mode Volume: ×2 Press button into Click mode, press button twice to select mode volume,use adjust. Click Mode REC.: Press button to check status, press to select, press button start REC. Important When in recording mode, you may want to use the click/ metronome to ensure the your playing is stable and in time.

  • Page 28: User Mode

    User Mode Select user mode p.32 Custom Drum Kit p.30 Sensitivity U-1~U-4...
  • Page 29 press to leave user mode, all settings will be saved as a preset. Save Preset: The display will blink once when compeleted.
  • Page 30 Sensitivity Select user mode: Sensitivity Main Edge Edge Bell/ Bow press button repeatedly.
  • Page 31 Select Adjust...
  • Page 32 Shown : When rotating the knob, the display with show “on” or “off” and the channel that is highlighted will flash/blink.
  • Page 33 Custom Drum Kit Select user mode: Custom Drum Kit How To Customize Drum Kit Select a drum from the user Drum Kit, choose a sound from the sound list. (If you don’t know the user drum kit and sound list please see p.15 for detail.) HI-HAT SNARE TOM1...
  • Page 34 press button repeatedly. Adjust Select Display User drum kit U-1 ~ U-4 User drum kit channel Channel Sound list drum kit Sound list Drum Kit 001~029 Sound list channel Sound list Drum Kit channel 1~8...
  • Page 35 ⑤ Hi-Hat Controller Continuous Type Full open More realistic Hi-Hat effects transition between open and closed, such as full open, half open, full closed, foot splash. Full close Foot splash Half open tone transition ② Snare 2-zone Head Rim Shot *Some snare sound are not supported.
  • Page 36 ① Hi-Hat 1-zone+choke ④ Cymbal 1 ⑦ Cymbal 2 Bell/ Bow Choke effect After hitting the cymbal, you can grab the rim as illustrated to produce realistic muted cymbal sound.
  • Page 37 MIDI Note CYM- CYM- BASS HI-HAT edge close pedal SNARE shot TOM1 TOM2 TOM3 edge edge BAL1 BAL2 DRUM ROCK -1 JAZZ -1 METAL -1 BLUES -1 POWER -1 TECHNO -1 TAIKO -1 LATIN-1 TIMBALE-1 FUSION-1 ROCK-2 JAZZ-2 METAL-2 BLUES-2 POWER-2 TECHNO-2 LATIN-2...
  • Page 38 3.User drum kit channel 4.Sound list drum kit channel 1.User drum kit U-1~U-4 2.Sound list Drum Kit Sound list BASS HI-HAT SNARE TOM1 TOM2 TOM3 CYMBAL1 CYMBAL3 DRUM ROCK -1 HI-HAT SNARE HI-MID TOM LOW TOM LOW FLOOR TOM CRASH1 CRASH2 BASS JAZZ -1 HI-HAT...

  • Page 39: Inputs And Outputs

    Spec. Audio Sampling Frequency 16bit 44.1kHz WAV WPW system Maximum Polyphony 32 notes Voices 170 high quality audio Drum kits preset: 29 user : 4 Sensor 128 level ultra realistic velocity sensor WPW system Custom Parameter Volume, Sensitivity (Individually adjusted for each pad) Songs 12 MIDI song 87 percussion rhythm...
  • Page 40 For more information please visit our website www.ddrum.com...
