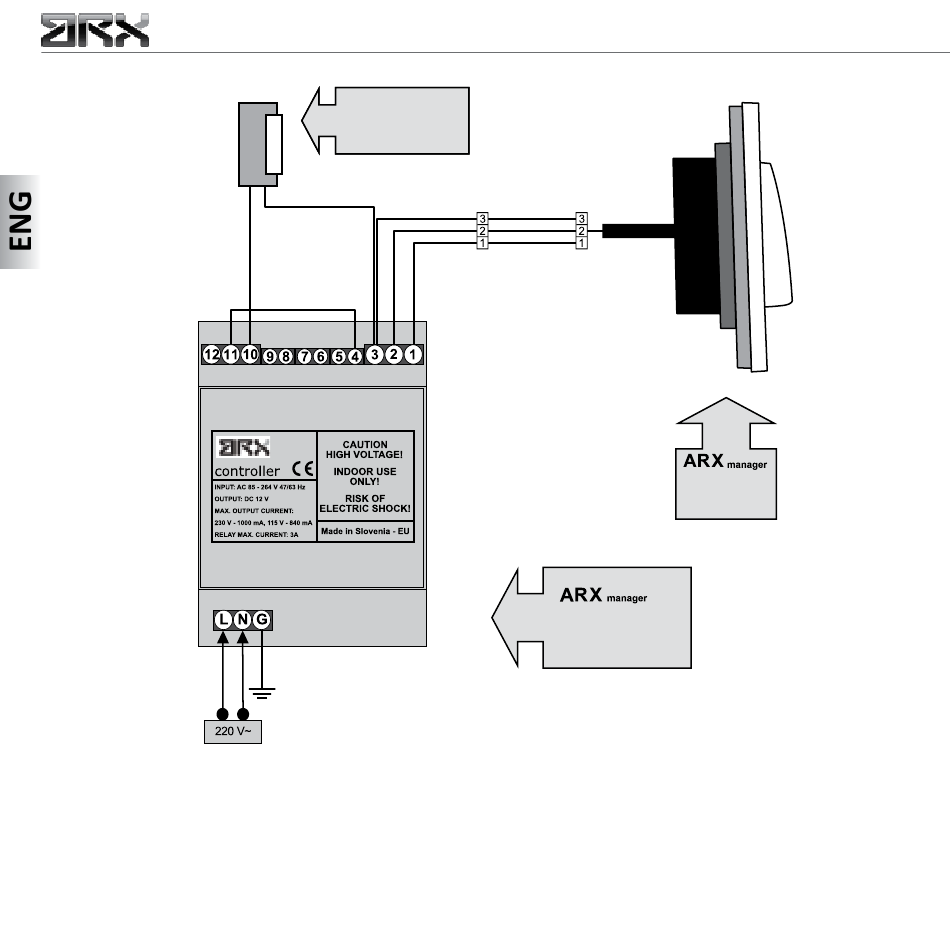

Diagram 1
Diagram 1. shows, how to connect 1 reader and 1 electric lock. In this case electric lock is supplied with power
from interior unit.
We can supply power to the electric lock from interior unit only if it's consumption is less than 500 mA!
If electric lock has higher consumption than 500 mA, we need to connect additional power supply (look
diagram 4.).
16
ELECTRIC
LOCK
EXTERIOR
UNIT
INTERIOR
UNIT
