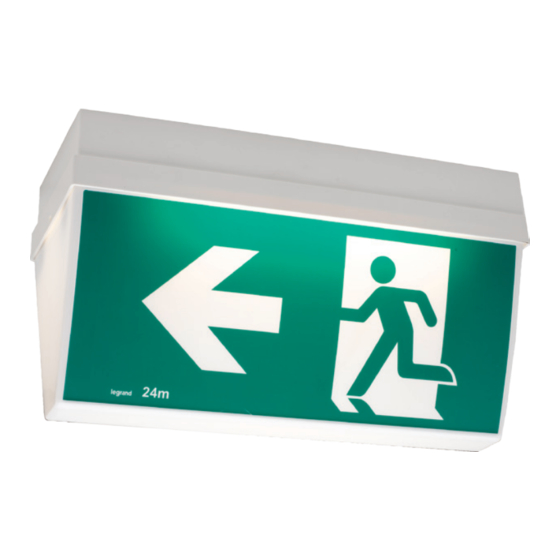

LEGRAND ECONOMY EXIT SIGN ER2 Installation Instructions

ER2 ECONOMY EXIT SIGN
INSTALLATIoN INSTruCTIoNS
Ceiling-mounted

Dimensions:

Single sided (wall mount)
50 50
mm mm
180mm

Product preparation

Wall-mounted
377mm

Specifications:

Cat No.
Supply Voltage
Frequency
Power Input

Application:

This product is designed and tested to comply with AS2293.3
(2005) Appendix C (Photometric) and Appendix D (thermal) as an
Emergency Exit sign for single or double-sided applications. It
is a single-point unit for non-network applications. Selection of
mounting location, height and spacings should be undertaken
in accordance with the requirements of relevant local codes and
standards. Emergency classification can be determined from
Legrand literature web-site and product labelling. This sign is
suited to Maintained or Non-Maintained operation, according to
input connections.
Double sided (ceiling mount)
180mm
50mm
178mm

Mounting holes

684447, 684449, 684454,
684474, 684478, 684480
230-240V a.c.
50Hz
Watts (max)
Watts (low rate charge)
377mm
