Installation Of The Module; Closing The Housing; Startup - AGFEO S0 Module 110 Installation Instructions

Installation of the module¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢

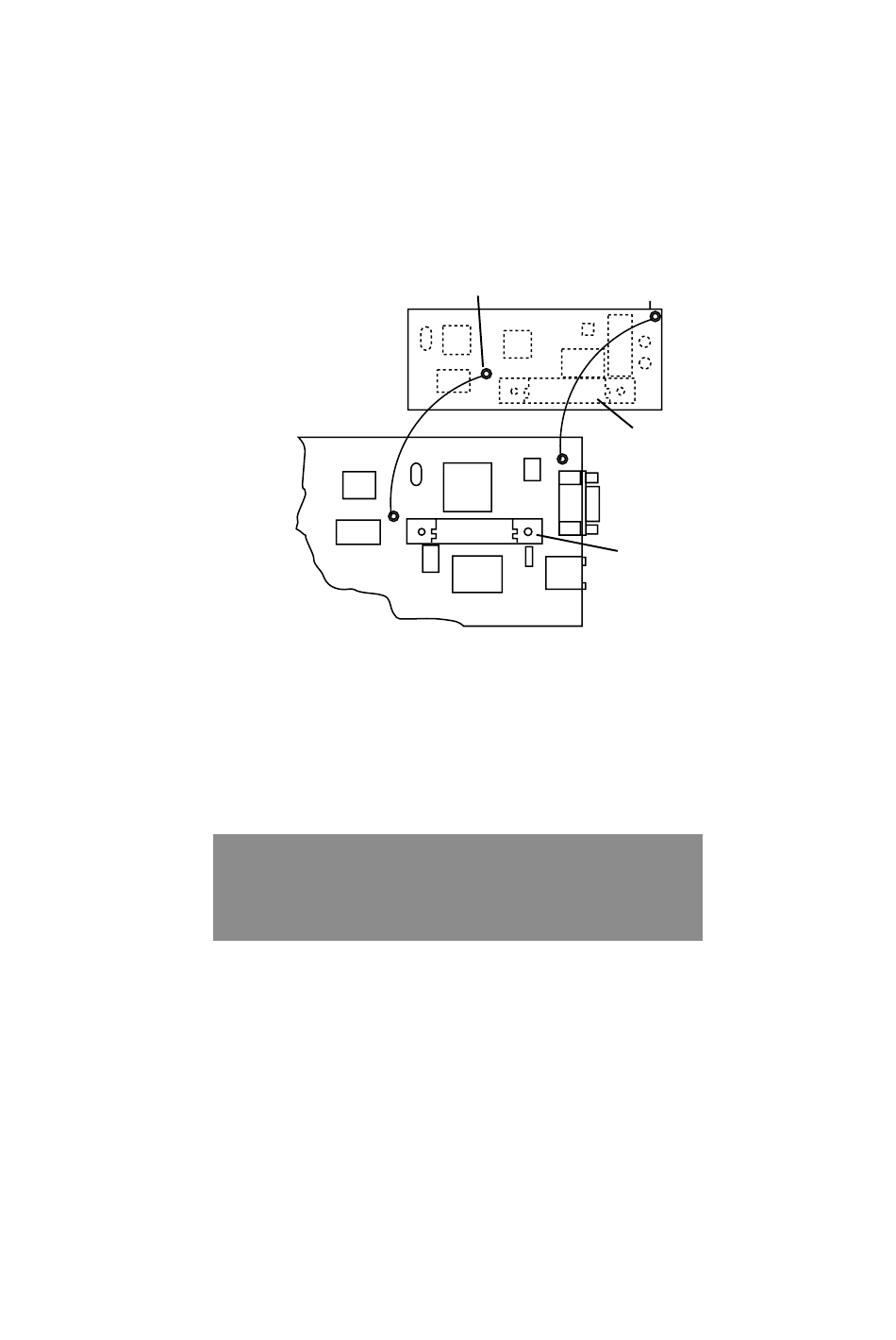

- Plug the S0 module 110 with the connec-
tor strip to the socket strip of the AS 140
(plus) or AS 190 (plus).
Circuit board AS 140 (plus),
AS 190 (plus)
Closing the housing ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢
- Position the hooks in the upper shell in re-
cesses of the lower shell.
- Tip the upper shell down to the right.
- With a slight pressure, the upper shell
snaps into the lower shell.
- Fix the upper shell to the lower shell with
the securing screw S.
Make sure that the housing is closed all round and all hooks
!
have snapped in.
It should not be possible to open the upper shell by lifting it.
There may be a risk of touching fatal voltages through open-
ings between the upper and lower shells!
Startup ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢
- Switch on the telecommunications sys-
tem by plugging in the 230 V- mains
plug
ID No. 524 522
Subject to modifications and errors.
Printed in Germany
0999
2
- Fix the S0 module with screws MS1 and
MS2 using one spring washer each on the
circuit board.
MS2
S0 module 110
- Hang the cover for the connecting panel
to the top of the housing first. The three
lugs grip behind the edge of the housing.
- Press the cover until it snaps into the bot-
tom of the housing.
MS1
Connector strip
Socket strip
