NATURAL GAS MODELS:
PROPANE GAS MODELS:
SAFETY INFORMATION
WARNING
!
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
- Do not store or use gasoline or other
fl ammable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not
use any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call
the fi re department.
- Installation and service must be
performed by a qualifi ed installer, service
agency, or the supplier.
- This is an unvented gas-fi red heater that
uses air (oxygen) from the room in which
it is installed. Provisions for adequate
combustion and ventilation air must be
provided. Refer to section "combustion
and ventilation air provisions".
This appliance may be installed in an aftermar-
ket, permanently located, manufactured-home
(USA only) or mobile home, where not
prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
$10.00
GVFS60-1N / GVFS60-1NN
ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)
GVFS60-1P / GVFS60-1PN
CERTIFICATION
Phone 1 (866) 820-8686 • www.napoleon.com • hearth@napoleon.com
INSTALLATION AND
ADD MANUAL TITLE
OPERATION MANUAL
ADD PRODUCT IMAGE
Insert appropriate statement (see margins).
CERTIFIED TO THE AMERICAN NATIONAL STANDARDS:
CERTIFIED TO THE AMERICAN NATIONAL STANDARD:
ANSI _______ FOR _____________________________________________________
ANSI Z21.11.2b VOLUME II FOR UNVENTED ROOM HEATERS
IF INSTALLATION + OPERATION, ADD SERIAL
LOGO
BARCODE LABEL ON THE OWNER'S MANUAL"
Product Name / Code

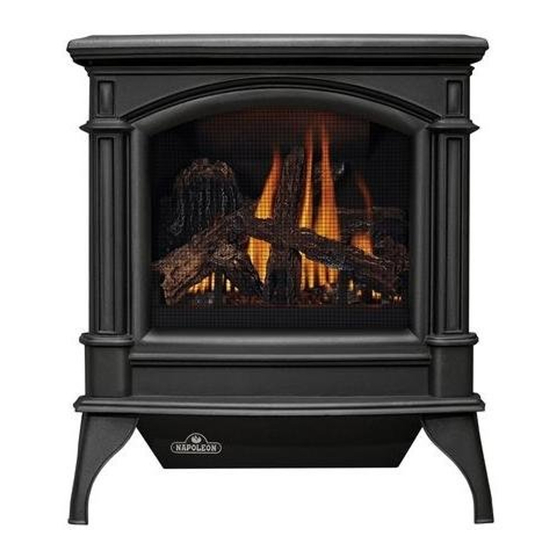

Knightsbridge™ VF
(MUST use title from Price Book)
ADD ____ ILLUSTRATED
FOR INDOOR USE ONLY
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD "PLACE
W415-1966 / 07.08.19
ENGLISH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Napoleon Knightsbridge VF Series
Summary of Contents for Napoleon Knightsbridge VF Series
- Page 1 IF SEPARATE MANUALS, ADD “PLACE CERTIFICATION LOGO BARCODE LABEL ON THE OWNER’S MANUAL” Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone 1 (866) 820-8686 • www.napoleon.com • hearth@napoleon.com W415-1966 / 07.08.19 $10.00...
-
Page 2: Safety Information
safety information WARNING • This appliance is hot when operated and DANGER can cause severe burns if contacted. • Any changes or alterations to this appliance or its controls can be dangerous and is prohibited. HOT GLASS WILL CAUSE • Do not operate appliance before reading and BURNS. - Page 3 safety information WARNING • Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this appliance. • This appliance must not be connected to a chimney fl ue pipe serving a separate solid fuel burning appliance.
-
Page 4: Table Of Contents
table of contents general information rates and effi ciencies rating plate information mobile home installation dimensions shipping bracket installation determining confi ned or unconfi ned space gas installation optional wall switch finishing cast front removal logo placement log placement blower installation switch and bracket installation operation adjustment... -
Page 5: General Information
table of contents Installer, please fi ll out the following information: Customer: Address: Date of Installation: Location of appliance: Installer: Dealer/Distributor contact number: Serial #: Model: Natural Gas: GVFS60-1N Propane: GVFS60-1P GVFS60-1NN GVFS60-1PN 1.0 general information When the appliance is installed at elevations above 2,000ft, and in the absence of specifi c recommendations from the local authority having jurisdiction, the certifi... - Page 6 • Sellers of un-vented propane or natural gas-fi red space / room appliances shall provide to each purchaser a copy of 527 CMR 30.00 upon the sale of the appliance from http://www.napoleonfi replaces.com/Webshare/ installation_manuals/mass_requirements.pdf In absence of local codes, install the appliance to the current National Fuel Gas Code, ANSI Z223.1 Installation Code which can be obtained from: American National Standards Institute Inc.
-
Page 7: Rating Plate Information
Optional Fan Kit: GS-64KT WOLF STEEL LTD. SERIAL NUMBER GVFS60 24 NAPOLEON ROAD, BARRIE. ONTARIO L4M 0G8 CANADA W385-0184 / I This illustration is for reference only. Refer to the rating plate on the appliance for accurate information. note: The rating plate must remain with the appliance at all times. It must not be removed. -
Page 8: Dimensions
general information dimensions 30 1/2" 17 3/4" (774.7mm) (450.9mm) 27" (685.8mm) 17 7/8" (454mm) shipping bracket WARNING • The top casting is not fastened to the appliance assembly. It simply sits on the appliance as a lid. For shipping purposes, it is held in place by plastic strapping. Once the strapping is cut, the top should be lifted off care- fully and stored in a safe place to avoid damage while completing the installation of the appliance. -
Page 9: Installation
2.0 installation WARNING • Provide adequate ventilation and combustion air (see “determining confi ned or unconfi ned space” section). • Provide adequate accessbility clearance for servicing and operating the appliance. • Never obstruct the front opening of the appliance. As long as clearance to combustibles is kept within the required distances, the most desirable and benefi cial loca- tion for an appliance is in the centre of a building, thereby allowing the most effi... - Page 10 installation WARNING • If the area in which the appliance may be operated is smaller than that defi ned as an unconfi ned space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code ANSI Z223.1 / NFPA 54, air for combustion and ventilation, or the applicable local code.
-
Page 11: Gas Installation
3.0 gas installation WARNING • Risk of fi re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open fl ames. • Support gas control when attaching gas supply pipe to prevent damaging gas line. • Always light the pilot whether for the fi... -
Page 12: Optional Wall Switch
4.0 optional wall switch WARNING • Do not connect either the wall switch, thermostat or gas valve directly to 110 volt electricity. For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient location. -
Page 13: Finishing
5.0 fi nishing WARNING • Risk of fi re! • Never obstruct the front opening of the appliance. • Do not strike, slam, or scratch glass. Do not operate appliance with glass removed, cracked, broken, or scratched. cast front removal WARNING •... -
Page 14: Log Placement
fi nishing log placement WARNING • Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved with this appliance may result in property damage or personal injury. • Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since appli- ance may not function properly and delayed ignition may occur. -
Page 15: Blower Installation
6.0 blower installation Ensure that the access cover plate has been installed. ON/OFF Remove the on/off switch bracket and the cover plate SWITCH below it. The cover plate may now be discarded. BRACKET Decide which side of the blower housing you prefer the on/off switch to be located on. -
Page 16: Switch And Bracket Installation
blower installation switch and bracket installation CONNECT THE TWO WIRES TO THE SWITCH TERMINALS. W415-1966 / 07.08.19... -
Page 17: Operation
7.0 operation WARNING • If you do not follow these instructions exactly, a fi re or explosion may result causing property damage, personal injury, or loss of life. • If applicable, always light the pilot whether for the fi rst time or if the gas supply has run out with the glass door opened or removed. -
Page 18: Adjustment
8.0 adjustment venturi adjustment WARNING • Carbon can be distributed in surrounding living area if the air shutter is improperly adjusted. This appliance has an air shutter that has been factory set open according to the chart below: VENTURI Regardless of venturi orientation, closing the air shutter will cause a more BURNER yellow flame, but can lead to carbonization. -
Page 19: Maintenance
9.0 maintenance WARNING • Turn off the gas and electrical power before servicing the appliance. • Appliance may be hot. Do not service until appliance has cooled. • Do not use abrasive cleaners on glass. • Do not paint the pilot assembly. This appliance and its venting system should be inspected before use and at least annually by a qualifi... -
Page 20: Replacement Parts
10.0 replacement parts WARNING • Failure to position the parts in accordance with this manual or failure to use only parts specifi cally approved with this appliance may result in property damage or personal injury. Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can be ordered through your Authorized dealer / distributor. -
Page 21: Gvfs60-1 Overview
replacement parts W415-1966 / 07.08.19... -
Page 22: Accessories
11.0 accessories W415-1966 / 07.08.19... -
Page 23: Troubleshooting
12.0 troubleshooting WARNING • Always light the pilot whether for the fi rst time or if the gas supply has run out with the glass door open or removed. • Turn off the appliance completely and let cool before servicing. Only a qualifi ed service person should service and repair this electric appliance. - Page 24 troubleshooting symptom problem test solution Pilot will not light. Out of propane gas. Fill the tank. No spark at pilot burner. Check if pilot can be lit by a match. INSERT THERMOCOUPLE Check that the wire is connected to the push button ignitor. THERMOPILE Check if the push button ignitor needs tightening.
-
Page 25: Warranty
Napoleon neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. Napoleon will not be responsible for: over- fi ring, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains, inadequate vents or ventilation, excessive venting confi... - Page 26 notes W415-1966 / 07.08.19...
- Page 27 notes W415-1966 / 07.08.19...
- Page 28 NAPOLEON CELEBRATING OVER 40 YEARS OF HOME COMFORT PRODUCTS 7200, Route Transcanadienne, Montréal, Québec H4T 1A3 24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8 103 Miller Drive, Crittenden, Kentucky, USA 41030 Phone: 1-866-820-8686...
