User's Manual

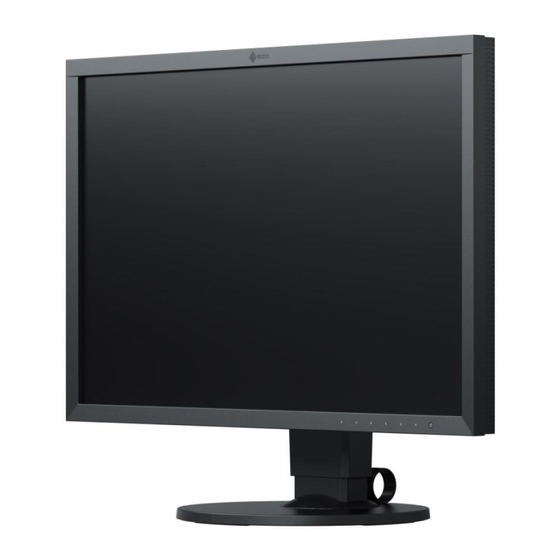

Color Management LCD Monitor
Important
Please read this "User's Manual", and "PRECAUTIONS" (separate
volume) carefully to familiarize yourself with safe and effective usage.
• Refer to the "Setup Guide" for information on the installation /
connection of the monitor.
• For the latest product information including the "User's Manual",
refer to our web site :
www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo ColorEdge CS2410
Summary of Contents for Eizo ColorEdge CS2410
- Page 1 User’s Manual Color Management LCD Monitor Important Please read this “User’s Manual”, and “PRECAUTIONS” (separate volume) carefully to familiarize yourself with safe and effective usage. • Refer to the “Setup Guide” for information on the installation / connection of the monitor. •...
- Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
-
Page 3: Notice For This Monitor
When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not press on the LCD panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. -
Page 4: Cleaning
Cleaning The stains on the cabinet and LCD panel surface can be removed by moistening part of a soft cloth with water. Attention • Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or LCD panel, and also quality deterioration of the image. -
Page 5: Table Of Contents
Contents Notice for this monitor ......... 3 Chapter 5 Troubleshooting ......27 Cleaning ..............4 5-1. No Picture ............ 27 To use the monitor comfortably ......4 5-2. Imaging Problems ........28 Contents ..............5 5-3. Other Problems ........... 29 Chapter 6 Reference ........ -
Page 6: Chapter 1 Introduction
Chapter 1 Introduction This chapter describes the features of the monitor and the name of each control. 1-1. Features • 24″ widescreen • Resolution: Supports 1920 x 1200 • IPS panel with 89˚ horizontal and vertical wide viewing angles • Frame synchronization mode supported (23.75 Hz - 30.5 Hz, 47.5 Hz - 61.0 Hz) •... -
Page 7: Controls And Functions
1-2. Controls and Functions ● Front 1. Operation switches Displays menus. Operate the switches according to the operation guide. Touch the switch to display its menu. The switch indicators are lit white when you turn on the power. 2. Power switch Turns the power on or off. -
Page 8: Rear
● Rear 3. Transportation handle This handle is used for transportation. Attention • Firmly grasp and hold the monitor by the bottom while grabbing the handle, and carefully convey the monitor so as not to drop it. 4. Lock button Use this button when removing the stand from the monitor. -
Page 9: Supported Resolutions
1-3. Supported Resolutions The monitor supports the following resolutions. ● When using digital signal input (DVI-D, DisplayPort, HDMI: PC signal) Horizontal Scan Vertical Scan Resolution Dot Clock Frequency Frequency 640 x 480 25.175 MHz 31.469 kHz 59.940 Hz 720 x 400 28.322 MHz 31.469 kHz 70.087 Hz... -
Page 10: Changing The Pc Display Settings
1-4. Changing the PC Display Settings If the screen is not properly displayed after connecting the monitor to a PC, follow the procedure below to change the PC display settings. ● Windows 10 1. Right-click anywhere on the desktop except for on icons to display the menu. 2. -
Page 11: Macos
● macOS 1. Select "System Preferences" from the Apple menu. 2. When the "System Preferences" panel is displayed, click "Displays". 3. If there are multiple monitors including the notebook PC screen connected to the computer, open the "Arrangement" tab and confirm that "Mirror displays" is not selected. If it is selected, clear it. 4. -
Page 12: Chapter 2 Basic Adjustments/Settings
Chapter 2 Basic Adjustments/Settings This chapter describes the basic functions that can be set by touching the switches on the front of the monitor. For advanced adjustment and setting procedures using the Setting menu, see “Chapter 3 Advanced Adjustments/Settings” (page 15). -
Page 13: Switching Input Signals
2-2. Switching Input Signals When a monitor has multiple signal inputs, the signal to display on-screen can be changed. Touch any switch and select to switch to the input terminal of the input you want to display. 2-3. Switching the Display Mode (color mode) This function allows easy selection of a display mode according to monitor application. -
Page 14: Adjusting The Brightness
2-4. Adjusting the Brightness The brightness of the screen can be adjusted to suit the installation environment or personal preference. Settings 0% to 100% Chapter 2 Basic Adjustments/Settings... -
Page 15: Chapter 3 Advanced Adjustments/Settings
Chapter 3 Advanced Adjustments/Settings This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For the basic setting functions using the switches on the front of the monitor, see “Chapter 2 Basic Adjustments/Settings” (page 12). 3-1. Basic Operation of the Setting Menu Menu display 1. -
Page 16: Setting Menu Functions
2. Choose an item to adjust/set with , and then press The Adjustment/Setting menu appears. 3. Adjust/set the selected item with , and then select The Sub menu appears. Selecting during adjustment/setting will cancel the adjustment/setting and restore the state prior to making changes. - Page 17 Function Settings Description Brightness 0% to 100% The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel). Temperature Native The color temperature can be adjusted. 4000 K to 10000 K The color temperature is used to express the chromaticity of sRGB "White".
- Page 18 Function Settings Description Advanced -100 to 100 Adjust the hue. Settings Note • Using this function may make some color gradations unavailable for display. Saturation -100 to 100 Adjust the color saturation. Note • Using this function may make some color gradations unavailable for display.
-
Page 19: Signal
● Signal The signal settings are used to configure advanced settings for input signals, such as the screen display size and color format. Chapter 3 Advanced Adjustments/Settings... - Page 20 Function Settings Description Picture Expansion Auto The screen size of the monitor display can be changed. Full Screen • "Auto" Aspect Ratio The monitor automatically changes the screen size Dot by Dot according to the resolution information and aspect ratio information from the input signal.
- Page 21 Function Settings Description Input Color Format Auto The color space of the input signal can be specified. YUV 4:2:2 Try changing this setting if colors are not displayed correctly. YUV 4:4:4 Normally, select "Auto". Note • Cannot be set for DVI input. Input Range Auto Depending on the external device, the black and white levels...
-
Page 22: Preferences
● Preferences The monitor's settings can be configured to suit the usage environment or personal preference. Function Settings Description Auto Input Detection When this function is set to "On", the monitor automatically recognizes the connector through which signals are input, so that the screen can be displayed. - Page 23 Function Settings Description USB CHARGE Port Normal The "CHARGE" USB downstream port of the monitor Charging Only supports USB 3.1 quick charging. By changing this setting to "Charging Only", devices connected to the "CHARGE" port can be charged more quickly than when using the "Normal" setting.
-
Page 24: Languages
Function Settings Description Mode Skip Skip This function allows skipping of modes that will not be used when selecting modes. Please use this function if display modes are limited, or if you want to prevent randomly changing the display status. Note •... -
Page 25: Chapter 4 Administrator Settings
Chapter 4 Administrator Settings This chapter describes how to configure monitor operation using the "Administrator Settings" menu. This menu is for administrators. Configuration on this menu is not required for normal monitor use. 4-1. Basic Operation of the "Administrator Settings" Menu Menu display 1. -
Page 26: Administrator Settings" Menu Functions
Function Settings Description On-Screen Logo When this function is set to "Off", the EIZO logo that is displayed when the monitor is turned on does not appear. Key Lock In order to prevent changes to settings, the operation switches on Menu the front of the monitor can be locked. -
Page 27: Chapter 5 Troubleshooting
• This problem may occur when an external device is white. connected via the DisplayPort connector. Connect via the signal cable specified by EIZO, turn off the monitor, and then turn it on again. 2. The message below appears. This message appears when the signal is not input correctly even though the monitor is functioning properly. -
Page 28: Imaging Problems
(page 16)). The LCD monitor backlight has a limited life span. If the screen becomes dark or begins to flicker, contact your local EIZO representative. 2. Afterimages appear • Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time. -
Page 29: Other Problems
• Try changing to a different USB port on the monitor. • Reboot the external device. • If the peripheral devices work correctly when the external device and peripheral devices are connected directly, contact your local EIZO representative. • Check whether the external device and OS are USB compliant. -
Page 30: Chapter 6 Reference
Chapter 6 Reference 6-1. Removing the Stand The stand section of this product can be removed. Attention • Do not move the removed stand up and down. Doing so may result in injury or equipment damage. • Since the monitor and stand are heavy, dropping them may result in injury or equipment damage. To prevent damaging the panel surface, lay the monitor with its panel surface facing down on a soft cloth spread on a stable surface. -
Page 31: Attaching The Optional Arm
6-2. Attaching the Optional Arm An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). www.eizoglobal.com Attention • When attaching an arm or stand, follow the instructions of their User's Manual. •... -
Page 32: Attaching/Detaching The Cable Holder
6-3. Attaching/Detaching the Cable Holder A cable holder is supplied with this product. Use the cable holder to organize the cables connected to the monitor. Attachment procedure Pass the cables through the cable holder. Close the cable holder. In this state, insert the cable holder into the stand. Note •... - Page 33 Detachment procedure Close the cable holder. In this state, pull the cable holder from the stand. Chapter 6 Reference...
-
Page 34: Detaching/Attaching Stand Base
6-4. Detaching/Attaching Stand Base Detachment procedure The stand base that was attached during setup can be detached using the following procedures. To prevent damaging the panel surface, lay the monitor on a soft cloth spread on a stable surface with the panel surface facing down. Raise the lever on the bottom of the stand base. - Page 35 Attachment procedure The detached stand base can be attached to the monitor again with the following procedures. To prevent damaging the panel surface, lay the monitor on a soft cloth spread on a stable surface with the panel surface facing down. Attach the stand base onto the stand brace.
- Page 36 Turn the stand base clockwise until it makes a clicking sound. Chapter 6 Reference...
-
Page 37: Connecting Multiple External Devices
6-5. Connecting Multiple External Devices The product allows you to connect multiple external devices and switch between them for display. Connection examples DD200-BK(DVI-D - DVI-D) HDMI HH200HS(HDMI - HDMI) HDMI DisplayPort PP200 (DisplayPort - DisplayPort) DisplayPort Note • The input signal changes each time the operation switch ( ) on the front of the monitor is touched. -
Page 38: Making Use Of The Usb Hub Function
6-6. Making Use of the USB Hub Function This monitor is equipped with a USB hub. It works as a USB hub when connected to a USB-compatible external device, allowing the connection of peripheral USB devices. ● Connection Procedure 1. Connect the USB cable between the USB downstream port of the external device and the USB upstream port of the monitor. -
Page 39: Specifications
6-7. Specifications LCD Panel Type IPS (Anti-Glare) Backlight Wide color gamut LED Size 61.1 cm (24.1 inch) Resolution 1920 dots x 1200 lines Display Size (H x V) 518.4 mm x 324.0 mm Pixel Pitch 0.270 mm x 0.270 mm Pixel Density 94 ppi Display Colors... -
Page 40: Accessories
Physical Outside Minimum 554.4 mm x 396 mm x 245 mm (W x H x D) Specifications Dimensions Height (Tilt: 0˚) Maximum 554.4 mm x 558 mm x 265 mm (W x H x D) Height (Tilt: 35˚) Outside Dimensions (Without 554.4 mm x 362 mm x 64 mm (W x H x D) Stand) Net Weight... -
Page 41: Appendix
Apple, macOS, Mac OS, OS X, Macintosh and ColorSync are registered trademarks of Apple Inc. EIZO, the EIZO Logo, ColorEdge, CuratOR, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. -
Page 42: Information For Radio Interference
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord... - Page 43 03V27723A1 UM-CS2410 Copyright © 2019 EIZO Corporation. All rights reserved. 1st Edition-March, 2019...
