User's Manual

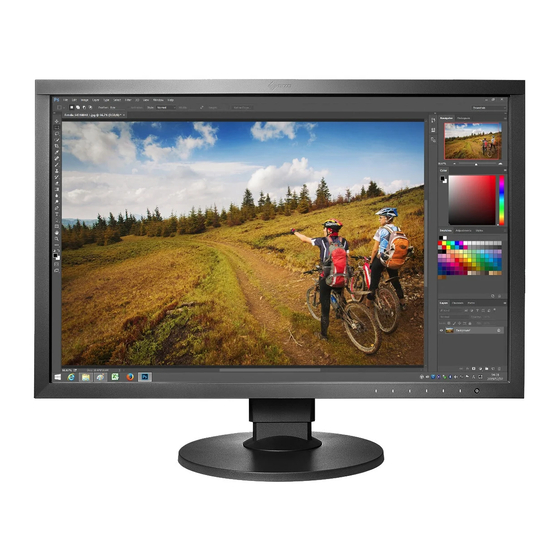

Color Management LCD Monitor
Important
Please read PRECAUTIONS, this User's Manual, and the Setup Guide (separate volume) carefully to familiarize yourself
with safe and effective usage.
• Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC or external
device to using the monitor.
• The latest User's Manual is available for download from our web site:
http://www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo ColorEdge CS2420
Summary of Contents for Eizo ColorEdge CS2420
- Page 1 User’s Manual Color Management LCD Monitor Important Please read PRECAUTIONS, this User’s Manual, and the Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage. • Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC or external device to using the monitor.
- Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
-
Page 3: Notice For This Monitor
Notice for this monitor Notice for this monitor Aside from general purposes like creating documents, viewing multimedia content, this product is also suited to applications such as graphics creation and digital photo processing, where accurate color reproduction is a priority. This product has been adjusted specifically for use in the region to which it was originally shipped. -
Page 4: Cleaning
Notice for this monitor The backlight of the LCD panel has a fixed lifetime. When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. If pressure is continually applied to the panel, it may deteriorate or damage your panel. -
Page 5: Table Of Contents
● Front ......................9 ● Information....................27 ● Rear ......................10 Chapter 4 Administrator Settings ............28 1-3. EIZO LCD Utility Disk ................11 4-1. Basic Operation of the “Administrator Settings” menu ......28 ● Disk contents and software overview ............11 ● To use ColorNavigator 6 ................11 4-2. - Page 6 Contents 6-5. Making Use of USB (Universal Serial Bus) ...........42 ● Required System Environment ..............42 ● Connection Procedure (Setup of USB Function) ........43 6-6. Specifications ..................44 ● Dimensions ....................46 ● Main Default Settings ................47 ● Accessories ....................47 Chapter 7 Glossary..................48 Appendix .....................
-
Page 7: Chapter 1 Introduction
Chapter 1 Introduction Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features • 24.0″ widescreen • Wide color gamut display (Adobe ® RGB coverage: 99%) • Supports a resolution of 1920 × 1200 •... - Page 8 Chapter 1 Introduction Note • This monitor supports portrait format. When using the screen in a portrait position, you can change the orientation of the Setting menu. (see “Menu Rotation” (page 25)) • When using the monitor screen in a portrait position, the graphics board supporting portrait display is required. When placing the monitor in a portrait position, the settings of your graphics board need to be changed.
-
Page 9: Controls And Functions
Chapter 1 Introduction 1-2. Controls and Functions ● Front Setting menu 1. Operation switches Displays menus. Operate the switches according to the operation guide. The switch indicator is lit white when you turn the power on. 2. Power switch Turns the power on or off. The switch indicator is lit when you turn the power on. -
Page 10: Rear
Chapter 1 Introduction ● Rear 3. Main power switch Turns the main power on ( ) or off ( 4. Power connector Connects the power cord. 5. Input signal connectors Left: DVI-D connector / Center: HDMI connector / Right: DisplayPort connector 6. -
Page 11: Eizo Lcd Utility Disk
Chapter 1 Introduction 1-3. EIZO LCD Utility Disk An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and an overview of the software programs. ● Disk contents and software overview The disk includes application software programs for calibration, and the User's Manual. Refer to “Readme.txt” or the “read me” file on the disk for software startup procedures or file reference procedures. -
Page 12: Supported Resolutions
Chapter 1 Introduction 1-4. Supported Resolutions The monitor supports the following resolutions. ● When using digital signal input (DVI-D, DisplayPort, HDMI: PC signal) Resolution Vertical scan frequency 640 x 480 60 Hz 720 x 400 70 Hz 800 x 600 60 Hz 1024 x 768 60 Hz... -
Page 13: When Using Digital Signal Input (Hdmi: Video Signal )
Chapter 1 Introduction ● When using digital signal input (HDMI: Video signal Vertical scan frequency Resolution 24Hz 25Hz 30Hz 50Hz 60Hz 640 x 480 √ 720 × 480 (480i) √ 720 × 480 (480p) √ 720 × 576 (576i) √ 720 ×... -
Page 14: Windows 8.1 / Windows 8 / Windows 7
Chapter 1 Introduction ● Windows 8.1 / Windows 8 / Windows 7 1. For Windows 8.1 / Windows 8, click the “Desktop” tile on the Start Screen to display the desktop. 2. Right-click the mouse anywhere on the desktop except on icons. 3. -
Page 15: Chapter 2 Basic Adjustments/Settings
Chapter 2 Basic Adjustments/Settings Chapter 2 Basic Adjustments/Settings This chapter describes the basic functions that can be adjusted and set by touching the switches on the front of the monitor. For advanced adjustment and setting procedures using the Setting menu, see “Chapter 3 Advanced Adjustments/Settings”... -
Page 16: Switching Input Signals
Chapter 2 Basic Adjustments/Settings 2-2. Switching Input Signals When a monitor has multiple signal inputs, the signal to display on-screen can be changed. When the input signal is switched, the connector name of the displayed signal appears at the bottom right of the screen. - 16 -... -
Page 17: Switching The Display Mode (Color Mode)
Chapter 2 Basic Adjustments/Settings 2-3. Switching the display mode (color mode) This function allows easy selection of a display mode according to monitor application. ● Display Modes Color Mode Purpose Standard Mode Adjust color using the monitor's Setting menu. Custom Select for configuring color settings according to your preference. -
Page 18: Chapter 3 Advanced Adjustments/Settings
Chapter 3 Advanced Adjustments/Settings Chapter 3 Advanced Adjustments/Settings This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For the basic adjustment/setting functions using the switches on the front of the monitor, see “Chapter 2 Basic Adjustments/Settings” (page 15). -
Page 19: Setting Menu Functions
Chapter 3 Advanced Adjustments/Settings 3-2. Setting Menu Functions ● Color ® When the screen is displayed in Standard Mode (Custom / Adobe RGB / sRGB), you can adjust the color settings of each color mode according to your preference. Attention •... - Page 20 Chapter 3 Advanced Adjustments/Settings Function Adjustable range Description Note Gamma 1.6 to 2.7 Adjust the gamma. ® Adobe The brightness of the monitor varies depending on the input sRGB signal, however, the variation rate is not simply proportional to the input signal.
- Page 21 Chapter 3 Advanced Adjustments/Settings Function Adjustable range Description Note Advanced Set- Clipping The method of displaying colors outside the monitor’s displayable • The diagrams on the left are conceptual tings range within the color gamut specified in accordance with “Color diagrams, and do not display the actual color Gamut”...
-
Page 22: Signal Settings
Chapter 3 Advanced Adjustments/Settings ● Signal Settings The signal settings are used to configure advanced settings for input signals, such as the screen display size and color format. - 22 -... - Page 23 Chapter 3 Advanced Adjustments/Settings Input Signal (The setting range of each function differs depending Adjustable on the input signal.) Function Description Note range √: Settable -: Not settable DisplayPort HDMI Picture Expansion √ √ √ Auto The screen size of the monitor display can be changed. •...
- Page 24 Chapter 3 Advanced Adjustments/Settings Input Signal (The setting range of each function differs depending Adjustable on the input signal.) Function Description Note range √: Settable -: Not settable DisplayPort HDMI Input Range √ √ √ Auto Depending on the external device, the black and white levels Full in the video signal output to the monitor may be restricted.
-
Page 25: Preferences
Refer to the User’s Manual of the graphics board for details. Also, visit the EIZO website (http://www.eizoglobal.com). • When using the monitor in a portrait position,... - Page 26 Chapter 3 Advanced Adjustments/Settings Function Adjustable range Description Note USB CHARGE Port Normal The “CHARGE” USB downstream port of the monitor supports • Make sure to complete any communication Charging Only USB 3.0 quick charging. By changing this setting to “Charging between connected USB devices and the PC Only”, devices connected to the “CHARGE”...
-
Page 27: Languages
Chapter 3 Advanced Adjustments/Settings ● Languages The display language for menus and messages can be selected. Adjustable range English, Deutsch, Français, Español, Italiano, Svenska, Japanese, Simplified Chinese, Traditional Chinese ● Information You can check the monitor information (model name, serial number, firmware version, usage time, ColorNavigator license status, resolution, input signal, etc.). Example: - 27 -... -
Page 28: Chapter 4 Administrator Settings
Chapter 4 Administrator Settings Chapter 4 Administrator Settings This chapter describes how to configure monitor operation using the “Administrator Settings” menu. This menu is for administrators. Configuration on this menu is not required for normal monitor use. 4-1. Basic Operation of the “Administrator Settings” menu Menu display Settings 1. -
Page 29: Administrator Settings" Menu Functions
Description Note On-Screen Logo When the monitor is turned on, the EIZO logo appears on the screen. When this function is set to “Off”, the EIZO logo does not appear. Key Lock In order to prevent changes to settings, the operation switches on the Menu front of the monitor can be locked. -
Page 30: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Chapter 5 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local EIZO representative. 5-1. No picture Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. -
Page 31: Imaging Problems
“Information” (page 27)). (The LCD monitor backlight has a lim- ited life span. When the screen becomes dark or begins to flicker, contact your local EIZO representative.) 2. Afterimages appear • Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time. -
Page 32: Other Problems
• If the peripheral devices work correctly when the PC and peripheral devices are connected directly, contact your local EIZO representative. • Check whether the PC and OS are USB compliant. (For USB compliance of the respective devices, consult their manu- facturers.) -
Page 33: Chapter 6 Reference
Chapter 6 Reference Chapter 6 Reference 6-1. Attaching the Optional Arm An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). http://www.eizoglobal.com Attention •... - Page 34 Chapter 6 Reference Attaching the Optional Arm (Optional Stand) Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down. Remove the stand. As shown below, keep the lock button pressed down (1) and slide the stand towards the stand base until it stops (2). Then, lift the stand up (3). Attach the arm or stand to the monitor.
- Page 35 Chapter 6 Reference Attaching the original stand Detach the fixing screws on the optional arm (or optional stand) and remove the optional arm (or optional stand). Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down. Attach the original stand. As shown below, insert the four tabs on the stand to the square holes on the back panel (1) and slide the stand towards the upper portion of the monitor until it makes a clicking sound (2).
-
Page 36: Detaching/Attaching Stand Base
Chapter 6 Reference 6-2. Detaching/Attaching Stand Base Detachment procedure The stand base that was attached during setup can be detached using the following procedures. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down. Raise the lever on the bottom of the stand base. - Page 37 Chapter 6 Reference Attachment procedure The once removed the stand base can be attached to the monitor again with the following procedures. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down. Attach the stand base onto the stand brace.
- Page 38 Chapter 6 Reference Turn the stand base clockwise until it makes a clicking sound. - 38 -...
-
Page 39: Attaching/Detaching Cable Holder
Chapter 6 Reference 6-3. Attaching/Detaching Cable Holder A cable holder is supplied with this product. Use the cable holder to organize the cables connected to the monitor. Attachment procedure Pass the cables through the cable holder. Close the cable holder. While holding the cable holder closed, insert it into the stand. - Page 40 Chapter 6 Reference Note • The cable holder can be inserted either perpendicular or parallel to the stand. Change the orientation of the cable holder in line with the direction of the cables. Detachment procedure Close the cable holder. While holding the cable holder closed, pull it from the stand. - 40 -...
-
Page 41: Connecting Multiple External Devices
Chapter 6 Reference 6-4. Connecting Multiple External Devices The product allows you to connect multiple external devices and switch between them for display. Connection Note examples • The input signal changes each time the operation switch ( ) on the front of the monitor is touched. -
Page 42: Making Use Of Usb (Universal Serial Bus)
• A PC equipped with a USB port • Windows 10 / Windows 8.1 / Windows 8 / Windows 7, or Mac OS X 10.7.5 or later • EIZO USB cable (UU200SS (USB 3.0)) Attention • This monitor may not work depending on the used PC, OS or peripheral devices. For USB compatibility of peripheral devices, contact their manufactures. -
Page 43: Connection Procedure (Setup Of Usb Function)
Chapter 6 Reference ● Connection Procedure (Setup of USB Function) 1. Connect the monitor first to a PC using the signal cable, and start the PC. 2. Connect the USB cable between the USB downstream port of the PC and the USB upstream port of the monitor. The USB hub function is set up automatically upon connection of the USB cable. -
Page 44: Specifications
Chapter 6 Reference 6-6. Specifications LCD Panel Type IPS (Anti-Glare) Backlight Wide color gamut LED Size 61 cm (24.0inch) Resolution 1920 dots × 1200 lines Display Size (H × V) 518.4 mm × 324.0 mm Pixel Pitch 0.270mm×0.270mm Display Colors Approx. - Page 45 Chapter 6 Reference Physical Dimensions Min. height: 554.4 mm × 396 mm × 245 mm (W × H × D) (Tilt: 0˚) Specifications Max. height: 554.4 mm × 558 mm × 265 mm (W × H × D) (Tilt: 35˚) Dimensions (Without Stand) 554.4 mm ×...
-
Page 46: Dimensions
Chapter 6 Reference ● Dimensions Unit: mm 344° 341.5 554.4 519.8 (227.2) (227.2) VESA 122.6 62.7 - 46 -... -
Page 47: Main Default Settings
English Logo Key Lock Signal Format DisplayPort HDMI ● Accessories Cleaning Kit EIZO “ScreenCleaner” Signal cable HH200HS (HDMI – HDMI) PP200 (DisplayPort – DisplayPort) For the latest information about the accessories, refer to our web site. http://www.eizoglobal.com - 47 -... -
Page 48: Chapter 7 Glossary
Chapter 7 Glossary Chapter 7 Glossary ® Adobe This is a definition of the practical RGB color space proposed by Adobe Systems in 1998. The color reproduction range (color gamut) is broader than sRGB, and is highly adaptable to such fields as printing etc. Color Space YUV and RGB, etc. - Page 49 Chapter 7 Glossary HDCP (High-bandwidth Digital Content Protection) Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or HDMI connector on the output side and decoding them on the input side.
-
Page 50: Appendix
Appendix Appendix Trademark The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. The DisplayPort Compliance Logo and VESA are registered trademarks of the Video Electronics Standards Association. Acrobat, Adobe, Adobe AIR, and Photoshop are registered trademarks of Adobe Systems Incorporated in the United States and other countries. -
Page 51: License / Copyright
Linux is a registered trademark of Linus Torvalds. Red Hat is a registered trademark of Red Hat, Inc. EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. -
Page 52: Fcc Declaration Of Conformity
Trade name: EIZO Model: ColorEdge CS2420 is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 53: Canadian Notice
Appendix Note Use the attached specifi ed cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord - Shielded Signal Cable (enclosed) Canadian Notice This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de le classe B est comforme à la norme NMB-003 du Canada. - 53 -... -
Page 54: Limited Warranty
Warranty. EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon the expiration of fi ve (5) years after the production of such parts is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards. If the unit cannot be repaired due to its condition or the stockout of a relevant part, EIZO and Distributors may offer the replacement by a product with equivalent performance instead of repairing it. - Page 55 Nach Ablauf von fünf (5) Jahren nach Ende der Produktion solcher Teile werden EIZO und Vertriebshändler keine Teile (mit Ausnahme von Konstruktionsteilen) mehr vorhalten und lagern. EIZO und seine Vertriebspartner verpfl ichten sich, bei einer etwaigen Reparatur des Monitors ausschließlich Produkte gemäß den EIZO-Qualitätssicherungsstandards zu verwenden.
- Page 56 Garantie. EIZO et ses Distributeurs cesseront de conserver ou de stocker des pièces (à l'exception des pièces de conception) du Produit à l'expiration d'une période de cinq (5) ans après l'arrêt de la production de ces pièces. Pour réparer le moniteur, EIZO et ses distributeurs utiliseront des pièces de rechange conformes à nos normes de contrôle qualité. Si l'unité ne peut pas être réparée en raison de son état ou de la rupture de stock d'une pièce adéquate, EIZO et ses Distributeurs peuvent proposer le remplacement par un produit aux performances...
- Page 57 Garantía. EIZO y sus distribuidores dejarán de tener o almacenar cualquier pieza del producto (excepto piezas del diseño) una vez expirado el periodo de cinco (5) años después de que hayan dejado de fabricarse tales piezas.
-
Page 58: Garanzia Limitata
(a cui si farà riferimento da qui in poi con “Garanzia”) all’acquirente originale (a cui si farà riferimento da qui in poi con “Acquirente originale”) che ha acquistato il prodotto specifi cato in questo documento (a cui si farà riferimento da qui in poi con “Prodotto”) da EIZO o dai suoi Distributori, che EIZO e i distributori, a loro discrezione, ripareranno o sostituiranno il Prodotto senza addebito se l’Acquirente originale trova, entro il periodo della Garanzia (defi nito sotto), che il Prodotto malfunziona e si è... - Page 59 EIZO och dess leverantörer slutar lagerföra delar (utom designdelar) till produkten fem (5) år efter att delen i fråga slutar tillverkas. Nät skärmen repareras använder EIZO och distributörer reservdelar som uppfyller våra kvalitetsstandarder. Om enheten inte kan repareras på grund av skicket eller att en del inte fi nns i lager kan EIZO och dess leverantörer erbjuda sig att byta ut produkten mot en produkt med likvärdig prestanda istället för att reparera den.
- Page 60 περιορισμένης εγγύησης (στο εξής «Εγγύηση»), στον αρχικό αγοραστή (στο εξής «Αρχικός Αγοραστής») ο οποίος αγόρασε το προϊόν που καθορίζεται στο παρόν έγγραφο (στο εξής «Προϊόν») από την EIZO ή τους Διανομείς, η οποία εξασφαλίζει ότι η EIZO και οι Διανομείς, σύμφωνα με τη διακριτή ευχέρειά τους, είτε θα επισκευάσουν είτε θα αντικαταστήσουν...
- Page 61 Первоначальному покупателю или по отношению к любым третьим сторонам, кроме обязательств, оговоренных в этой Гарантии. Компания EIZO и ее дистрибьюторы хранят детали изделия (за исключением деталей внешней конструкции) не пять (5) лет после прекращения его выпуска. В случае ремонта монитора EIZO и Дистрибьюторы будут использовать запчасти, которые соответствуют нашим стандартам QC (контроль качества). Если устройство невозможно...
- Page 62 Appendix 有限责任保证书 EIZO Corporation （以下简称 EIZO ） 和 EIZO 授权的经销商 （以下简称 经销商 ） ， 接受并依照本有限责任保证书 （以下简称 保证书 ） 之条款， 向从 EIZO 和经销商购买本文中所规定产品 （以 下简称 产品 ）的原买方（以下称 原买方 ）提供保证 ： 在保证期内（规定如下） ，如果原买方发现按本产品所附使用说明书（以下简称 用户手册 ）所述方式正常使用本产品过程中， 本产品出现故障或损坏，EIZO 和经销商根据其独自的判断免费修理或更换该产品。 本保证期限定为（i）自本产品购买之日起的五（5）年期间或限定为到达（ii）使用本产品 3 万小时的期限（以下简称 保证期限 ） 。EIZO 和经销商将不向原买方或任何第三方承担本保...
-
Page 63: Recycling Information
Este producto debe desecharse y reciclarse según la legislación del país para reducir el impacto medioambiental. Cuando desee deshacerse de este producto, póngase en contacto con un distribuidor o una fi lial de su país. Encontrará las direcciones de contacto en el sitio web de EIZO que se indica a continuación. http://www.eizoglobal.com... - Page 64 Per lo smaltimento e il riciclaggio del presente prodotto, attenersi alle normative vigenti nel proprio paese per ridurre l’impatto ambientale. Per lo smaltimento, rivolgersi ad un distributore o un affi liato presenti nel proprio paese. Gli indirizzi sono elencati nel sito Web EIZO riportato di seguito. http://www.eizoglobal.com Per informazioni sul riciclaggio per i clienti in Svizzera, consultare il sito Web riportato di seguito.
- Page 65 Ten produkt po zużyciu powinien być zbierany i przetwarzany zgodnie z krajowymi przepisami dotyczącymi ochrony środowiska. Wyrzucając ten produkt, należy skontaktować się z lokalnym dystrybutorem lub partnerem. Adresy kontaktowe można znaleźć we wskazanej poniżej witrynie internetowej fi rmy EIZO. http://www.eizoglobal.com Informace o recyklaci Při likvidaci produktu musí...
- Page 66 Pri likvidácii musí byť tento výrobok recyklovaný v súlade s legislatívou vašej krajiny, aby sa znížilo zaťaženie životného prostredia. Keď sa chcete zbaviť tohto výrobku, kontaktujte prosím distribútora alebo pobočku vo vašej krajine. Zoznam kontaktných adries je uvedený na nasledovnej webovej stránke fi rmy EIZO: http://www.eizoglobal.com Pārstrādes informācija...
- Page 67 околната среда. Когато искате да се освободите от този продукт, моля свържете се с търговския му представител или със съответните органи отговарящи за това във вашата страна. Данните за връзка с нас са описани на следния Интернет сайт на EIZO: http://www.eizoglobal.com Informaţie referitoare la reciclare...
- Page 68 1st Edition-February, 2016 Copyright © 2016 EIZO Corporation All rights reserved. 03V25650A1 (U.M-CS2420)
