1SS 5, SECTION 501-164-201
(7)
Verify
correct
operation
of option.
(1) Remove
faceplate
(paragraph
3.10)
(8)
Reassemble.
(2)
Loosen the captive
screw at the bottom
of the
cover
around
the dial and remove
the cover
B.
D-1808 18 Kit of Ports (Record Disable and Dial lnter-
(Fig. 2).
mix Feature)
(3) Disengage
dial from
chassis
(paragraph
6.05
3.08
Install
as follows.
or 6.06).

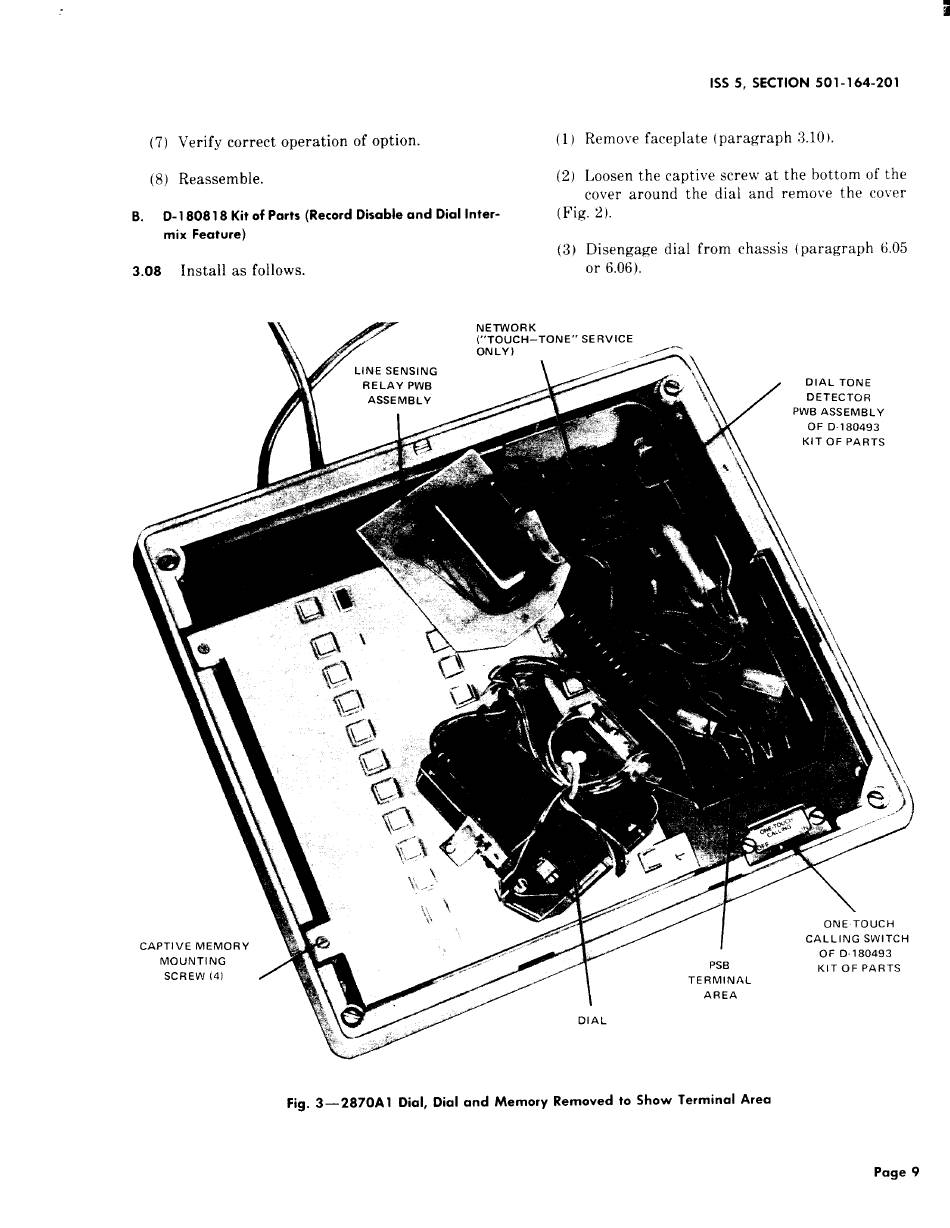

Fig. 3—2870A1
Dial, Dial and Memory
Removed to Show Terminal Area
Page 9
