Summary of Contents for Grammer MSG95

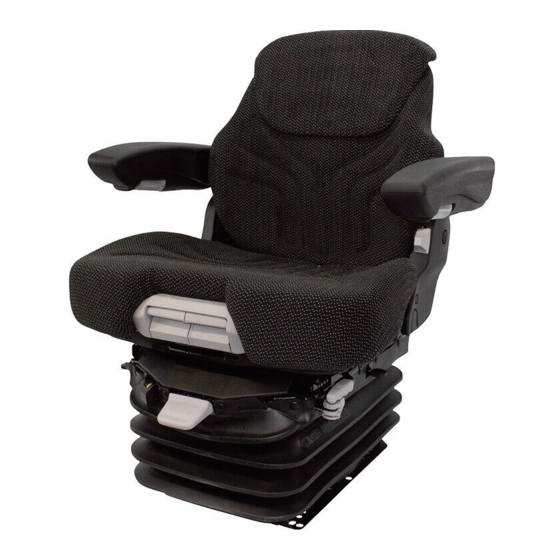

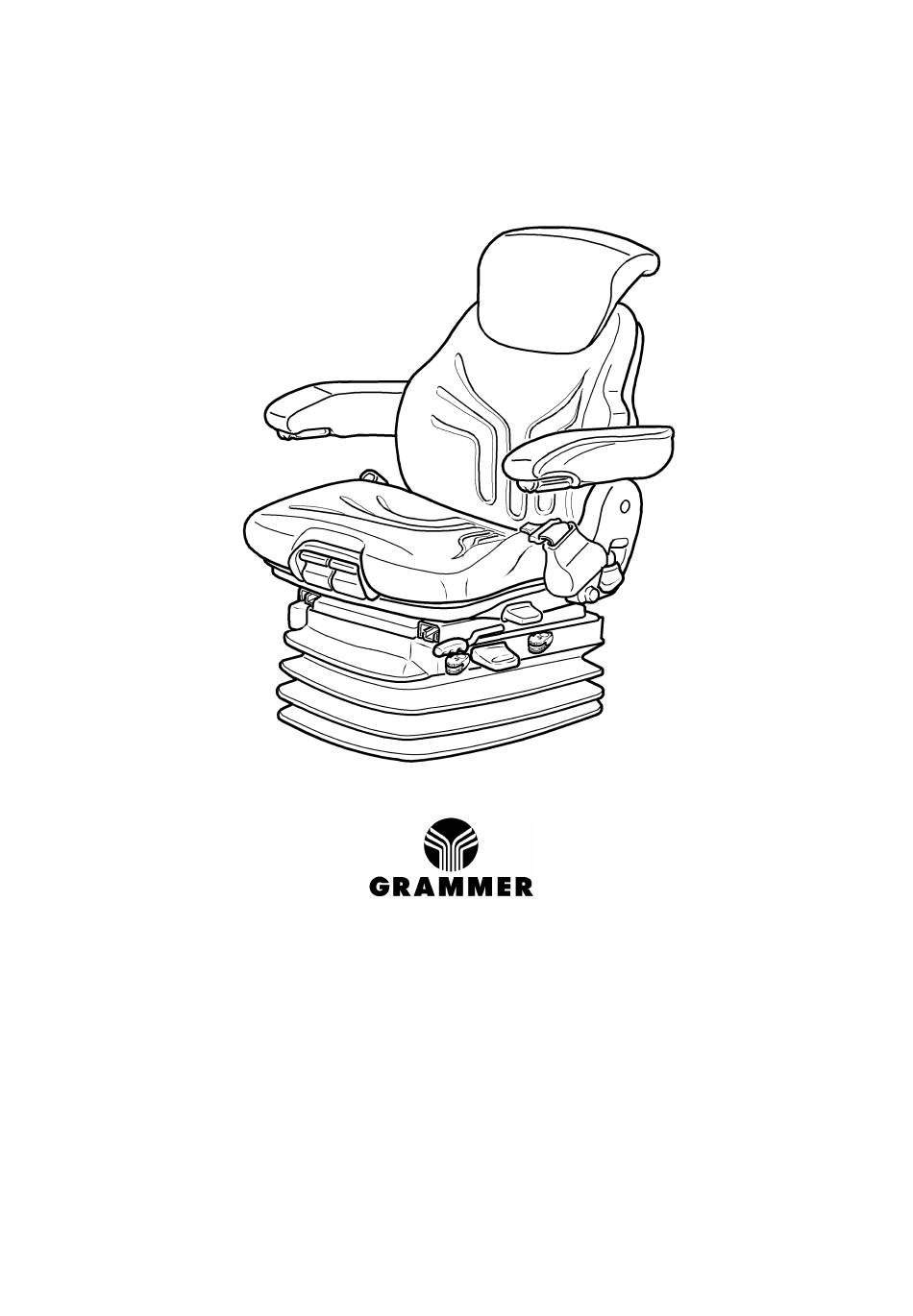

  • Page 1 MSG95 LUFTGEFEDERTER SITZ AIR SUSPENSION SEAT SIEGE A SUSPENSION PNEUMATIC SEDILE CON MOLLEGGIO PNEUMATICO ASIENTO CON SUSPENSION PNEUMATICA LUCHGEVEERDE STOEL 6/98-b 140 556...
  • Page 2 : Seating comfort for high demands! You have acquired a seat. Congratulations! Take your seat please, and enjoy the ultimate in seating comfort and safety. You will be enjoying a driver seat characterized by user-friendliness and a high degree of adaptability. With your new seat you are not only preserving your health;...
  • Page 3 Operating instructions MSG 95A/20...
  • Page 4: Table Of Contents

    Contents General instructions ..................18 Safety instructions ..................18 Seat functions and operation...............20 1 Weight adjustment..................20 2 Height adjustment...................20 3 Fore/aft isolator..................20 4 Fore/aft adjustment.................21 5 Seat pan angle adjustment * ..............21 6 Seat depth adjustment* ................21 7 Backrest extension * *** ...............22 8 Lumbar support ** ..................22 9 Armrests ....................23 10 Armrest adjustment *................23...
  • Page 5: Safety Instructions

    Safety instructions The operating instructions should be read in full before use. • The operating instructions should be kept in the vehicle and always be at hand. • The driver seat may only be fitted, serviced and repaired by specialist personnel, in •...
  • Page 6: General Instructions

    General instructions If you make any changes to the standard seat (for example fitting parts which are not • original parts) it may no longer meet the safety standards to which it is te- sted.Functions may be impaired, threatening your safety. For this reason, any change in design of the seat must be approved by Seatbelts can be retrofitted to the driver seat.
  • Page 7: Seat Functions And Operation

    Weight adjustment The seat should be adjusted for the driver's weight by briefly pulling the actuator lever of the automatic weight and height adjuster (ar- row) with the vehicle at a standstill and the driver sitting on the seat. The driver must sit absolutely still during ad- justment.
  • Page 8: Fore/Aft Adjustment

    Fore/aft adjustment The fore/aft adjustment is released by lifting the locking lever. The locking lever must latch into the desired position. It should not be possible to move the driver seat into another position when it is locked. Seat pan angle adjustment* The angle of the seat pan can be individually adjusted.
  • Page 9: Backrest Extension

    Sitzfunktionen und Bedienung Backrest extension * (optional extra) The backrest extension can be individually adjusted for height by pulling it upwards over the various increments up to the end stop. To remove the backrest extension, pull it over the end stop. Lumbar support** By turning the adjustment knob (arrow) to the left or right, both the height and curvature of...
  • Page 10: Armrests

    Sitzfunktionen und Bedienung Armrests The armrests can be folded up if required and the height individually adjusted. To adjust the armrests for height, seperate the round cap (see arrow) from the cover, loosen the hexagon nut (size 13mm) and adjust the armrest to the desired position and tighten the nut again.
  • Page 11: Swivel

    Seat functions and operation Swivel* The swivel is released by pulling the locking lever (see arrow). The seat can then be swiv- elled 20° to the left or to the right. It can be locked into every 10° position. The locking lever must latch audibly into place.
