Summary of Contents for Russell Hobbs RHTOV211CAN

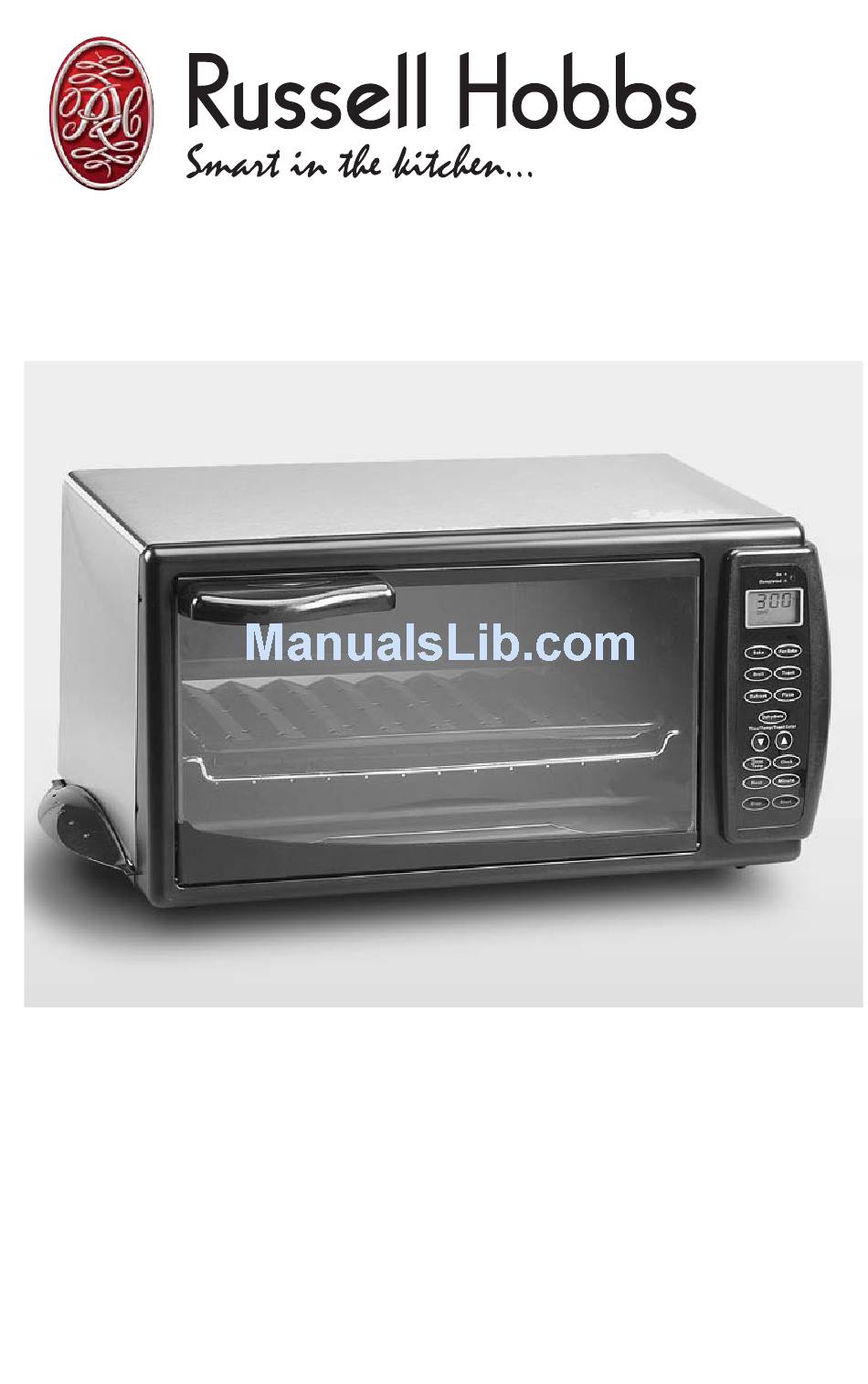

- Page 1 Convection Toaster Oven Broiler Model RHTOV211CAN Instructions and Warranty...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1.Read all instructions. 2.Do not touch hot surfaces. Use handles or knobs. 3.To protect against electrical shock do not immerse cord, plugs, or appliance in water or other liquid. 4.Close supervision is necessary when any appliance is used by or near children. -
Page 3: Additional Important Safeguards
Additional Important Safeguards CAUTION HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons or damage to property. 1.A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. -
Page 4: Polarized Plug
Polarized Plug This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. - Page 5 Getting To Know Your Russell Hobbs® Convection Toaster Oven Broiler PRODUCT MAY VARY SLIGHTLY FROM ILLUSTRATIONS. Door Handle Lower Heating Elements Concave Oven Back Glass Door Upper Heating Elements Display Window Control Panel Power Cord...
-
Page 6: Control Panel
Control Panel DISPLAY WINDOW Indicates time, function, crust color, amount of time left for completion of function and temperature. OPERATION Light will be on to show unit is in operation. COMPLETE Operation Light will flash continuously when function is completed. When door is opened the light will turn off. -
Page 7: Operating Instructions
Operating Instructions Before First Use 1. Read all instructions in this manual carefully. 2. Carefully unpack your Convection Toaster Oven Broiler and remove all packaging materials. 3. Place your Convection Toaster Oven Broiler on a level surface such as a countertop or tabletop. Be sure the sides, back, and top of the Convection Toaster Oven Broiler are at least four inches away from any walls, cabinets, or objects on the counter or table. -
Page 8: Cooking Containers
Cooking Containers • The Bake/Broil Pan included with the Convection Toaster Oven Broiler is suitable for items such as cookies, rolls, biscuits, nachos and pork chops. • A variety of standard baking dishes, such as an 8" round or square cake pan, a 6-cup muffin pan, and a 1 &... -
Page 9: Shelf Positions
Wire Rack, Pizza Pan, Broil Insert, Bake/Broil Pan, Crumb Tray and Dehydration Racks (Cont.) For best results use Bake/Broil Pan to bake, defrost, top brown, keep warm and to minimize clean up due to spills. See Figure 1 below for all Wire Rack Shelf Positions. -
Page 10: Programming The Clock
Wire Rack, Pizza Pan, Broil Insert, Bake/Broil Pan, Crumb Tray and Dehydration Racks (Cont.) CAUTION: APPLIANCE SURFACES ARE HOT DURING AND AFTER USE. CAUTION: Always wear protective, insulated oven mitts on hands when touching hot Oven, hot dishes or food, or when inserting or removing Wire Rack, Pizza Pan, Broil Insert, Bake/Broil Pan, Crumb Tray and Dehydration Racks (sold separately). - Page 11 Convection Toaster Oven Broiler Functions Programming Toast Function The Toast Function may also be used to top brown foods. 1. Plug unit into a 120 V outlet. Close the Glass Door. 2. Press the TOAST button. The default setting is medium toast color and three bars will appear in the Display Window.
- Page 12 Programming Fan Bake and Bake Functions 1. Plug unit into a 120 V outlet. Close the Glass Door. 2. Press the BAKE or FAN BAKE button to select desired program. 3. The default temperature for FAN BAKE and BAKE functions is 300˚F (This will appear on the Display Window).
- Page 13 Hints For Bake • The Convection Toaster Oven Broiler will not bake unless a time is selected. If no time is selected and the START button is pressed, the Convection Toaster Oven Broiler will beep to indicate that no time has been selected. •...
- Page 14 Programming Broil Function (Cont.) 7. Unplug Oven and allow to cool completely before cleaning. See User Maintenance Instructions. Unplug when not in use. NOTE: To change the Broiling time during the broiling process, you must start the programming sequence over. Press the STOP button. The default Broil temperature will appear in the Display Window.
- Page 15 Programming Defrost Function DO NOT USE THIS METHOD FOR MEAT, POULTRY OR FISH. 1. Plug unit into a 120 V outlet. Close the Glass Door. 2. Press the DEFROST button. The default defrosting time of 1:00 (1 hour) and DEF will appear in the Display Window. (See Figure 6.) 3.
- Page 16 Programming Pizza Function 1. Plug unit into a 120V outlet. Close the Glass Door. 2. To select a Pizza program according to the size of the pizza, press the PIZZA button once if cooking a 12-inch pizza. Press the PIZZA button twice if cooking an 8-inch pizza.
-
Page 17: Dehydrate Function
Dehydrate Function Dehydration Racks are required when using this function. They are not included with this Convection Oven but may be purchased separately. Please see separate order form, or contact our Consumer Relations Department by calling the number on the back of this Instruction Manual and ask for part number TOV211DEH. - Page 18 Glass Door And Exterior Cleaning 1. Unplug Oven and allow to cool before cleaning. 2. Wipe exterior with a damp cloth after each use. 3. To clean the Glass Door, use a glass cleaner or mild detergent and a damp cloth or plastic scouring pad. Do not use an abrasive cleaner or pad as they might scratch the finish.
-
Page 19: Time And Temperature Charts
Time and Temperature Charts NOTE: The charts are used as a reference guide only. To be sure that the food is done, use a cooking thermometer. Cooking times are for fresh foods (not frozen foods) at refrigerator temperature. Roast All cooking times are for use with the FAN BAKE function and the Oven temperature set to 350˚F. - Page 20 Time and Temperature Charts (Cont.) Broil Type of Cut Poultry Chicken Breasts bone-in, skin on Turkey Burgers Turkey Brats Pork American Pork Chops Pork Steaks Boneless Ham Steaks Sausage Patties, fresh Beef Ribeye Roast Sirloin Steak NY/KC Strip Steak T Bone Hamburger Patties Misc.
- Page 21 Recipes FIESTA CORN BREAD 1 cup all-purpose flour 1/2 cup corn meal 1/4 cup sugar 1-1/2 teaspoons baking powder 1/4 teaspoon salt 3/4 cup milk 3 tablespoons oil 1 egg, beaten 1 (4-ounce) can diced green chilies, drained 2 ounce jar, diced pimento, drained Preheat Convection Toaster Oven Broiler on Bake to 375˚F.
- Page 22 TOFFEE BARS Layer 1: 1 (8-ounce) package Jiffy® yellow cake mix 1 egg 3 tablespoons butter, melted Layer 2: 1 cup evaporated milk 1 egg 1 teaspoon vanilla extract Layer 3: 1/2 cup nuts (optional) 5 ounces toffee chips Preheat Convection Toaster Oven Broiler on Bake to 350˚F. Spray an 8 x 8-inch baking pan with non-stick spray.
- Page 23 BROILED SHRIMP SKEWERS 24 large shrimp, peeled and de-veined 4 tablespoons olive oil 3 tablespoons chopped fresh parsley 3 medium garlic cloves, minced salt and freshly ground black pepper lemon wedges to serve Rinse the shrimp in cold water and pat dry with paper towels. In a bowl, combine the olive oil, parsley, garlic, salt and pepper to season.
-
Page 24: Limited One-Year Warranty
For more information on our products, visit our website: www.maxim-toastmaster.com. ©2005 All rights reserved. Made in China To contact us, please write to, call, or email:...
