Page 2: Table Of Contents

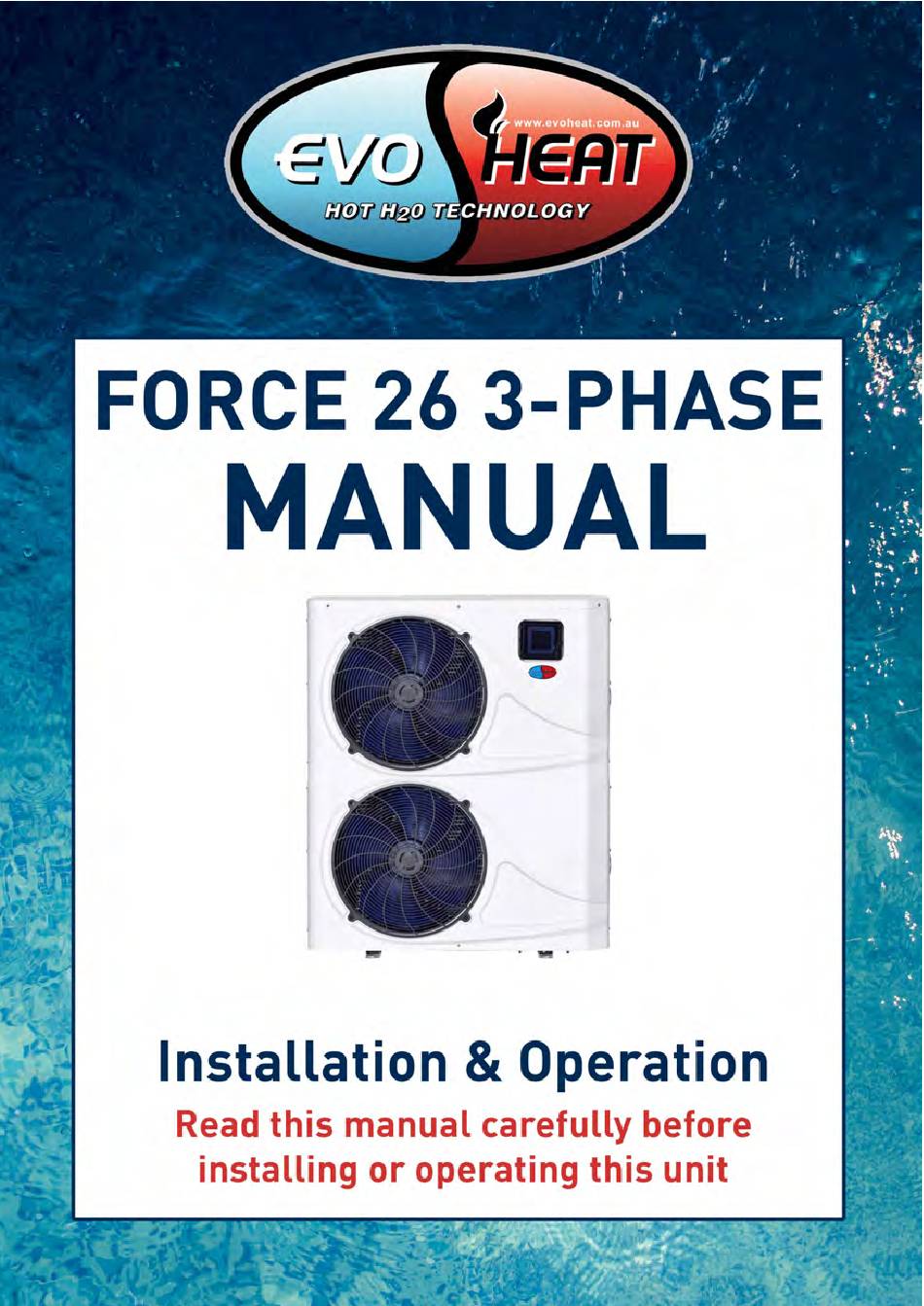

CONTENTS 1. Preface 2. Specifications 3. Installation and Connection 3.1 Installation of System 3.2 Swimming Pool Heat Pumps Location 3 .3 Location & minimum clearances 3.4 Swimming Pool Heat Pumps Plumbing 3.5 Swimming Pool Heat Pumps Electrical Wiring 3.6 Initial Start-up of the Unit 4. - Page 3 1. PREFACE In order to provide our customers with quality, reliability and versatility, this product has been made to strict production standards. This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit. The manufacture of this product will not be held responsible if someone is injured or the unit is damaged, as a result of improper installation, debugging, or unnecessary maintenance.
-
Page 4: Specifications
2.SPECIFICATION 2.2 The dimensions for Swimming Pool Heat Pump Unit unit：mm Model:Force 26 1003 Water Outlet Φ48.3 Water Inlet Φ48.3... - Page 5 2.SPECIFICATION unit：mm Model:Force 26-3 1003 Water Outlet Φ48.3 Water Inlet Φ48.3...
-
Page 6: Installation And Connection
3.INSTALLATION AND CONNECTION 3.1 Installation illustration Valve Chlorinator cell Water outlet Water supply Pool Water inlet Sand filter Water pump (or other type filter) Installation items: The factory only provides the main unit and the water unit; the other items in the illustration are necessary spare parts for the water system ,that provided by users or the installer. -
Page 7: Swimming Pool Heat Pumps Location
The Evo pool heat pump should be installed with a minimum clearance of at least 3.5m to the water’s edge. Furthermore, EvoHeat recommend installing the heat pump no greater than 7.5 meters away from the water’s edge due to heat loss from the piping. If you do not have a location with these suggested clearances, please contact our EvoHeat Tech Support Specialist on 1300 859 933 to discuss appropriate installation locations. -
Page 8: Swimming Pool Heat Pumps Plumbing
3.INSTALLATION AND CONNECTION 3.4 Swimming Pool Heat Pumps Plumbing The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special plumbing arrangements except bypass(please set the flow rate according to the nameplate). The water pressure drop is less than 10kPa at max. Flow rate. Since there is no residual heat or flame Temperatures, The unit does not need copper heat sink piping. -
Page 9: Swimming Pool Heat Pumps Electrical Wiring
3.INSTALLATION AND CONNECTION 3.5 Swimming Pool Heat Pumps Electrical Wiring NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect you against short circuits inside the unit. -
Page 10: Usage And Operation
4. USAGE AND OPERATION... - Page 11 4. USAGE AND OPERATION...
-
Page 12: Usage Of The Controller
4. USAGE AND OPERATION... - Page 13 4. USAGE AND OPERATION...
- Page 14 4. USAGE AND OPERATION...
- Page 15 4. USAGE AND OPERATION...
- Page 16 4. USAGE AND OPERATION...
- Page 17 4. USAGE AND OPERATION...
- Page 18 4. USAGE AND OPERATION...
-
Page 19: Parameter Table
4. USAGE AND OPERATION 3. Parameter table Default Remark Meaning 27℃ Heating inlet target temp. Adjustable 27℃ Cooling inlet target temp. Adjustable 27℃ Auto inlet target temp. Adjustable Remark: The wire controller can display the temperature unit as "℉" or "℃" according to the unit Model you bought. -
Page 20: Maintenance And Inspection
5. MAINTENANCE AND INSPECTION 5.1 Maintenance Check the water supply device and the release often. You should avoid the condition of no water or air entering into system, as this will influence unit's performance and reliability. You should clear the pool/spa filter regularly to avoid damage to the unit as a result of the dirty of clogged filter. -
Page 21: Trouble Shooting Guide
5. MAINTENANCE AND INSPECTION 5.2 Trouble Shooting Guide The common failure cause and solution. -
Page 22: Appendix
6.APPENDIX 1.Connection of PCB illustration OUT1 OUT2 CN19 AI06 AI05 OUT3 PC1001 AI04 OUT4 AI03 OUT5 AI02 AC-N AI01 CN16 Connections explanation： Meaning Symbol OUT1 Compressor of system1（220-230VAC） Water pump（220-230VAC） OUT2 OUT3 4way valve （220-230VAC） OUT4 High speed of fan motor（220-230VAC） OUT5 Low speed of fan motor（220-230VAC）... - Page 23 6.APPENDIX Caution & Warning 1. The unit can only be repaired by qualified installer centre personnel or an authorised dealer.（for Europe market） 2. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 24 6.APPENDIX (2) Cable specification 1. Single phase unit Nameplate Creepage protector Signal line maximum Phase line Earth line current No more 2×1.5mm 1.5mm 30mA less than 0.1 sec than 10A 2×2.5mm 2.5mm 30mA less than 0.1 sec 10~16A 2×4mm 30mA less than 0.1 sec 16 ~25A 2×6mm 6 mm...
-
Page 25: Warranty
EVOHEAT Pump Warranty 1. The titanium heat exchanger tubing is guaranteed against corrosion for a period of twenty five (25) years from the date of purchase when used with chlorine, salt, bromine or sea water. (*25 year warranty on the titanium heat exchanger is valid for Evo heat pumps purchased post 15.05.2018. If purchased prior please refer to your original operating manual for warranty details). -
Page 26: Warranty Registration
Suburb: * ________________________________________________________________________ Postcode: * _______________________________________________________________________ State: * _________________________________________________________________________ Email: * _________________________________________________________________________ Please tell us about which EvoHeat product you bought, who you bought it from and what you will be using it for. Product & Model: *_________________________________________________________________ Serial Number:* ____________________________________________________________________...
