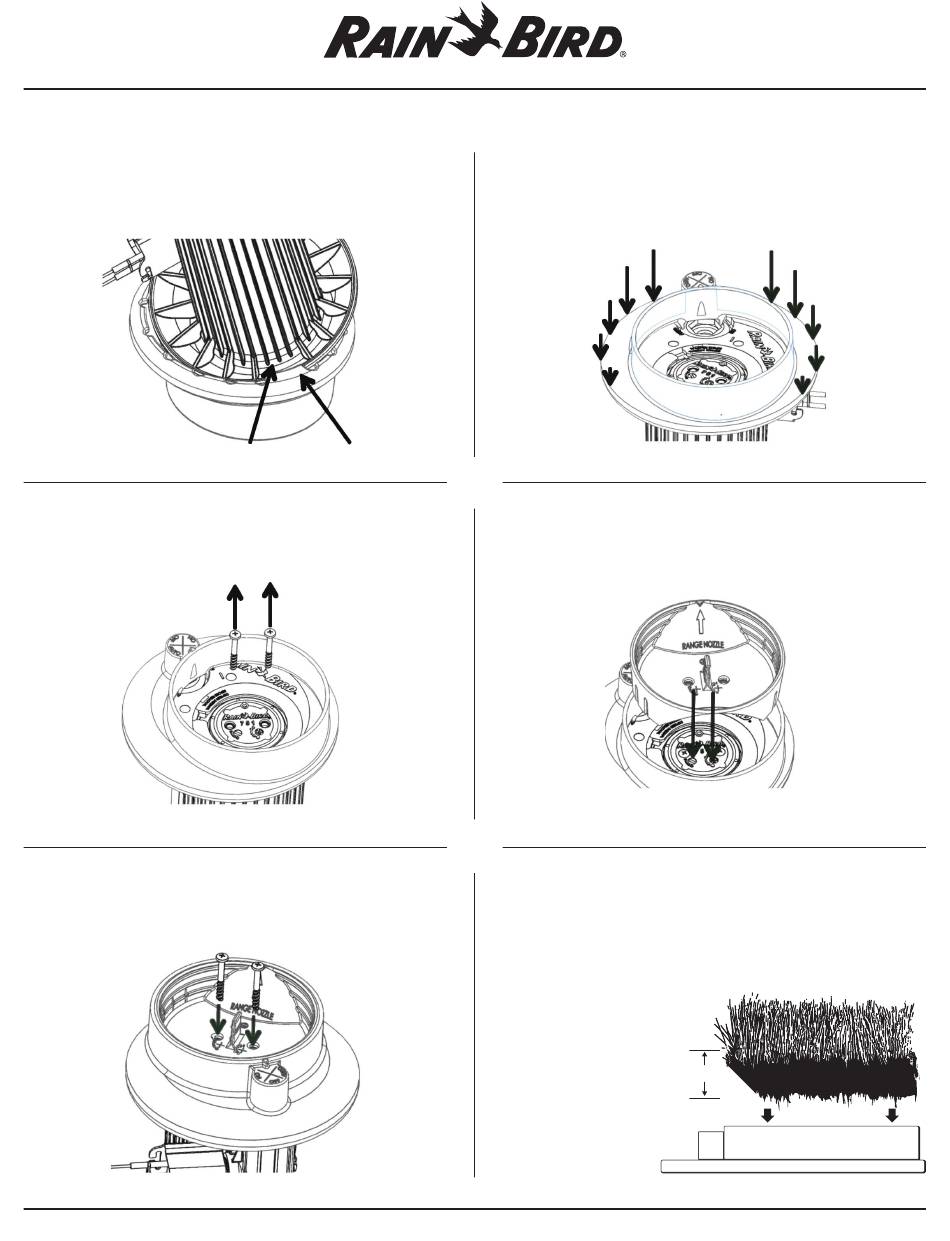

Golf Rotor Sod Cup Kit Installation Instructions
➊
Align wide tab on flange cover with wide
space on case.
➌
Using a Phillips head screw driver remove
screws from top of rotor.
➎
Place sod cup on top of rotor and secure
with screws.
www.rainbird.com
➋
Press flange cover onto case flange working
from wide tab towards valve switch, until
flange cover snaps into place.
➍
Align the adjustment ports on sod cup with
the adjustment screws on rotor.
➏
Using a standard golf hole cutter cut a sod
plug. Trim plug to a sod depth of 1 ¼ inches.
Trim plug to clear nozzle relief ramp. Place a
small slice in the center of the plug to accept
the pull up tab.
Install sod into cup
and press firmly
into place.
Registered Trademark of Rain Bird Corporation
®
1¼"
© 2018 Rain Bird Corporation 12/18
P/N: 213851
