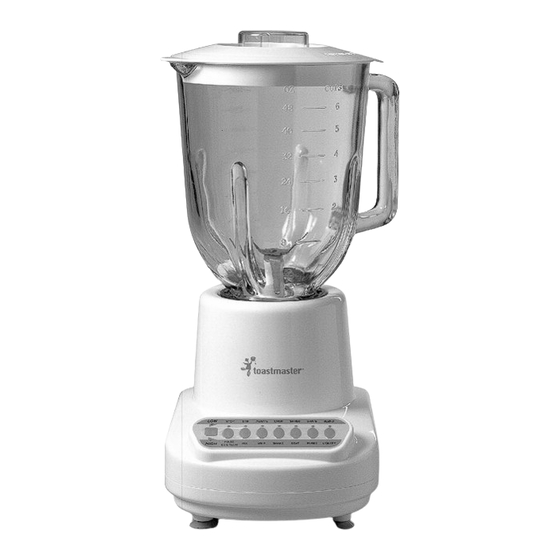

Toastmaster 1135 Use And Care Manual

12-speed blender chopper combo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
12-Speed Blender
Chopper Combo
USE AND CARE GUIDE
MODELS 1135 AND 1135CAN

Advertisement

Table of Contents
loading

Related Manuals for Toastmaster 1135

Summary of Contents for Toastmaster 1135

  • Page 1 12-Speed Blender Chopper Combo USE AND CARE GUIDE MODELS 1135 AND 1135CAN...

  • Page 2: Important Safeguards

    READ AND SAVE THESE INSTRUCTIONS WARNING: A risk of fire and electrical shock exists in all electrical appliances and may cause personal injury or death. Please follow all safety instructions. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: Read all instructions before using appliance.
  • Page 3 Always operate blender with cover in place. The use of attachments, including canning jars, not recommended or sold by Toastmaster, may cause fires, electrical shock or injury. When processing hot liquids, remove measuring cup from the two-piece cover. Never add to chopper bowl while appliance is operating.
  • Page 4 This product may vary slightly from illustration. FIGURE 1 - BLENDER 1. Measuring Cup (P/N 70659) 2. Cover (P/N 70660) 3. Glass Blending Jar (P/N 70661) 4. Gasket (P/N 70662) 5. Stainless Steel Blades (P/N 70663) 6. Collar (P/N 70664) FIGURE 2 - CHOPPER Motor Housing 12-speed Control Panel...
  • Page 5 FIGURE 3 COVER ASSEMBLY FIGURE 5 FIGURE 7 - CHOPPER ASSEMBLY 12-Speed Blender Chopper Combo Use and Care Guide Measuring Cover FIGURE 6 FIGURE 4 Tabs...

  • Page 6: Using Your Blender

    Using Your Blender 1. Before using your blender for the first time, wash blender components (1 thru 6) and chopper components (10 thru 12). Wash components as required after each use. CAUTION: BLADES ARE SHARP. HANDLE CAREFULLY. CAUTION: NEVER PLACE BLENDER MOTOR HOUSING OF APPLIANCE IN WATER OR OTHER LIQUIDS.
  • Page 7 Using Your Blender (cont.) Refer to Figure 8. LOW SPEED MODE (SPEEDS 1-6): Press the LOW button and the LOW indicator light will come on. Press and release the desired speed (STIR, AERATE, CHOP, SHRED, GRATE or BLEND). The light of the selected speed will come on.

  • Page 8: Crushing Ice

    Hot Ingredients NOTE: When processing hot foods, always remove the measuring cup from the cover before beginning. To prevent excessive heat expansion, remove measuring cup from cover before adding hot ingredients. Crushing Ice Follow steps 2-5 in USING YOUR BLENDER. Fill glass blending jar with 2 cups of ice cubes.
  • Page 9 How to Use: Chopper 1. Place the motor housing on a dry level surface. 2. Make sure the ON/OFF Switch located at the back of the motor housing is turned to the OFF position (O), see Figure 5. 3. Insert the gear box in the motor housing aligning the tabs with the grooves until it fits securely.
  • Page 10 Do (cont.) The removable lid insert may be used as a 2 oz. measuring device. Always remove bones, pits, hard shells, seeds, and cores before processing to avoid damaging the unit. If food sticks to sides of chopper bowl and blending action stops, turn the unit off, unplug, remove the chopper lid and carefully push food down using a rubber spatula.
  • Page 11 Care And Cleaning: Blender Press the ON/OFF switch to the OFF position (O) and unplug the appliance. Grasp glass blending jar handle and lift glass blending jar from the blender motor housing. Rinse with water to remove any large food particles that may have accumulated in the glass blending jar.

  • Page 12: Maintenance Instructions

    FIGURE 9 Care And Cleaning: Chopper 1. Press the ON/OFF switch to the OFF position (O) and unplug the appliance. 2. Turn the chopper bowl clockwise and lift up off of gear box. 3. Turn the chopper lid clockwise and remove. Pull the chopper blades off.
  • Page 13 Blending Guide Your blender features a variable speed control. While you may select any speed, the following list will help you determine where to set the control for various items. SPEEDS FOODS STIR Pancake Batter STIR Sauces AERATE Frozen Juice CHOP Chocolate Bars CHOP...
  • Page 14 SPEEDS FOODS CHOP Coffee Beans SHRED Bread SHRED Cabbage GRATE Cheese-soft GRATE Cheese-hard GRATE Orange/Lemon Peel BLEND Salad Dressing BLEND Frozen Drinks Creamed Soups Reconstituted WHIP Powdered Milk SHAKE Shakes/Malts MIXING PROCEDURES Add up to ⁄ cup beans. Chop 45-90 seconds or until desired consistency.

  • Page 15: Chopping Guide

    SPEEDS FOODS BEAT Instant Pudding PUREE Fruit PUREE Baby Food Vegetables LIQUEFY Fruit Toppings Chopping Guide Food Maximum Quantity Carrots ⁄ Apple ⁄ Cheese 1 oz. Eggs Meats ⁄ (raw or cooked) Walnuts ⁄ Onions ⁄ Parsley A Few results, 12-Speed Blender Chopper Combo Use and Care Guide MIXING PROCEDURES Add milk then mix.
  • Page 16 Place all the ingredients in the glass blending jar in the order listed. Cover and BLEND until smooth, from 15-60 seconds. Serve immediately. Each recipe makes 2-4 servings. CRANAPPLE COCKTAIL ⁄ cups cold cranapple juice 2 TBL lemon juice 8-10 ice cubes, added one at a time BANANA SMOOTHEE 2 cups cold milk...
  • Page 17 Place all ingredients into glass blending jar in order listed. MIX for 30 seconds. Coat meat, chicken or fish with mixture. Marinate in refrigerator at least 30 minutes. (Quantities will marinate 1-1 RED WINE (Use with beef and lamb) ⁄ cup red wine vinegar 2 TBL vegetable oil 1 TBL Dijon mustard...
  • Page 18 ITALIAN ANTIPASTO SPREAD 1 large garlic clove, peeled ⁄ cup packed Italian parsley or basil leaves ⁄ cup pitted drained calamata olives ⁄ cup drained sun dried tomatoes packed in oil 1 tablespoon oil from sun dried tomatoes or olive oil ⁄...
  • Page 19 VEGETABLE CREAM SOUP ⁄ cup margarine 1 cup cauliflower, cut into pieces 1 cup broccoli, cut into pieces ⁄ cup carrots, cut into pieces ⁄ cup onion, cut into pieces 1 cup cold milk ⁄ cup chicken broth 1 cup cream Melt butter in pan and saute vegetables until tender.

  • Page 20: Limited One-Year Warranty

    This warranty gives you specific legal rights and you may have other rights under the laws of your jurisdiction. For more information on our products, visit our website: www.maxim-toastmaster.com. To contact us, please write to, call, or email: Consumer Relations Department...
  • Page 21 Date code (stamped on bottom)________________________________ EVERYBODY EATS. It’s a fact of life. But sometimes preparing meals can become a chore. That’s why TOASTMASTER has been invited into millions of kitchens just like yours so we can HELP YOU MASTER your mixing, baking, grilling, toasting, brewing, heating and serving tasks WITH EASE AND STYLE.
  • Page 22 Questions toll free 1-800-947-3744 Call Monday – Friday, 8:00 a.m. - 5:30 p.m. CST www.maxim-toastmaster.com 1135 AND 1135CAN...
