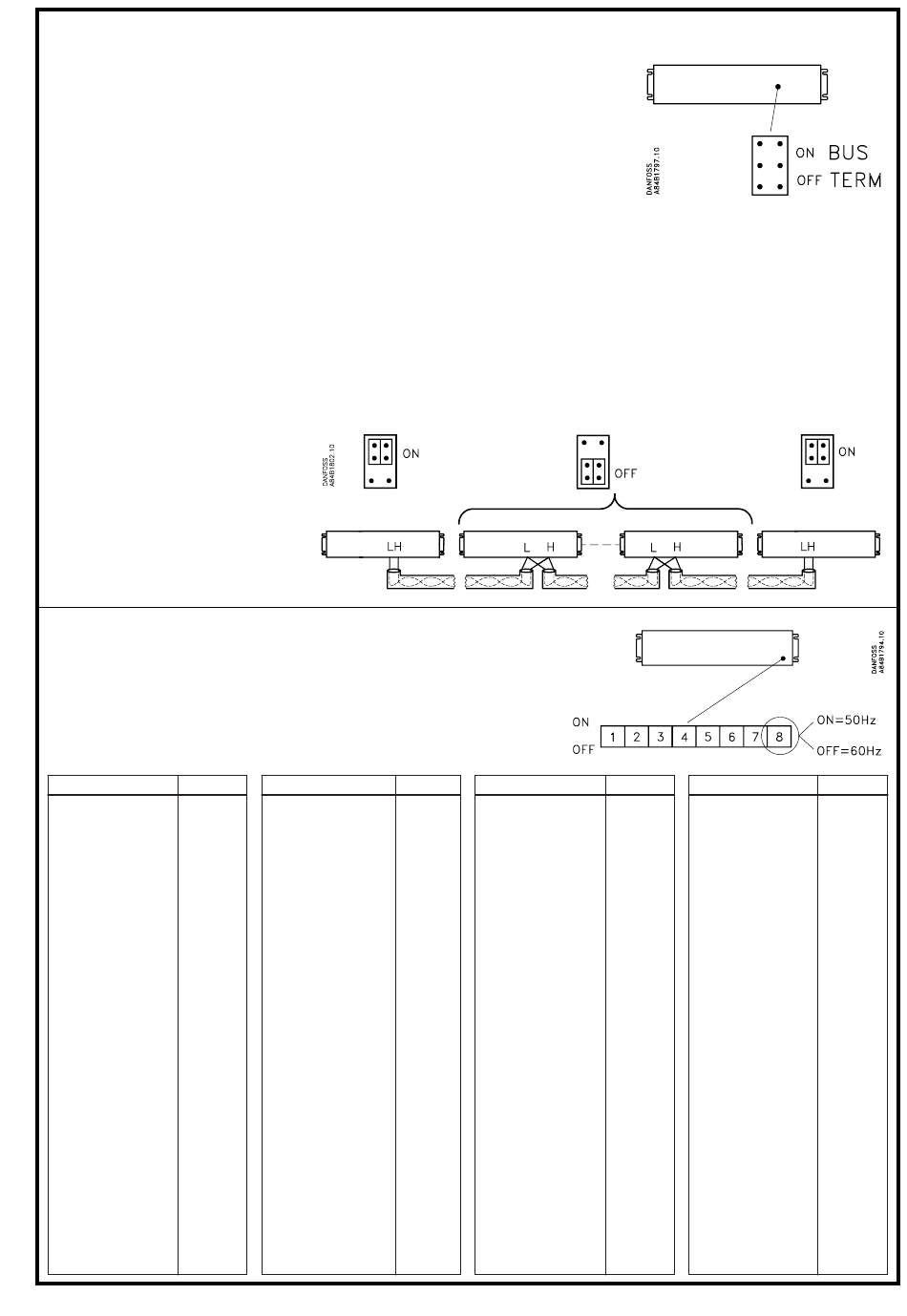

Indstilling af BUSTERM
Setting of BUSTERM
Einstellung des BUSTERM
Réglage de BUSTERM (bouclage du câble)
Ajuste de BUSTERM
På apparater, der viderefører datasignalet, sættes omskifteren i
stilling OFF. På øvrige apparater i stilling ON.
On units transferring the data signal the changeover switch must
be set in position OFF. On other units in position ON.
Bei Reglern, die das Datensignal weitergeben, wird der Umschalter
auf Position OFF gestellt. An den übrigen Reglern auf Position ON
(am Ende des Ringleitung).
Sur les appareils qui doivent transférer le signal, mettre ce
sélecteur en position OFF, sur les autres sur ON.
En unidades que transfieren los datos, ajustar el selector en
positión OFF, en las demás unidades en posición ON.
Indstilling af adressekode og netfrekvens
Setting of address code and mains frequency
Einstellen des Adressencodes und der Netzfrequenz.
Réglage de l'adresse et de la fréquence d'alimentation
Ajuste del código de dirección y frecuencia de alimentación
"1" = ON, "0" = OFF
1 2 3 4 5 6 7
No.
1 0 0 0 0 0 0
0 1 0 0 0 0 0
1 1 0 0 0 0 0
0 0 1 0 0 0 0
1 0 1 0 0 0 0
0 1 1 0 0 0 0
1 1 1 0 0 0 0
0 0 0 1 0 0 0
1 0 0 1 0 0 0
0 1 0 1 0 0 0
10
1 1 0 1 0 0 0
11
0 0 1 1 0 0 0
12
1 0 1 1 0 0 0
13
0 1 1 1 0 0 0
14
1 1 1 1 0 0 0
15
0 0 0 0 1 0 0
16
1 0 0 0 1 0 0
17
0 1 0 0 1 0 0
18
1 1 0 0 1 0 0
19
0 0 1 0 1 0 0
20
1 0 1 0 1 0 0
21
0 1 1 0 1 0 0
22
1 1 1 0 1 0 0
23
0 0 0 1 1 0 0
24
1 0 0 1 1 0 0
25
0 1 0 1 1 0 0
26
1 1 0 1 1 0 0
27
0 0 1 1 1 0 0
28
1 0 1 1 1 0 0
29
0 1 1 1 1 0 0
30
AKC 114
1 2 3 4 5 6 7
1
1 1 1 1 1 0 0
2
0 0 0 0 0 1 0
3
1 0 0 0 0 1 0
4
0 1 0 0 0 1 0
5
1 1 0 0 0 1 0
6
0 0 1 0 0 1 0
7
1 0 1 0 0 1 0
8
0 1 1 0 0 1 0
9
1 1 1 0 0 1 0
0 0 0 1 0 1 0
1 0 0 1 0 1 0
0 1 0 1 0 1 0
1 1 0 1 0 1 0
0 0 1 1 0 1 0
1 0 1 1 0 1 0
0 1 1 1 0 1 0
1 1 1 1 0 1 0
0 0 0 0 1 1 0
1 0 0 0 1 1 0
0 1 0 0 1 1 0
1 1 0 0 1 1 0
0 0 1 0 1 1 0
1 0 1 0 1 1 0
0 1 1 0 1 1 0
1 1 1 0 1 1 0
0 0 0 1 1 1 0
1 0 0 1 1 1 0
0 1 0 1 1 1 0
1 1 0 1 1 1 0
0 0 1 1 1 1 0
Instructions RI.1M.C5.53 © Danfoss 02/2002
No.
1 2 3 4 5 6 7
31
1 0 1 1 1 1 0
32
0 1 1 1 1 1 0
33
1 1 1 1 1 1 0
34
0 0 0 0 0 0 1
35
1 0 0 0 0 0 1
36
0 1 0 0 0 0 1
37
1 1 0 0 0 0 1
38
0 0 1 0 0 0 1
39
1 0 1 0 0 0 1
40
0 1 1 0 0 0 1
41
1 1 1 0 0 0 1
42
0 0 0 1 0 0 1
43
1 0 0 1 0 0 1
44
0 1 0 1 0 0 1
45
1 1 0 1 0 0 1
46
0 0 1 1 0 0 1
47
1 0 1 1 0 0 1
48
0 1 1 1 0 0 1
49
1 1 1 1 0 0 1
50
0 0 0 0 1 0 1
51
1 0 0 0 1 0 1
52
0 1 0 0 1 0 1
53
1 1 0 0 1 0 1
54
0 0 1 0 1 0 1
55
1 0 1 0 1 0 1
56
0 1 1 0 1 0 1
57
1 1 1 0 1 0 1
58
0 0 0 1 1 0 1
59
1 0 0 1 1 0 1
60
0 1 0 1 1 0 1
Fabriksindstilling: OFF
Factory setting: OFF
Betriebsstellung: OFF
Réglage départ usine: OFF
Ajuste de fábrica: OFF
No.
1 2 3 4 5 6 7
61
1 1 0 1 1 0 1
62
0 0 1 1 1 0 1
63
1 0 1 1 1 0 1
64
0 1 1 1 1 0 1
65
1 1 1 1 1 0 1
66
0 0 0 0 0 1 1
67
1 0 0 0 0 1 1
68
0 1 0 0 0 1 1
69
1 1 0 0 0 1 1
70
0 0 1 0 0 1 1
71
1 0 1 0 0 1 1
72
0 1 1 0 0 1 1
73
1 1 1 0 0 1 1
74
0 0 0 1 0 1 1
75
1 0 0 1 0 1 1
76
0 1 0 1 0 1 1
77
1 1 0 1 0 1 1
78
0 0 1 1 0 1 1
79
1 0 1 1 0 1 1
80
0 1 1 1 0 1 1
81
1 1 1 1 0 1 1
82
0 0 0 0 1 1 1
83
1 0 0 0 1 1 1
84
0 1 0 0 1 1 1
85
1 1 0 0 1 1 1
86
0 0 1 0 1 1 1
87
1 0 1 0 1 1 1
88
0 1 1 0 1 1 1
89
1 1 1 0 1 1 1
90
0 0 0 1 1 1 1
No.
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
7
