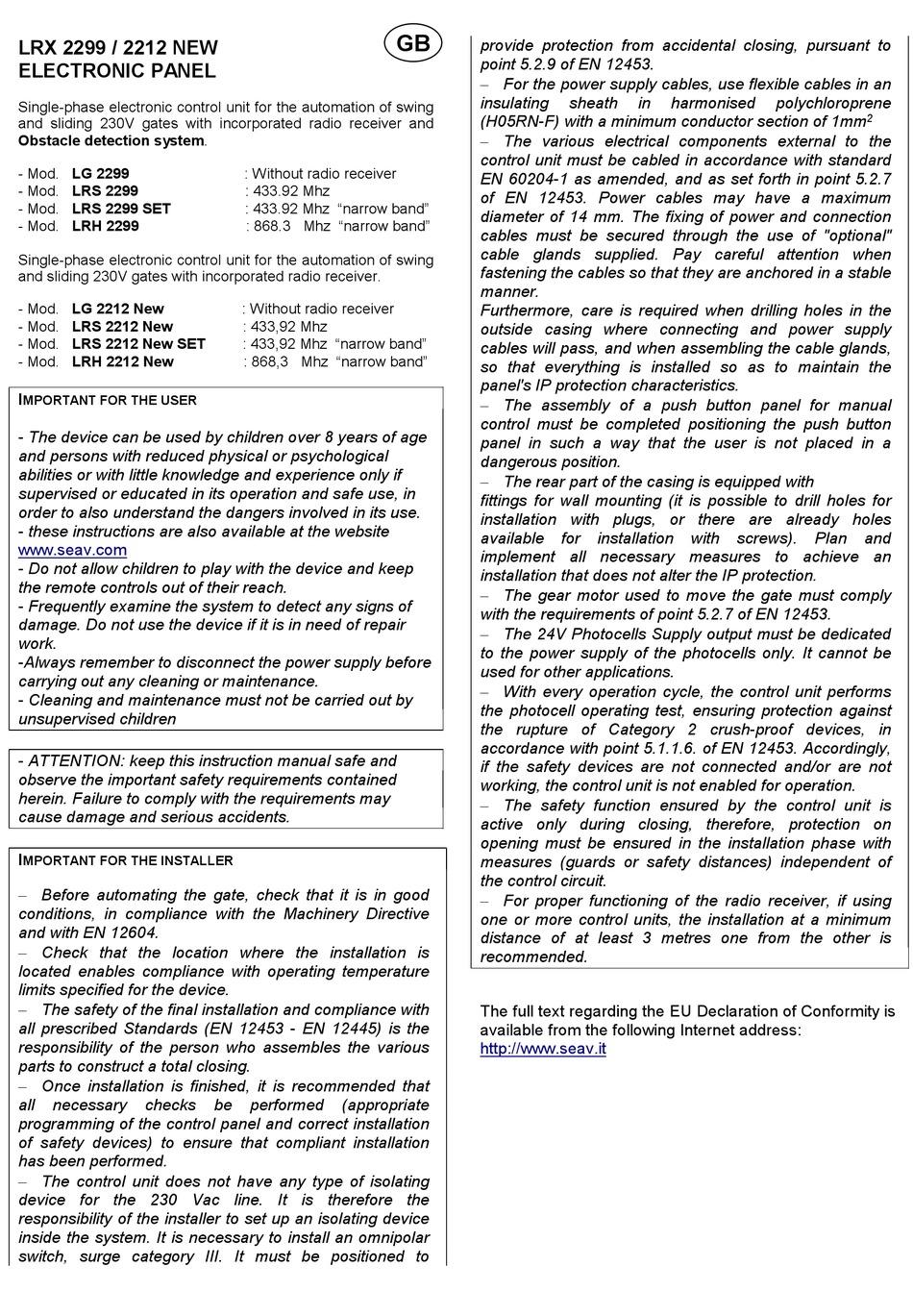

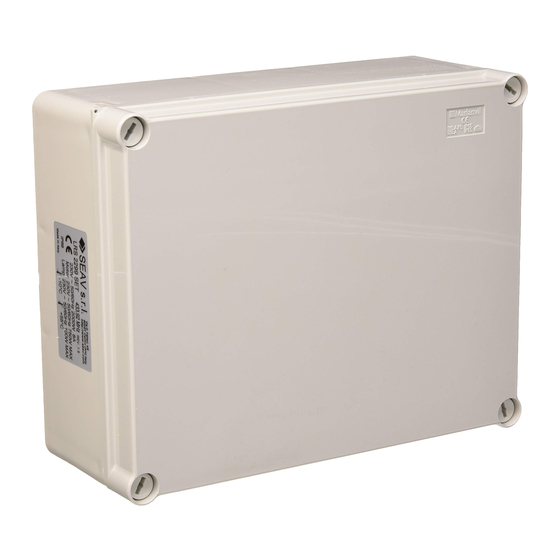

Seav LR 2299 Series Manual

LRX 2299 / 2212 NEW
ELECTRONIC PANEL
Single-phase electronic control unit for the automation of swing
and sliding 230V gates with incorporated radio receiver and
Obstacle detection system.
- Mod. LG 2299
- Mod. LRS 2299
- Mod. LRS 2299 SET
- Mod. LRH 2299
Single-phase electronic control unit for the automation of swing
and sliding 230V gates with incorporated radio receiver.
- Mod. LG 2212 New
- Mod. LRS 2212 New
- Mod. LRS 2212 New SET
- Mod. LRH 2212 New
I
MPORTANT FOR THE USER
- The device can be used by children over 8 years of age
and persons with reduced physical or psychological
abilities or with little knowledge and experience only if
supervised or educated in its operation and safe use, in
order to also understand the dangers involved in its use.
- these instructions are also available at the website
www.seav.com
- Do not allow children to play with the device and keep
the remote controls out of their reach.
- Frequently examine the system to detect any signs of
damage. Do not use the device if it is in need of repair
work.
-Always remember to disconnect the power supply before
carrying out any cleaning or maintenance.
- Cleaning and maintenance must not be carried out by
unsupervised children
- ATTENTION: keep this instruction manual safe and
observe the important safety requirements contained
herein. Failure to comply with the requirements may
cause damage and serious accidents.
I
MPORTANT FOR THE INSTALLER
 Before automating the gate, check that it is in good
conditions, in compliance with the Machinery Directive
and with EN 12604.
 Check that the location where the installation is
located enables compliance with operating temperature
limits specified for the device.
 The safety of the final installation and compliance with
all prescribed Standards (EN 12453 - EN 12445) is the
responsibility of the person who assembles the various
parts to construct a total closing.
 Once installation is finished, it is recommended that
all necessary checks
programming of the control panel and correct installation
of safety devices) to ensure that compliant installation
has been performed.
 The control unit does not have any type of isolating
device for the 230 Vac line. It is therefore the
responsibility of the installer to set up an isolating device
inside the system. It is necessary to install an omnipolar
switch, surge category III. It must be positioned to
: Without radio receiver
: 433.92 Mhz
: 433.92 Mhz "narrow band"
: 868.3 Mhz "narrow band"
: Without radio receiver
: 433,92 Mhz
: 433,92 Mhz "narrow band"
: 868,3 Mhz "narrow band"
be performed (appropriate
GB
provide protection from accidental closing, pursuant to
point 5.2.9 of EN 12453.
 For the power supply cables, use flexible cables in an
insulating sheath
(H05RN-F) with a minimum conductor section of 1mm
 The various electrical components external to the
control unit must be cabled in accordance with standard
EN 60204-1 as amended, and as set forth in point 5.2.7
of EN 12453. Power cables may have a maximum
diameter of 14 mm. The fixing of power and connection
cables must be secured through the use of "optional"
cable glands supplied. Pay careful attention when
fastening the cables so that they are anchored in a stable
manner.
Furthermore, care is required when drilling holes in the
outside casing where connecting and power supply
cables will pass, and when assembling the cable glands,
so that everything is installed so as to maintain the
panel's IP protection characteristics.
 The assembly of a push button panel for manual
control must be completed positioning the push button
panel in such a way that the user is not placed in a
dangerous position.
 The rear part of the casing is equipped with
fittings for wall mounting (it is possible to drill holes for
installation with plugs, or there are already holes
available for
implement all necessary measures to achieve an
installation that does not alter the IP protection.
 The gear motor used to move the gate must comply
with the requirements of point 5.2.7 of EN 12453.
 The 24V Photocells Supply output must be dedicated
to the power supply of the photocells only. It cannot be
used for other applications.
 With every operation cycle, the control unit performs
the photocell operating test, ensuring protection against
the rupture of Category 2 crush-proof devices, in
accordance with point 5.1.1.6. of EN 12453. Accordingly,
if the safety devices are not connected and/or are not
working, the control unit is not enabled for operation.
 The safety function ensured by the control unit is
active only during closing, therefore, protection on
opening must be ensured in the installation phase with
measures (guards or safety distances) independent of
the control circuit.
 For proper functioning of the radio receiver, if using
one or more control units, the installation at a minimum
distance of at least 3 metres one from the other is
recommended.
The full text regarding the EU Declaration of Conformity is
available from the following Internet address:
http://www.seav.it
in harmonised
installation with screws).
polychloroprene
