CHARGING MOUNT
USER GUIDE
ATTACHABLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC4088-1657 and is the answer not in the manual?

Questions and answers

Related Manuals for Socket AC4088-1657

Summary of Contents for Socket AC4088-1657

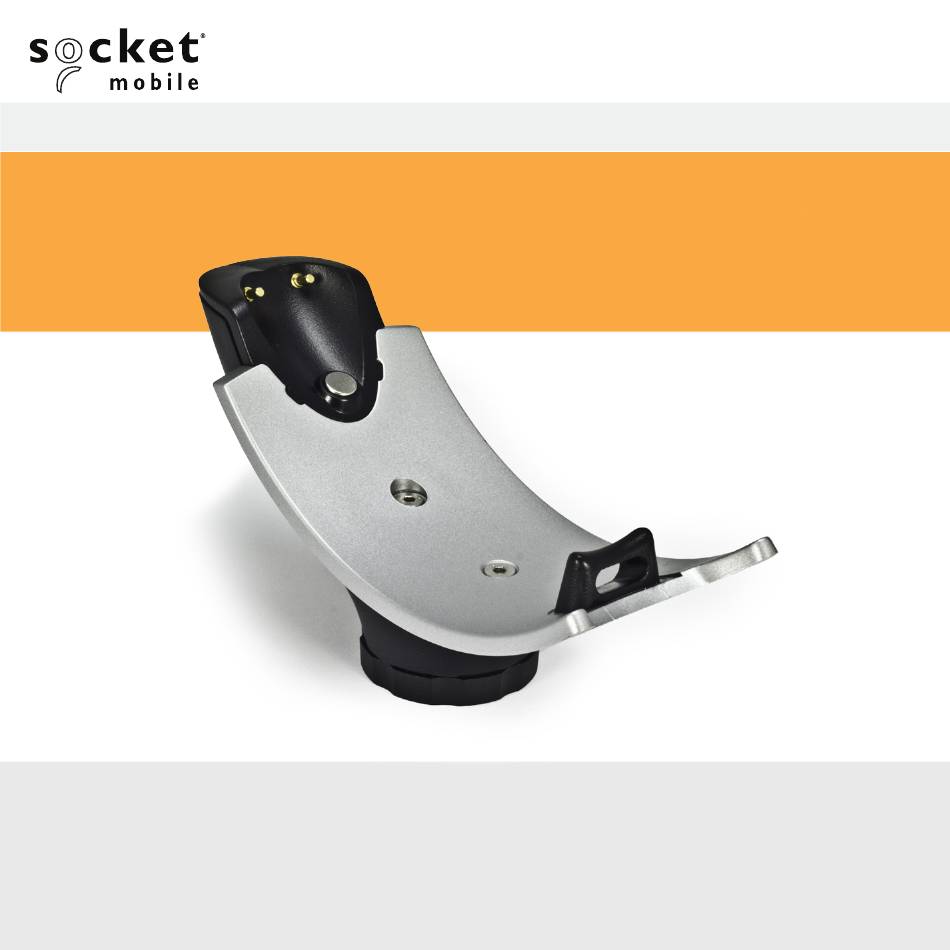

  • Page 1 CHARGING MOUNT USER GUIDE ATTACHABLE...

  • Page 2: Package Contents

    © 2017 Socket Mobile, Inc. All rights reserved. Socket, the Socket logo, and SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained herein may be those of their respective owners.

  • Page 3: Product Information

    PRODUCT INFORMATION Charging Pins LED* Magnet Hook Charging Mount *Illuminates Red when connected to AC adapter.

  • Page 4: Assembly Overview

    ASSEMBLY OVERVIEW 1/4” - 20 Tapered Machine lag-screw bolt thread Screws into Screws into wooden camera mount or surface Charging Mount A. Charging Mount 2 x Hex Nuts Micro USB (2m) Hanger Bolt** C. Cushion Crown *Optional for Camera Mount (See page 9) D.
  • Page 5 HOW TO CONNECT USB CABLE A. Remove Micro USB cover. B. Insert Micro USB connector into port and fit usb cable into the cord keeper. C. Secure the cable to prevent from movement.
  • Page 6 CHARGING MOUNT OPERATIONS When charging the scanner, make sure the charging pins on the Mount and the scanner make contact with each other and the red LED on the Mount is illuminated. “Beep Beep”*...
  • Page 7 CHARGING MOUNT OPERATIONS 4-6 inches (10 - 15 cm)

  • Page 8: Command Barcodes

    COMMAND BARCODES Charging Mount Modes Mobile Mode - Normal (default)* Scanning this bar code will enable the scanner to enter mobile mode. It will always be in manual trigger mode even when placed in the mount or cradle. *Scanner Factory Reset returns to Mobile #FNB 41FBA50000# Mode.

  • Page 9: Auto Mode

    AUTO MODE Auto Mode (In the Mount) Notification Action Behavior Beep LED Activity Vibrate Pattern Place Scanner High-high Battery None Scanner in switches to tone confirms Status LED the Mount Presentation proper seating* is Disabled Mode Place a Decode Bar 1 Beep when Green LED None...
  • Page 10 AUTO MODE Mobile Mode (Not in the Mount) Notification Action Behavior Beep Vibrate Pattern Activity Remove the Scanner None Battery Enabled Scanner from switches Status LED the Mount to Mobile is Enabled and press the Mode Trigger button Press the Decode 1 Beep Green LED...
  • Page 11 AUTO MODE (CONTINUED) 1. Pair and connect the 7Qi/7Xi/D750 to your device prior to placing the scanner in Auto Mode. The Scanner is not discoverable when in Auto Mode and in the Mount. This facilitates a fast connection to the current connected device when powered on (for example the start of the new business day).
  • Page 12 INSTRUCTIONS FOR MOUNTING ON WOODEN SURFACE We include a Hanger Bolt to secure the Charging Mount directly to a wooden surface. Since the Pem Cap connects to a Camera Mount, popu- lar with IP Cameras, many OEM solutions are available which do not require the Hanger Bolt. If you plan to use the Hanger Bolt follow the special instructions for mounting on a wooden surface.
  • Page 13 INSTRUCTIONS FOR MOUNTING ON WOODEN SURFACE 1/4“ x 13/4” Special instructions for mounting on wooden surface: 1. Screw two Hex nuts (1/4”-20 thread, not included) onto the machine-threaded portion of the Hanger Bolt. 2. Use an open-ended wrench to lock the nuts against each other. 3.
  • Page 14 CONFIGURATION WHEN USING A CAMERA MOUNT A. Attach the Pem cap to your Camera Mount (1/4” - 20, 3/4” depth thread) and turn to the right. Attach the Charging Mount to the Pem cap.

  • Page 15: Product Specifications

    PRODUCT SPECIFICATIONS Dimensions Charging Mount Width 1.80 in (46 mm) Charging Mount Length 5.50 in (140 mm) Antimicrobial Rating JLS z2801:2000 Test: 2.49 on MRSA 6.07 when cleaned with SaniCloth Plus cloth wipes Biosafe HM4100, EPA#83019-1 COMPLIANCE STATEMENT CE MARKING AND EUROPEAN UNION COMPLIANCE The unit under test was found compliant with all the applicable Direc- tives, 2004/108/EC and 2006/95/EC.

  • Page 16: Helpful Resources

    HELPFUL RESOURCES Technical Support & Product Registration: http://support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Socket Mobile Developer Program: Learn more at: https://www.socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Command Barcodes (Advanced Scanner Configurations) can be download at: https://www.socketmobile.com/support/downloads...
  • Page 18 2017 6430-00362E Printed in U.S.A.
