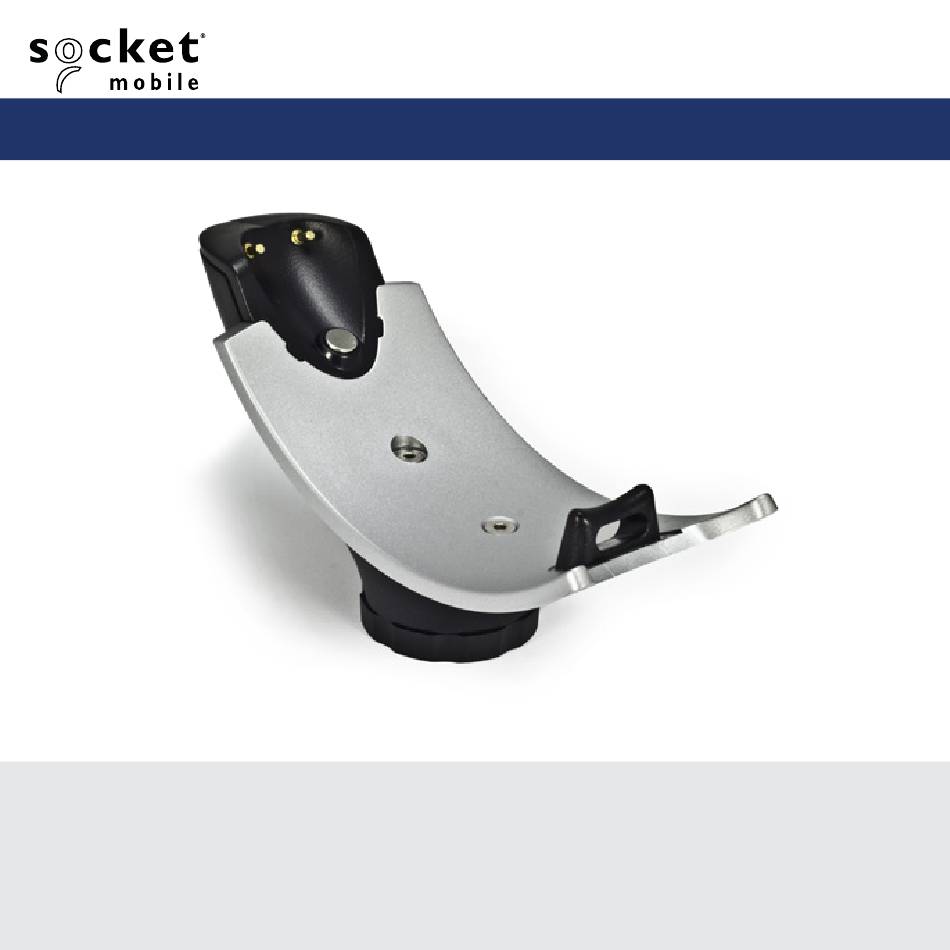

Assembly Overview 1/4” - 20 Tapered Machine lag-screw bolt thread Screws into Screws into wooden camera mount surface or Charging Mount Charging Mount 2 x Hex Nuts Micro USB (2m) Hanger Bolt** Cushion Crown *Optional for Camera Mount (see page 14) Pem Cap / Camera Mount* **Optional for table mount...
Page 5
How to connect USB Cable A. Remove Micro USB cover. B. Insert Micro USB connector into port and fit usb cable into the cord keeper. C. Secure the cable to prevent from movement.
Page 6
Charging Mount Operations When charging the scanner, make sure the charging pins on the Mount and the scanner make contact with each other and the red LED on the Mount is illumi- nated. “Beep Beep”*...
Command Barcodes Charging Mount Modes Mobile Mode - Normal (default)* Scan- ning this barcode will enable the scan- ner to enter mobile mode. It will always be in manual trigger mode even when placed in the mount or cradle. *Scanner Factory Reset returns to Mo- #FNB 41FBA50000# bile Mode.
Auto Mode Auto Mode (In the Mount) Notification Action Behavior Beep LED Activ- Vibrate Pattern Place Scanner High-high Battery None Scanner in switches to tone confirms status LED the Mount Presenta- proper seat- is disabled tion Mode ing* Place a Decode 1 Beep when Green...
Page 10
Auto Mode Mobile Mode (Not in the Mount) Notification Action Behavior Beep Vibrate Pattern Activity Remove Scanner None Battery Enabled the Scanner switches Status LED from the to Mobile is Enabled Mount and Mode press the Trigger but- Press the Decode 1 Beep Green...
Page 11
Auto Mode (Continued) 1. Pair and connect the D740, D745, D750, D755, D760, S740, S760 to your device prior to placing the scanner in Auto Mode. The Scan- ner is not discoverable when in Auto Mode and in the Mount. This facilitates a fast connection to the current connected device when powered on (for example the start of the new business day).
Page 12
Instructions for Mounting on wooden surface We include a Hanger Bolt to secure the Charging Mount directly to a wooden surface. Since the Pem Cap connects to a Camera Mount, popular with IP Cameras, many OEM solutions are available which do not require the Hanger Bolt.
Page 13
Instructions for Mounting on wooden surface 1/4“ x 13/4” Special instructions for mounting on wooden surface: 1. Screw two Hex nuts (1/4”-20 thread, not included) onto the machine-threaded portion of the Hanger Bolt. 2. Use an open-ended wrench to lock the nuts against each other. 3.
Page 14
Configuration When Using a Camera Mount Attach the Pem cap to your Camera Mount (1/4” - 20, 3/4” depth thread) and turn to the right. Attach the Charging Mount to the Pem cap.
Product Specifications Dimensions Charging Mount Width 1.80 in (46 mm) Charging Mount Length 5.50 in (140 mm) Antimicrobial Rating JLS z2801:2000 Test: 2.49 on MRSA 6.07 when cleaned with SaniCloth Plus cloth wipes Biosafe HM4100, EPA#83019-1 Compliance Statement CE MARKING AND EUROPEAN UNION COMPLIANCE The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC.
