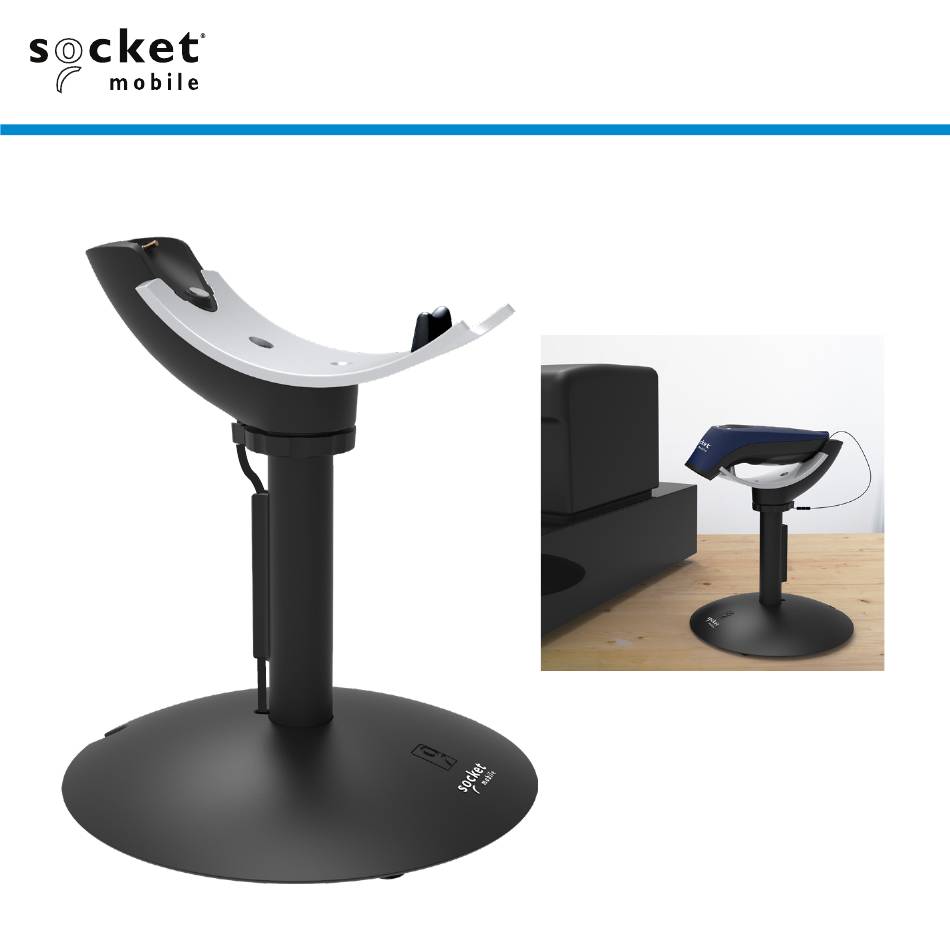

- Page 1 USERGUIDE CHARGING STAND...
-
Page 2: Package Contents
Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade... -
Page 3: Product Information
PRODUCT INFORMATION Charging Pins Light* Magnet Hook Slot for security cable Charging Cable *Illuminates Red when connected to AC Power. - Page 4 *ATTACHING THE SECURITY CABLE Step 1 Step 2 Step 3 Step 4 *Security cable comes Pre-installed for your convenience. To remove, follow step 2 and step 1.
- Page 5 INSERTING THE POST TO THE BASE Insert the post into the top of the base, lining up the marker on the post to the unlock icon. Push down and turn the post towards the lock icon until you hear a click. Run the USB cord through the channel at the bottom of the base.
- Page 6 CHARGING STAND OPERATIONS The charging pins must align to supply power to the scanner. The red light will illuminate and the scanner will beep twice.
- Page 7 CHARGING STAND OPERATIONS Approximately 4-8 inches* (10-20 cm) *When set to Auto Scan with Socket Mobile’s 2D barcode scanners (7Qi, 7Xi, D740, D750, D760, S740, S760), the barcode should be 4 to 8 inches away.
- Page 8 OPTIONAL TABLE MOUNTING Two keyholes are provided on the Charging Stand base for an optional installation on a wooden surface (screws and drill template included). 1. Place the Charging Stand on the drill template and position these in the desired location. Rotate the Charging Stand to align with the solid notch (not the dotted notch) on the template.
- Page 9 OPTIONAL TABLE MOUNTING Magnet Command barcode for configuring Auto Scan Model: Charging Stand Do Not Expose To Extreme Temperatures Auto Scan © 2019 Socket Mobile, Inc. Made in Singapore Magnet Magnet Notch for charging cable Keyholes for table mounting...
-
Page 10: Command Barcodes
COMMAND BARCODES Charging Stand Modes Auto Scan Scan the barcode to enable Auto Scan. This will allow the scanner to automatically scan barcodes without pressing the scan button. #FNB 41FBA50003# Manual Mode - Normal (default) Scan the barcode to configure the scanner back to normal. - Page 11 COMMAND BARCODES Charging Stand Modes Stand Mode* Scan the barcode to configure the scanner is permanently in Auto Scan mode, regardless whether it is connected to power or not. #FNB 41FBA50001# *This mode will drain the battery faster if not connected to...
- Page 12 AUTO SCANNING MODE (CONTINUED) 1. Scan command barcode to place your scanner in Auto Scan. Note: Turn off host device’s Bluetooth before scanning command barcode. 2. Once the scanner is in Auto Scan, it will switch to automatic scanning when it detects power coming from the charging pins of the Dock or Stand.
-
Page 13: Autoscan Mode
AUTO SCAN MODE How Auto Scanning Mode Works in the Stand or Dock Notification Action Behavior Beep Pattern Light Activity Vibrate Place Scanner Scanner High-high tone Battery Status None in the Stand switches to confirms proper Light is Auto Scan Mode seating* Disabled Place a barcode... -
Page 14: Product Specifications
PRODUCT SPECIFICATIONS Dimensions Stand Height 6.5 in (165 mm) Charging Mount Width 1.80 in (46 mm) Charging Mount Length 5.50 in (140 mm) Base Diameter 5.75 in (146mm) Total Weight Without Scanner and Power Adapter 12.7 oz (360 g) Antimicrobial Rating JLS z2801:2000 Test: 2.49 on MRSA 6.07 when cleaned with SaniCloth... -
Page 15: Helpful Resources
Phone: 800-279-1390 +1-510-933-3020 (worldwide) socketmobile.com/warranty-checker Warranty Checker: Socket Mobile Developer Program: socketmobile.com/developer Download Socket Mobile’s scanner User Guide and Command Barcodes at socketmobile.com/downloads COMPLIANCE STATEMENT CE MARKING AND EUROPEAN UNION COMPLIANCE The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC.
