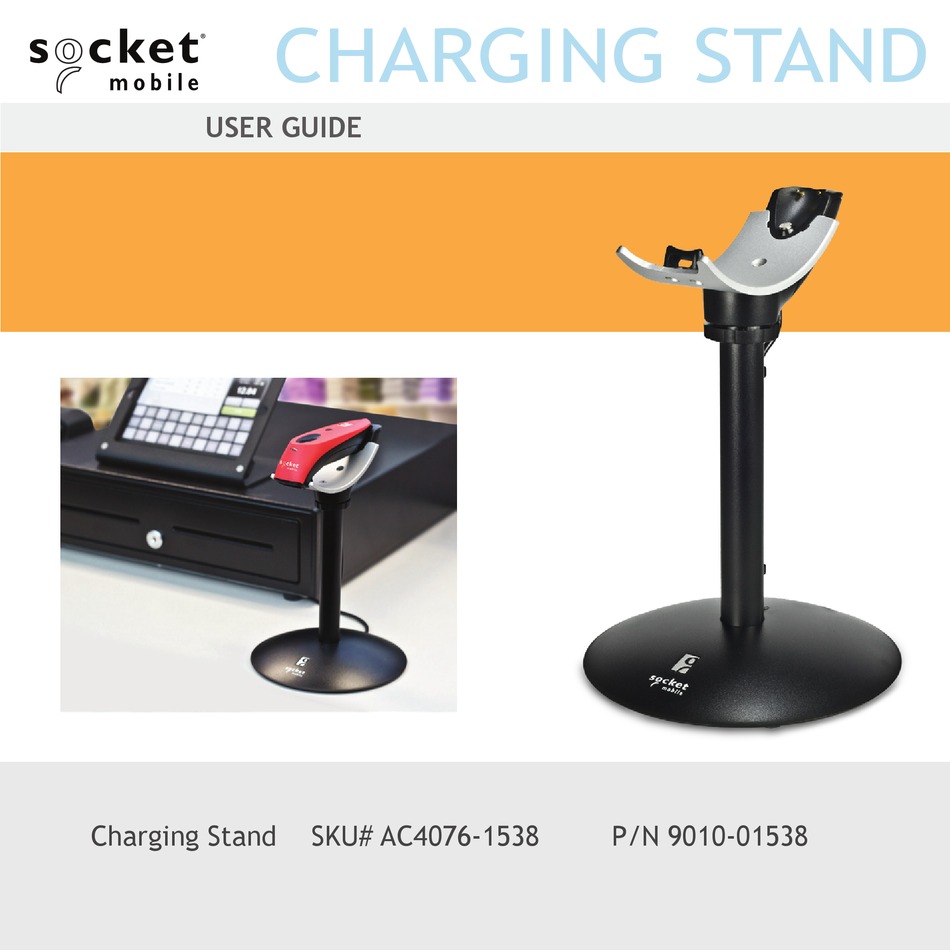

- Page 1 CHARGING STAND USER GUIDE ATTACHABLE Charging Stand SKU# AC4076-1538 P/N 9010-01538...
-
Page 2: Package Contents
SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained herein may be those of their respective... -
Page 3: Product Information
PRODUCT INFORMATION Charging Pins Light* Magnet Hook *Illuminates Red when connected to AC Power. -
Page 4: Assembly Overview
ASSEMBLY OVERVIEW B. (Front view) B. (Bottom view) A. Charging Mount E. Cushion Crown B. Base F. Pem Cap / Camera Mount* C. Post G. Wood Screws (2)** D. Micro USB (2m) *Optional for Camera Mount (See page 14) **Optional for table mount (see page 12) - Page 5 CONNECTING CHARGING MOUNT TO POST A. Flip the Charging Mount upside down and insert the cushion crown into the bottom of the Charging Mount. B. Insert the post into the bottom of the Charging Mount. C. Turn the washer to the right until it is locked in place.
- Page 6 HOW TO CONNECT USB CABLE Base (Bottom View) Step 1 Back Base (Top View) Front Step 1: Insert Micro USB from under the base.
- Page 7 HOW TO CONNECT USB CABLE Step 3 Step 4 Step 2: Remove Micro USB cover. Step 3: Insert Micro USB connector into port and fit usb cable into the cord keeper. Step 4: Leave enough slack to allow freedom of movement.
- Page 8 CONNECTING THE POST TO THE BASE Insert the post into the top of the base lining up the marker on the post to the unlock icon. Push down and turn the post towards the lock icon until you hear a click.
-
Page 9: How To Unlock
HOW TO UNLOCK To unlock, find the small latch on the bottom of the base. Pull the latch back and turn the post clockwise aligning the marker with the unlock icon. Base (Bottom View) Small latch... - Page 10 CHARGING STAND OPERATIONS When charging the scanner, make sure the charging pins on the stand and the scanner make con- tact with each other and the red Light on the stand is illuminated. “Beep Beep”* *CHS 7Qi, 7Xi, D750 only...
- Page 11 CHARGING STAND OPERATIONS 4-6 inches (10 - 15 cm)
- Page 12 Rotate the Stand so that it aligns with the solid Notch (not the dotted Notch) on the Template. 2. Rotate the Stand/Template combination so the Socket Mobile logo faces in the direction you want the scanner to face.
- Page 13 OPTIONAL CHARGING STAND AND TABLE MOUNT Magnet Command Barcode “Auto Mode” Magnet Magnet Notch Keyholes...
- Page 14 OPTIONAL CONFIGURATION WHEN USING A CAMERA MOUNT A. Attach the Pem cap to your Camera Mount (1/4” - 20 x 3/4” thread) and turn to the right. B. Attach the Charging Mount to the Pem cap...
-
Page 15: Command Barcodes
COMMAND BARCODES Charging Stand Modes Mobile Mode - Normal (default)* Scanning this bar code will enable the scanner to enter mobile mode. It will always be in manual trigger mode even when placed in the stand or cradle. *Scanner Factory Reset returns to Mobile #FNB 41FBA50000# Mode. -
Page 16: Auto Mode
AUTO MODE Auto Mode (In the Stand) Notification Action Behavior Beep Pattern Light Activity Vibrate Place Scanner Scanner High-high tone Battery Status None in the Stand switches to confirms proper Light is Dis- Presentation seating* abled Mode Place a barcode Decode Bar 1 Beep when Green Light... - Page 17 AUTO MODE (CONTINUED) 1. Pair and connect the 7Qi/7Xi to your device prior to placing the scan- ner in Auto Mode. The Scanner is not discoverable when in Auto Mode and in the Stand. This facilitates a fast connection to the current connected device when powered on (for example the start of the new business day).
-
Page 18: Product Specifications
PRODUCT SPECIFICATIONS Dimensions Stand Height 8.75 in (222 mm) Charging Mount Width 1.80 in (46 mm) Charging Mount Length 5.50 in (140 mm) Base Diameter 5.75 in (146mm) Total Weight Without Scanner and AC Adapter 16 oz (454 g) With Scanner and without AC Adapter 17.6 oz (500 g) Antimicrobial Rating JLS z2801:2000 Test:... -
Page 19: Helpful Resources
Technical Support & Product Registration: support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: socketmobile.com/warranty-checker Socket Mobile Developer Program: Learn more at: socketmobile.com/developers Download the scanner User Guide (full installation and usage instruc- tions) and Command Barcodes (Advanced Scanner Configurations) at socketmobile.com/downloads... -
Page 20: Compliance Statement
COMPLIANCE STATEMENT CE MARKING AND EUROPEAN UNION COMPLIANCE The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
