- Page 1 CDR 200/40, CDR 200/100 Electronic current distributor for the charging of two batteries via the alternator or charger User Manual LEAB Automotive GmbH User Manual Thorshammer 6 Version: V 2.0 DE-24866 Busdorf Issue date: 30.09.2019...
-
Page 2: Table Of Contents
Installation Instructions About this Manual Table of Contents About this Manual ................. 1 General Safety ..................2 Package Contents ................... 3 Technical Specifications ................. 3 About the CDR ..................4 Mounting ....................4 Installation ..................... 4 Optional Functions ................. 5 Maintenance .................. -
Page 3: General Safety

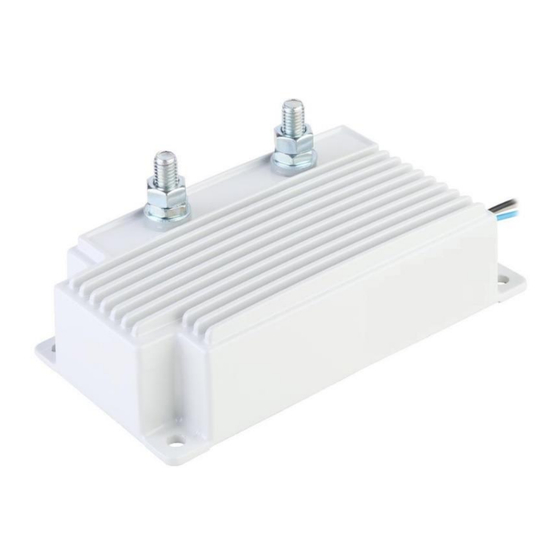

This manual supports safe handling of the device. Use the device solely in accordance with its intended use: The LEAB CDR enables virtually loss-free charging of two batteries from one source, such as an alternator or charger. The CDR is installed between the starter and auxiliary batteries and serves as a current distributor. -
Page 4: Package Contents
Package Contents Package Contents User Manual Insulating caps Hexagon nut, M8 Washers Technical Specifications Model CDR 200/100 CDR 200/40 12 V /24 V 12 V / 24 V Part number 1301171460 1301171450 Current limit 100 A 40 A Input voltage... -
Page 5: About The Cdr
Installation To install the CDR, perform the following steps: In vehicles with generator management, additional batteries are not sufficiently charged by conventional cut-off relays or current distributors. We recommend the LEAB charge booster (part number): 1041003001). Page 4 of 6... -
Page 6: Optional Functions
Installation Instructions Optional Functions Connect the positive terminal of the starter battery to the screw terminal 1 (input). Connect the positive terminal of the additional battery to the screw terminal 2 (output). Connect the connection cable GND to a ground. Connect the negative terminal of the starter battery and the negative terminal of the additional battery to a shared ground. -
Page 7: Maintenance
The device must not be disposed of with household waste. Take it to a recycling point or send it to your point of sale. 11 EU Declaration of Conformity The LEAB CDR models 200/40 and 200/100 complies with the requirements of the following... - Page 8 LEAB Automotive GmbH Thorshammer 6 DE-24866 Busdorf Germany Tel.: +49(0) 4621 9 78 60-0 Fax: +49(0) 4621 9 78 60-260 Email: anfrage@leab.eu Web: www.leab.eu...
