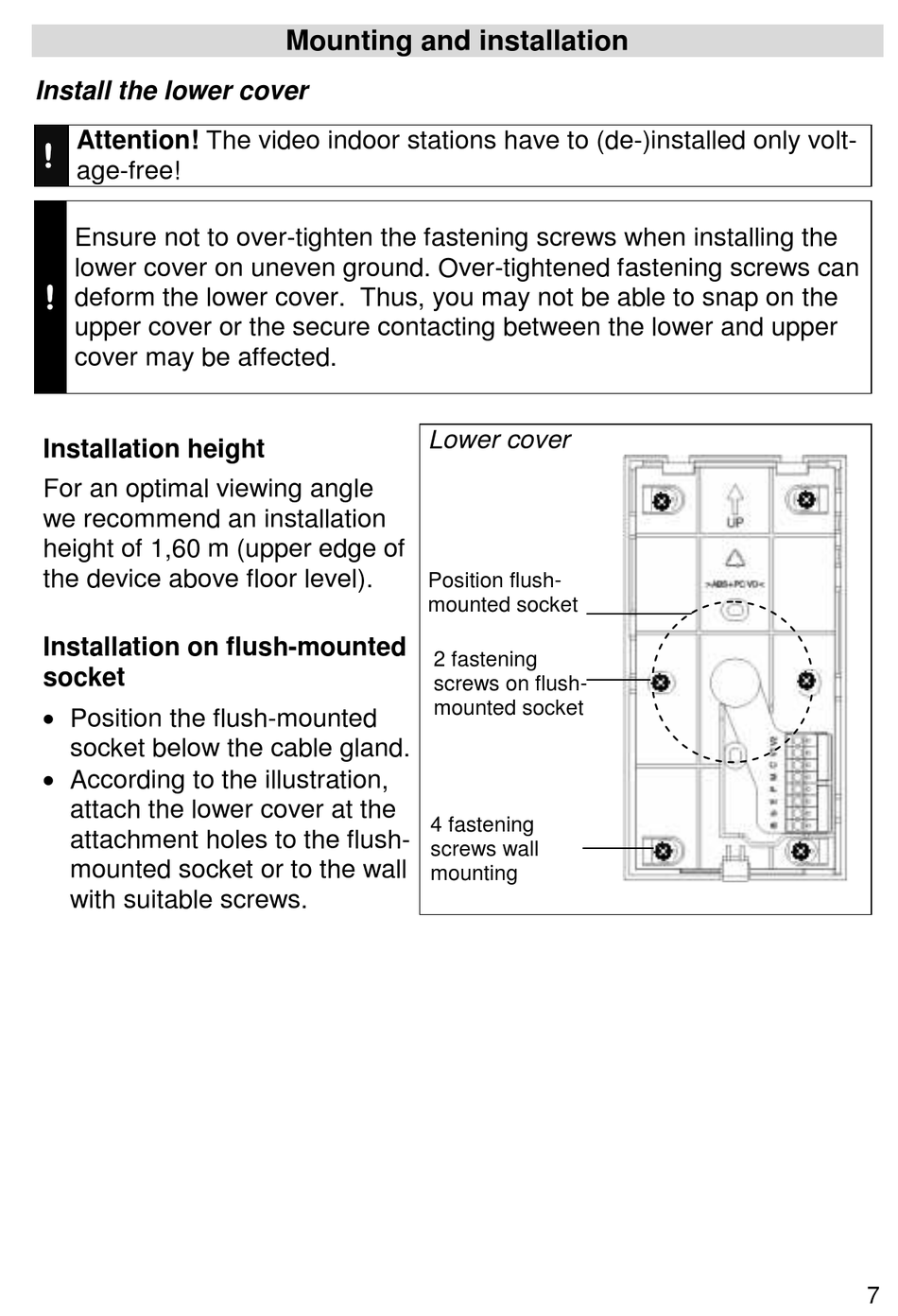

Install the lower cover
Attention! The video indoor stations have to (de-)installed only volt-
!
age-free!
Ensure not to over-tighten the fastening screws when installing the
lower cover on uneven ground. Over-tightened fastening screws can
!
deform the lower cover. Thus, you may not be able to snap on the
upper cover or the secure contacting between the lower and upper
cover may be affected.
Installation height
For an optimal viewing angle
we recommend an installation
height of 1,60 m (upper edge of
the device above floor level).
Installation on flush-mounted
socket
Position the flush-mounted
socket below the cable gland.
According to the illustration,
attach the lower cover at the
attachment holes to the flush-
mounted socket or to the wall
with suitable screws.
Mounting and installation
Lower cover
Position flush-
mounted socket
2 fastening
screws on flush-
mounted socket
4 fastening
screws wall
mounting
7
