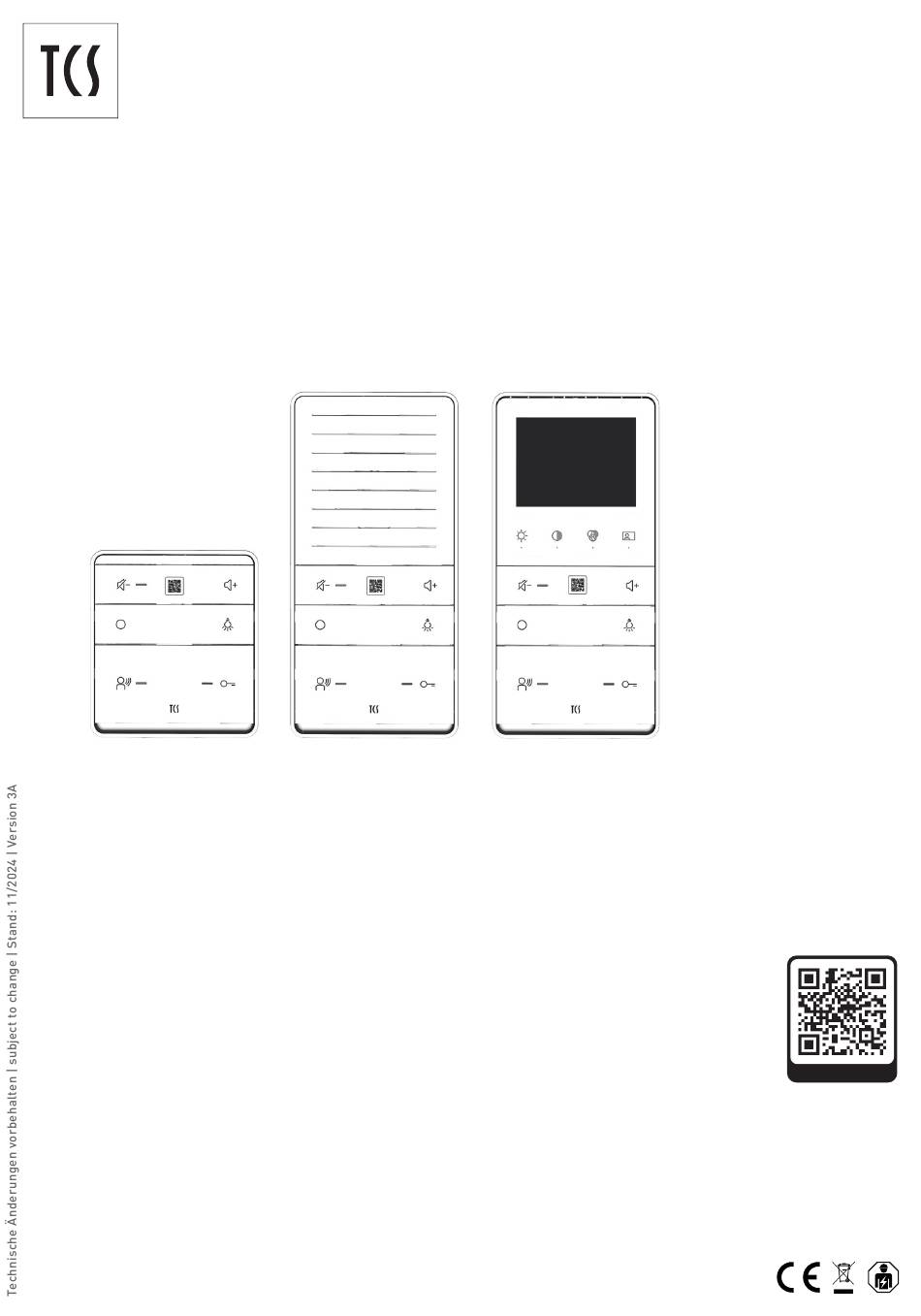

ISW6031-0145 Audio-Innenstation zum Freisprechen Audio Plus WS SDI | Audio indoor station for hands-free talking WS SDI IVW6511-0145 Video-Innenstation zum Freisprechen Audio Plus WS SDI | Video indoor station for hands-free talking WS SDI Informationen TCS TürControlSysteme AG Geschwister-Scholl-Str. 7 DE-39307 Genthin Tel.: +49 3933 8799-10 info@tcsag.de...
Bedienung. Bitte lesen Sie die Anleitung vor Gebrauch sorgfältig durch. Diese Bedienungsanleitung ist für folgende Geräte gültig: These operating instructions are part of your new TCS device and give you important information on use and operation. Please read the instructions carefully before use.
IHRE INNENSTATION Geräteübersicht LED-Anzeigen LED rot – Ruf AUS deaktiviert Smart Slot Funktionstaste Leuchtet – Ruf AUS aktiviert Eingehende Anrufe werden akustisch nicht Leiser Taste (Ruf AUS) signalisiert. Anzeige Ruf-AUS rote LED Blitzt – Rufumleitung ist aktiviert Mikrofon Blinkt – Eine Nachricht wurde auf dem Nachrichtenspei- cher gespeichert.
Page 4
BEDIENELEMENTE KURZÜBERSICHT Leiser Taste Lauter Taste – Rufton deaktivieren 8 s drücken – Rufton aktivieren kurz drücken – Rufton aktivieren kurz drücken – Lautstärke für Rufton und Sprechen – Lautstärke für Rufton und Sprechen erhöhen kurz drücken in 8 Stufen verringern kurz drücken in 8 Stufen –...
Page 5
BENUTZEREINSTELLUNGEN Gesprächslautstärke Die Gesprächslautstärke ist während einer bestehenden Sprechverbindung in 8 Stufen veränderbar. Drücken Sie wiederholt die Lauter bzw. die Leiser Taste bis Sie die gewünschte Gesprächslautstärke eingestellt haben. Ruftonlautstärke Es darf keine Sprechverbindung bestehen. f Drücken Sie wiederholt die Lauter bzw. die Leiser Taste bis Sie die gewünschte Ruftonlautstärke eingestellt haben.
BEDIENUNG Türruf von der Außenstation annehmen Ein Rufton und das Leuchten der grünen LED signalisieren einen Ruf von der Außenstation. f Drücken Sie kurz die Sprechentaste, um das Gespräch anzunehmen. f Drücken Sie kurz die Sprechentaste erneut, um das Gespräch zu beenden. Drücken Sie alternativ die Türöffnertaste.
Page 7
Ansagetext für Modus 1 und 2 an der Innenstation aufnehmen: f Drücken Sie 4 s die Türöffnertaste. Es ertönt ein Signalton und die grüne LED blinkt. f Sprechen Sie Ihren Ansagetext (max. 10 s) in das Mikrofon. f Drücken Sie kurz die Türöffnertaste, um die Aufnahme zu beenden. Die grüne LED blitzt und der Ansagetext wird zur Kontrolle abgespielt.
Page 8
KONFIGURIERBARE EINSTELLUNGEN Nachfolgende Funktionen können nur durch Ihren Elektrofachmann konfiguriert und aktiviert werden: Internruf auslösen und Internruf empfangen Sie können eine weitere Innenstation rufen oder von dieser gerufen werden. Der Internruf kann auf die Funktions- oder Lichttaste programmiert werden. f Drücken Sie kurz die Funktionstaste oder Lichtschalttaste.
Indication for door release, blue LED All LED are on – ring tone selection is activated Door release button All LED are flashing – device or TCS:BUS error Ambient illumination and Loudspeaker Ambient ON blue – The ambient illumination can be deactivated and...
Page 11
OPERATING ELEMENTS Volume down button (call OFF) Volume up button – Deactivate ring ton mute, press for 8 – Activate ring tone press briefly – Increase volume for ring tone and speech seconds – Activate ring ton, press briefly briefly press in 8 steps –...
USER SETTINGS Call volume The call volume can be changed in 8 steps during an existing voice connection. Press the Volume up or Volume down key repeatedly until you have set the desired call volume. Ringtone level There must be no voice communication. f Press the Volume up or Volume down key repeatedly until you have set the desired ringing tone volume.
OPERATION Accepting a door call A ring tone and the illumination of the green LED signal a call. f Shortly press the speech button to answer the call. f Briefly press the speech button again to end the call. Alternatively, press the door release button, The door opener is triggered and the call is ended after 4 seconds.
Page 14
Record announcement text for mode 1 and 2 at the indoor station: f Press the door release button for 4 seconds. A signal tone sounds and the green LED flashes. f Speak your announcement text (max. 10 s) into the microphone. f Briefly press the door release button to end the recording.
CONFIGURABLE SETTINGS The following functions can only be configured and activated by your electrician: Triggering and receiving an internal call You can call another indoor station or be called by it. The internal call can be programmed to the fun- ction or light button.
