Pluribus Networks F9572L-V Quick Start Manual

Q u i c k St a r t G u i d e
54-Port 25G/100G Fiber Ethernet Switch
F9572L-V | F9572BL-V

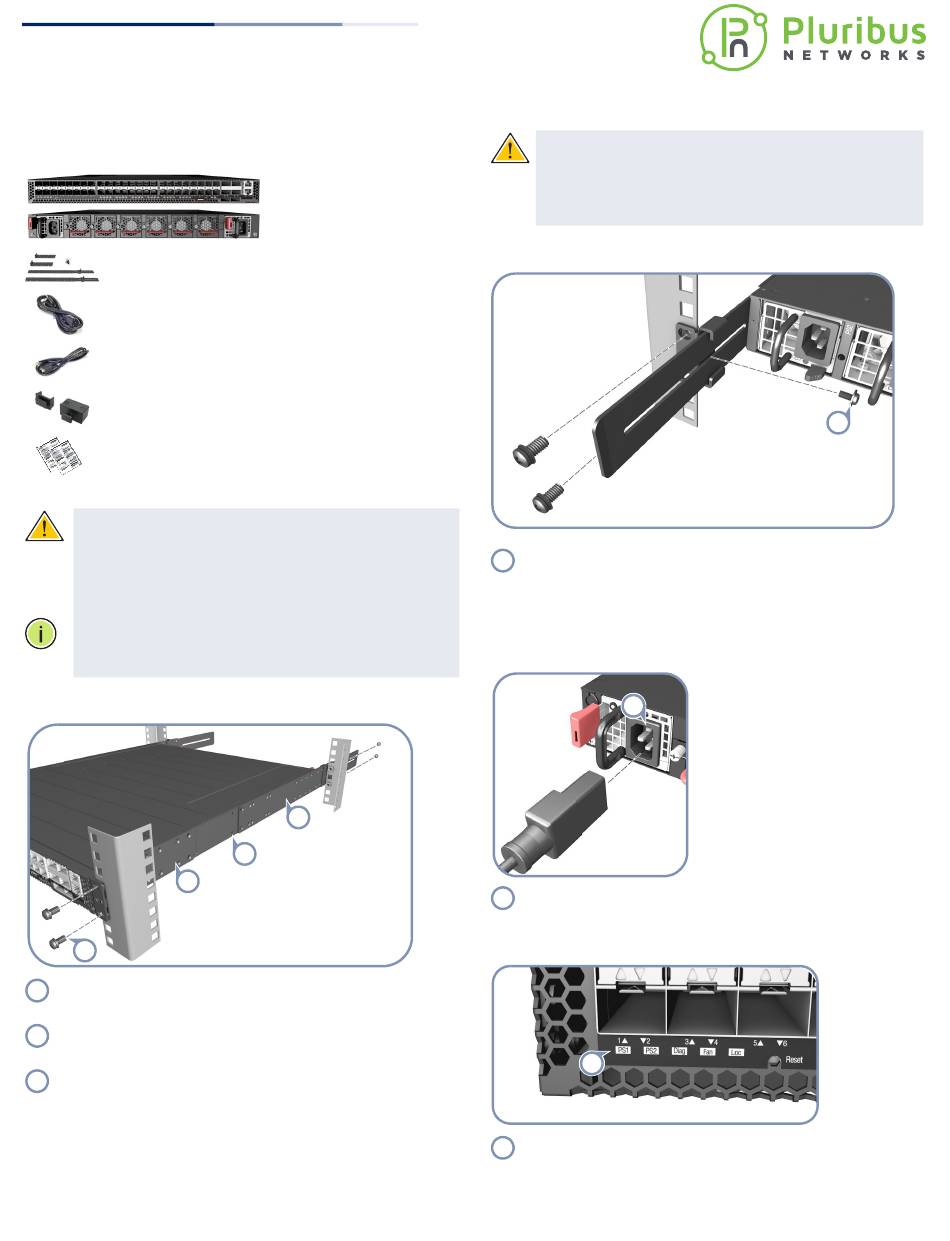

1. Unpack the Switch and Check Contents
Rack Mounting Kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
Power Cord (included with AC PSUs only)
Console Cable—RJ-45 to DB-9
Dust Cover Kit—6 for QSFP port and 48 for SFP ports
Documentation——End-User License Agreement, Quick
Start Guide (this document) and Safety and Regulatory
Information
Caution:
The switch includes plug-in power supply (PSU)
and fan tray modules that are installed into its chassis. All
installed modules must have a matching airflow direction.
That is, if the installed power modules have a front-to-back
(F2B) airflow direction, all the installed fan tray modules
must also have a F2B airflow direction.
Note: The switch drawings in this document are for
illustration only and may not match your particular switch
model.
2. Attach the Brackets
1
3
1
Attach each of the front- and rear-post brackets to the
switch using four of the included bracket screws.
2 Use an additional two screws to secure each of the rear-post
brackets at the mid-point on the sides of the switch.
3 Use the screws and cage nuts supplied with the rack to
secure the switch in the rack.
www.pluribusnetworks.com
F9572L-V or F9572BL-V
1
2
Caution:
Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other secures it using the rack screws.
装置の吸排気に必要な領域を マニ ュ アル上に規定 し て
い る 。
3. Adjust Rear-Post Bracket Ears
1
Lock the position of the rear-post bracket ears using the
included position-locking screws.
You can also adjust the rear-post bracket ears to fit different
rack depths from 56 cm to 75 cm.
4. Connect Power
1
1 Connect an external AC power source to the PSUs.

5. Verify Switch Operation

1
1 Verify basic switch operation by checking the system LEDs.
When operating normally, the PSU1/PSU2, Diag, and Fan
LEDs should all be on green.
– 1 –
1
19-0021
