Quick Star t Guide

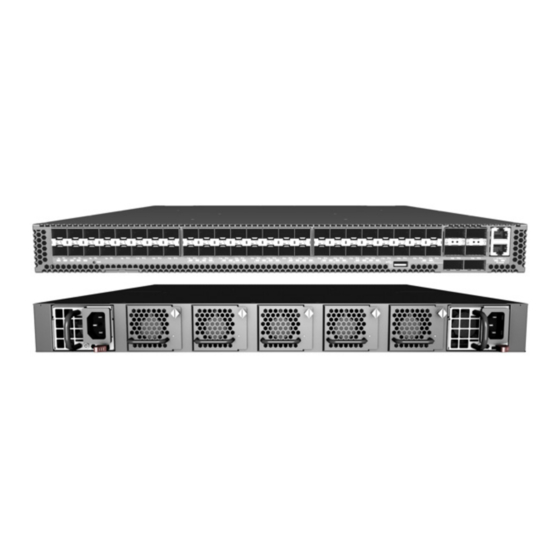

54-Port 10G Fiber Ethernet Switch
F9272-X | F9272B-X

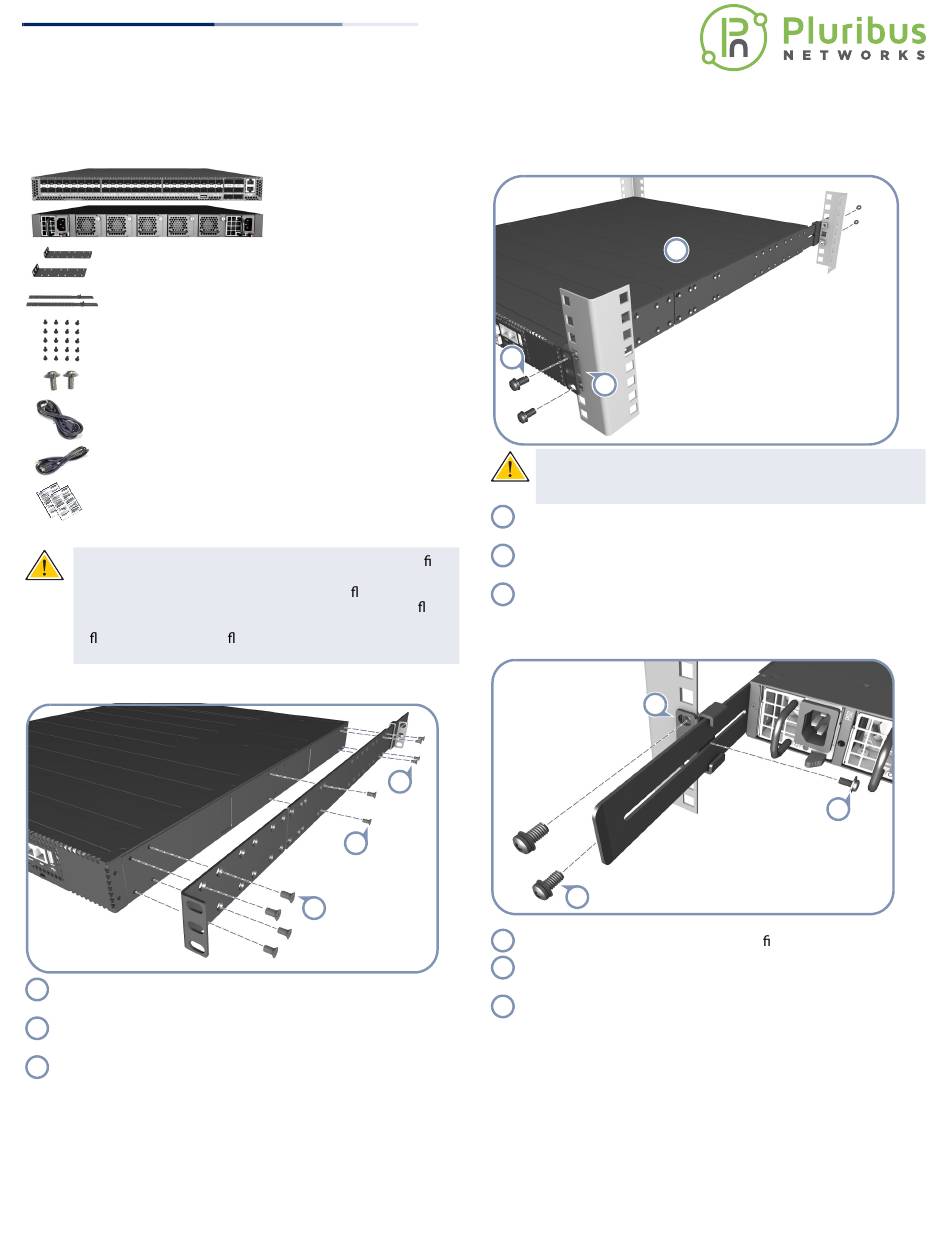

1. Unpack the Switch and Check Contents
2 front-post brackets
2 rear-post brackets with adjustable ears
20 bracket screws
2 rear bracket ear position-locking screws
Power Cords
Console Cable—RJ-45 to DB-9
Documentation—End-User License Agreement, Quick
Start Guide (this document) and Safety and Regulatory
Information
Caution:
The switch includes two plug-in AC PSUs and ve
fan tray modules that are installed into its chassis. All
installed modules must have a matching air ow direction.
That is, all modules must have a front-to-back (F2B) air ow
direction, or all modules must have a back-to-front (B2F)
air ow direction. The air ow direction of PSU and fan tray
modules is indicated by labels on the modules.
2. Attach the Brackets
1 Attach each of the two front-post brackets to the front of the
switch using four of the included bracket screws.
2 Attach each of the two rear-post brackets to the rear of the
switch using four of the included bracket screws.
3
For the rear-post brackets, use an additional two bracket
screws to secure the bracket at the mid-point on the side of
the switch.
www.pluribusnetworks.com
10G Fiber Ethernet Switch
F9272-X
F9272B-X
2
3
1
– 1 –
3. Mount the Switch
3
1
Caution:
Installing the switch in a rack requires two people.
One person should position the switch in the rack, while the
other secures it using the rack screws.
1 As per your rack plan, mark the holes in the rack where you
want to install the switch.
2 Lift the switch into the rack and align it with the marked
holes.
3 Secure the front-post brackets to the rack using four screws
and cage nuts supplied with the rack.
4. Adjust Rear-Post Bracket Ears
1
2
1 Adjust the rear-post bracket ears to t the depth of the rack.
2 Secure the rear post brackets to the rack rear posts using
four screws and cage nuts supplied with the rack.
3 Lock the position of the rear-post bracket ears using the
included position-locking screws.
2
3
