EINHELL E-Stand Original Operating Instructions

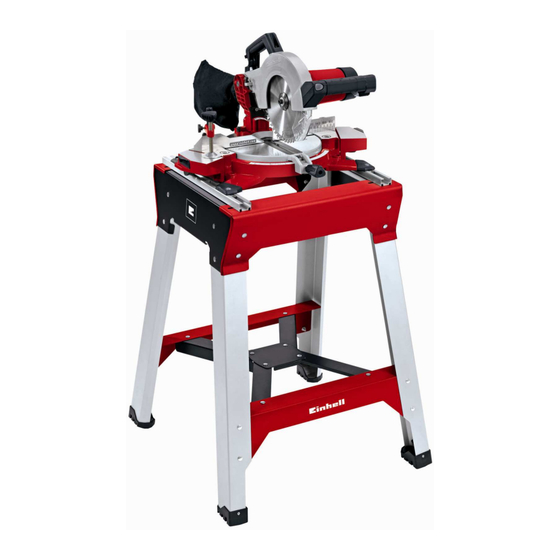

The universal underframe fits for all Einhell Home and Einhell Expert mitre saws and sliding mitre saws.
Features
Aluminium assembly rail (1)
with sliding blocks (2)
Foots with X-strutting apart
One height adjustable foot for
level control (3)
Delivery without
Mitre Saw!
Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included in standard
extent of delivery. Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modifications reserved.
File: S:\shared-pool\Product-Documentation\T-Produktbeschreibung\30_n0t\Originale_Englisch_PA04\4310620_11012.doc
Erstelldatum/create date: 18.12.2012 17:22:00Aktualisiert/up dated: 19.12.2012
Technical Data
Logistic Data
2
1
2
3
Universal Mitre Saw base
Assembly width:
Assembly depth:
Working height:
Product weight:
Net weight:
Gross weight:
Packing dimensions:
Bar code:
Sales unit:
2
E-Stand
Art.-No. 43.106.20
34.0 to 44.5 cm
max. 41.0 cm
81,0 cm
10.4 kg
10.4 kg
11.4 kg
795 x 340 x 120 mm
4006825 584974
1 pc
1
2
