4.3inch HDMI LCD User Manual

OVERVIEW

This is 4inch resistive touch screen with 480x272 resolution, HDMI interface,
designed for Raspberry Pi

FEATURES

480x272 hardware resolution
⚫
Resistive touch control
⚫
Supports Raspberry Pi Zero/Zero W/Zero WH/A+/B+/2B/3B (the Pi 1 model B or
⚫
Pi Zero requires an HDMI cable)
Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
⚫
HDMI interface for displaying, no I/Os required (however, the touch panel still
⚫
needs I/Os)
Backlight can be turned off to lower power consumption
⚫
4.3inch HDMI LCD
User Manual
1 / 8

Advertisement

Table of Contents
loading

Related Manuals for Waveshare 4.3inch HDMI LCD

Summary of Contents for Waveshare 4.3inch HDMI LCD

  • Page 1: Overview

    4.3inch HDMI LCD User Manual 4.3inch HDMI LCD User Manual OVERVIEW This is 4inch resistive touch screen with 480x272 resolution, HDMI interface, designed for Raspberry Pi FEATURES 480x272 hardware resolution ⚫ Resistive touch control ⚫ Supports Raspberry Pi Zero/Zero W/Zero WH/A+/B+/2B/3B (the Pi 1 model B or ⚫...

  • Page 2: Table Of Contents

    4.3inch HDMI LCD User Manual CONTENT Overview ................................1 Features ..............................1 Versions .................................3 How to use ..............................4 Hardware connection ........................4 Method 1, Install driver ........................4 Method 2 Using ready-to-use image ..................6 Setting orientation ..........................6 Calibration ............................6 Interface .................................8 2 / 8...

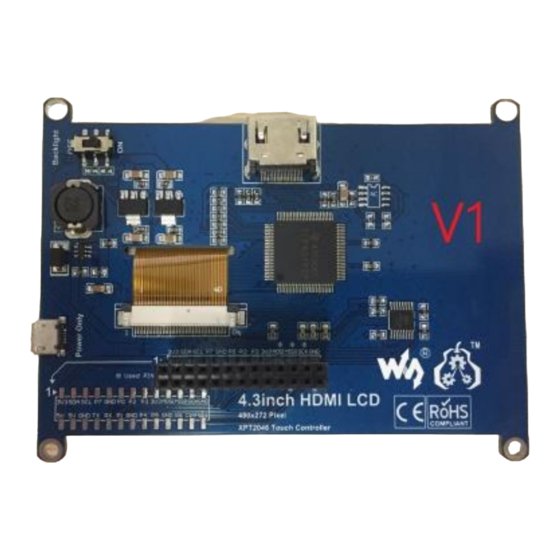

  • Page 3: Versions

    4.3inch HDMI LCD User Manual VERSIONS We updated of the controller from TFP401A to RTD2660H because of supply reasons. RTD2660H has higher compatibility than TFP401A, however, higher the consumption. 3 / 8...

  • Page 4: How To Use

    4.3inch HDMI LCD User Manual HOW TO USE The touch of the LCD can be driven in two ways: Method 1: Install driver manually; Method 2: Using ready-to-use Image HARDWARE CONNECTION Insert LCD directly to 40PIN header of Raspberry Pi.
  • Page 5 4.3inch HDMI LCD User Manual For V1 version: max_usb_current=1 hdmi_group=2 hdmi_mode=87 hdmi_timings=480 0 1 41 2 272 0 2 10 2 0 0 0 60 0 9009000 3 display_rotate=2 hdmi_drive=2 For V2 version display_rotate=2 max_usb_current=1 hdmi_group=2 hdmi_mode=87 hdmi_cvt 480 272 60 6 0 0 0...

  • Page 6: Method 2 Using Ready-To-Use Image

    4.3inch HDMI LCD User Manual Waiting for rebooting METHOD 2 USING READY-TO-USE IMAGE 1. Download image we provided on wiki - Raspbian for 4.3inch HDMI LCD 2. Extract the image file and write to SD card 3. Insert the SD card to Raspberry Pi and power on.
  • Page 7 4.3inch HDMI LCD User Manual cp LCD-show/xinput-calibrator_0.7.5-1_armhf.deb ~/ sudo dpkg -i -B xinput-calibrator_0.7.5-1_armhf.deb 2. Install X service sudo apt-get install xserver-xorg-input-evdev sudo cp -rf /usr/share/X11/xorg.conf.d/10-evdev.conf /usr/share/X11/xorg.conf.d/45-evdev.conf sudo reboot 3. Running calibrator and finish calibration DISPLAY=:0.0 xinput_calibrator 4. Saving the calibration data to 99-clibration.conf file sudo mkdir /etc/X11/xorg.conf.d...

  • Page 8: Interface

    4.3inch HDMI LCD User Manual INTERFACE PIN NO. Symbol Description 1, 17 3.3V Power positive (3.3V power input) 2, 4 Power positive (5V power input) 3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 6, 9, 14, 20, 25...
