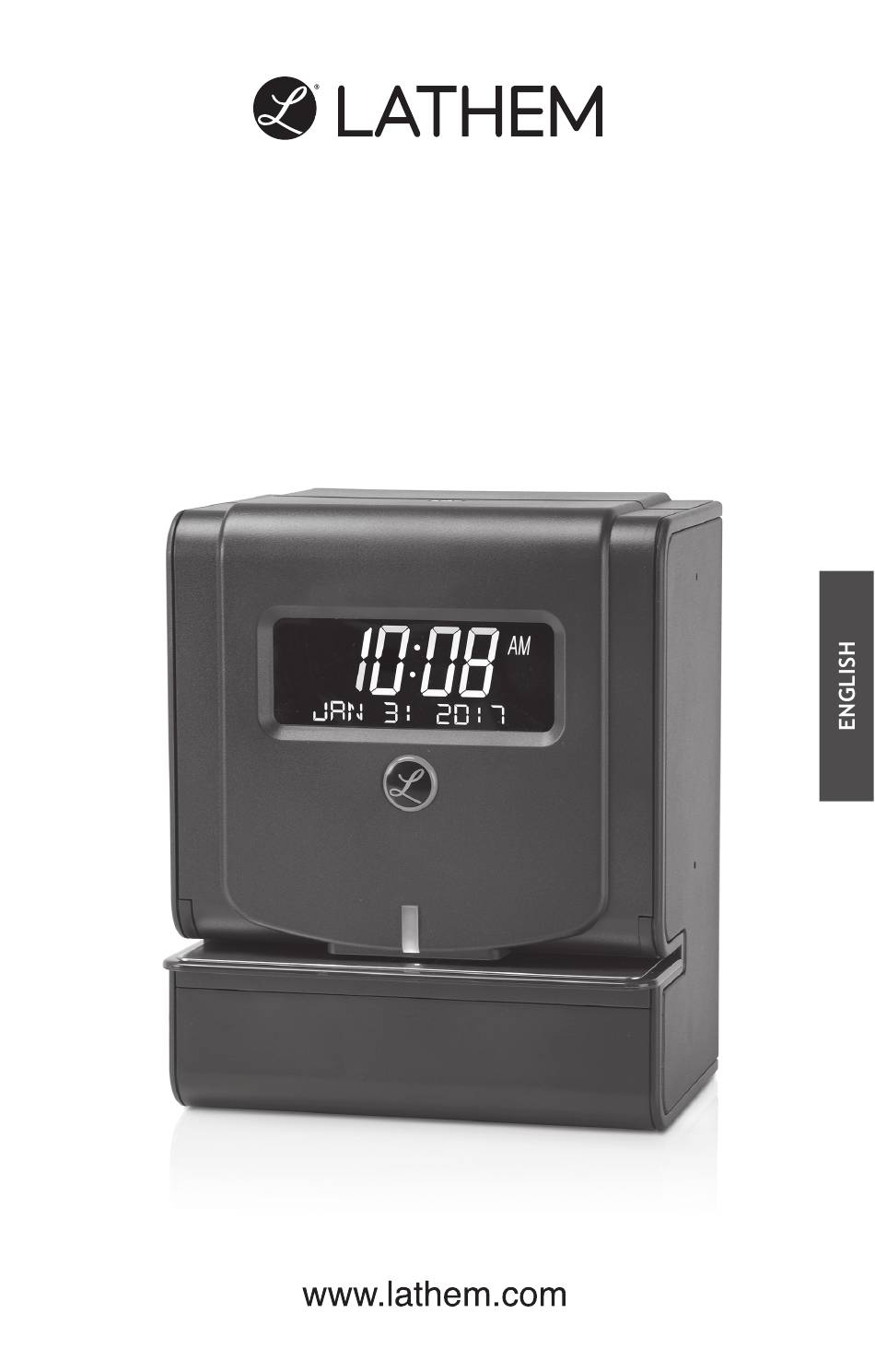

- Page 1 Model 2100HD User’s Guide...
- Page 2 IMPORTANT! You may write on Lathem E8 Series thermal time cards with standard writing instruments, but do NOT use correction fluid on print area of time card. Correction fluid will fuse to the 2100HD thermal print head during printing and cause damage.
- Page 3 The information within this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Lathem reserves the right to make changes to any products herein to improve reliability, function, or design.
- Page 4 Heavy duty steel and ABS construction to withstand harsh • environments and high volume use Large high-contrast black LCD display with Time and Date • Caution ◼ Avoid placing the 2100HD in environments that are: humid • dusty • exposed to direct sunlight •...
-
Page 5: Quick Start Steps
Quick Start Steps ◼ 1. Remove top case with supplied key 2. Plug power adapter cord to connector port on 2100HD 3. Plug power adapter into AC power wall outlet 4. Mount 2100HD to wall (optional) 5. Change Program Settings (optional) 6. -
Page 6: Wall Mounting
Wall Mounting ◼ 1. Remove the front cover using the supplied key. Route the power cord as shown and connect to port on 2100HD. Plug adapter into AC power outlet. 2. Use the provided template provide to mark 3 mounting holes on the wall about 45”... -
Page 7: Program Settings
2100HD User’s Guide Program Settings ◼ The 2100HD is preset at the factory to current US Eastern Time and Date, and configured to print Day of Week and Time in 1-12 AM/PM hours and regular minute format. You only need to program the unit if you need to change these settings. - Page 8 The 2100HD uses patented direct thermal print technology which eliminates ribbons or ink. You must use Lathem E8 series thermal time cards with the 2100HD. Use of any other time card or form will result in no printing and may damage the time clock.
- Page 9 The 2100HD will only print using Lathem E8 Series thermal time cards. Use of any other time card will result in no printing, may cause damage to the unit and void the 2100HD product warranty. There are three (3) different Lathem E8 cards available to support your company’s pay period.
- Page 10 2100HD User’s Guide...
-
Page 11: Limited One Year Warranty
No warranties are given with respect to products purchased other than from Lathem or an authorized Lathem reseller and any such products are purchased "as is, with all faults." In no event will Lathem be liable for any direct, indirect, special, incidental or consequential damages arising out of or in connection with the delivery, use or inability to use, or performance of this product.
