Summary of Contents for Moneual MBOT 500

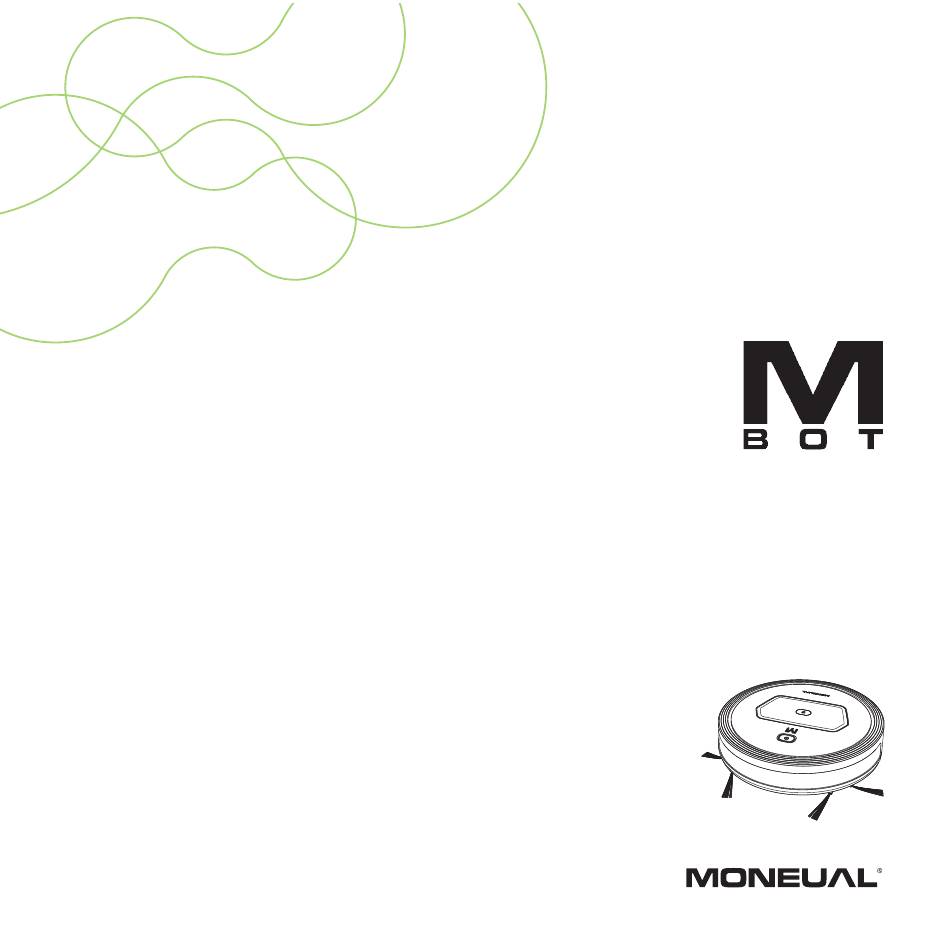

- Page 1 Ver 1.0 User manual MBOT 500...
-
Page 2: Table Of Contents
Contents Thank you for deciding to purchase this MONEUAL Before use Important Instructions MBOT robot vacuum cleaner. Before using the product, Package content please read this user manual carefully and keep it for future reference. Product description Depending on the model, some content of this user manual may vary from the actual product. -
Page 3: Before Use Important Instructions
Important Instructions You may be killed or seriously injured You may be injured or your appliance Important information, de nitions, if you do not follow this instruction. may be damaged if you do not follow general rules and notes are explained. this instruction. - Page 4 Important Instructions Only use the original adapter, battery and the original charging station to prevent damage to the device as well as electric shocks, surges and/or re. If damage occurs to the device or accessories, discontinue use of the robot and contact customer service. Never perform any repairs yourself.
-
Page 5: Package Content
Package content MBOT500 robot vacuum cleaner - Pre-assembled main brush and side brushes - Pre-assembled dust bin and lter Charging station Adapter Multi-functional Replacement set of remote control side brushes Cleaning brush Screwdriver and Replacement lter set Warranty booklet for cleaning the main brush replacement screws - and Quick Guide for loosening/tightening... -
Page 6: Product Description

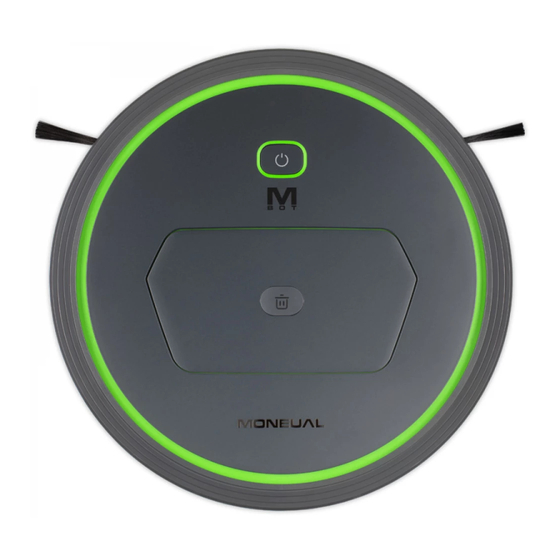

Product description ③ ② ① Upper cover ① ② Dust Bin ③ Dust bin button ④ Operating button ⑤ Impact strip ⑥ Signal window for obstacle sensors ⑦ Side brushes ④ ⑤ ⑥ ⑦ ① Charging contact ③ ② ② Floor sensor / fall sensor ①... -
Page 7: Charging Station
Charging station Adaptor plug Charging terminal Warning! When using the charging station, Plug in the mains adaptor. If there is a power connection, remember that there should be a min. the green LED on the top of the charging station is lit. clearance of 3m at the front and 1m at the sides. -
Page 8: Installing The Remote Control
Remote control Use the locking lever to remove the battery cover. Install the AAA batteries supplied in the correct direction and replace the cover. Point the remote control at the robot and press Start/Pause once to test the robot’s reaction. If the robot beeps, a connection has been made. -
Page 9: Charging The Device
Charging the device Warning! Hold the device with both hands and place it on the charging station. Make sure that the robot's contact is on the charging station. The device beeps after a second and the LED ring lights up as soon as contact is made. Connect the robot to the remote control (see page 8). -
Page 10: Product Instructions Before Operation
Instructions before operation Please consider the following points before using the robot vacuum cleaner. Make sure that the robot vacuum cleaner is not damaged when it is removed from its packaging. The device must be fully charged before being used for the rst time. See page 9 for further details about charging. -
Page 11: Remote Control & Functions
Remote control & functions Battery low Change, see page 8. Set current time: Start/Stop - Turn robot on - Press button - Start cleaning 2. Set the time with - End cleaning 3. Switch between minutes and - time setting -> con rm hours using 4. -
Page 12: Start Cleaning
Start cleaning 1. Turning the device on and o 3 seconds To switch the device on, hold the button for 2 seconds until the device beeps. As a result, the LED lights up green. The device is in standby mode.t To switch the device o , hold the button in standby mode for 3 seconds until the device beeps. -
Page 13: End Cleaning
End cleaning When the battery is low, the robot automatically searches for its charging station. AUTO It performs certain movements repeatedly until it nds the charging station’s signal. Its status can be recognised by the ashing LED ring and the deactivated suction motor. If the robot is docked correctly, it beeps once and the charging process begins. - Page 14 Cleaning the dust bin Press! ① ② ③ Press the dust bin The dust bin springs up by Pull the dust bin up button to release. a few millimetres so it can from the housing. be easily removed. ④ ⑤ Flip the lid of the dust bin open and empty the bin.
- Page 15 Cleaning the dust lter Remove the lter cover by Remove any dirt from the The lter cover as well as To speed up the pulling the top of the lter cover using the the ne particle lter drying process, dust bin upward. cleaning brush supplied.
-
Page 16: Cleaning The Sensors And Wheels
Cleaning the sensors and wheels Clean the three oor sensors with the cleaning brush supplied or with a cotton bud. - If the sensors are very dirty, you can use a moistened cotton bud. - Do not use too much moisture. - Never use alcohol or thinner. -
Page 17: Cleaning The Main Brush
Cleaning the main brush Press the brush cover’s release Lift the main brush on the left lever in and pull the brush upward. side to remove it from its mount. First insert the main brush with the Remove any hair collected using the ne blade square on the right side. -
Page 18: Cleaning The Side Brushes
Cleaning the side brushes Remove the screws from the side brushes with Remove any hair and dirt collected and replace the screwdriver provided and pull the side brushes and tighten them. the side brushes upwards. Right and left do not matter. Storage/Battery change if you are not using the robot for a long period of time, please remove the battery to extend its life. -
Page 19: Cleaning The Charging Contact
Cleaning the charging contact If the device experiences problems when docking on the charging station, please check the charging contact on the bottom of the robot. If this is very dirty, no contact can be made with the charging station. To guarantee full functionality, please clean the impact strip and the signal window regularly. - Page 20 Troubleshooting - The robot vacuum cleaner gives out a combination of LED colours and beeps to inform you of the issue/error concerned. - First try solving the issue using the suggestions below. - If the proposed solutions are unsuccessful, please contact customer services. - The error message beeps 10 times 3 seconds apart.
- Page 21 Technical speci cations Operating voltage 14,8 V Adapter Rated output 24 W Output voltage 19 V Battery Li-Ion, 2600mAh 14,4 V Output current 600mA Charging time 4-5 Std. Charging station Working time up to 90 mins Input voltage 19 V Scope -20°C bis +50°C, <...
-
Page 24: Customer Service
Customer service support@moneual.de Before contacting customer services, please make sure you have the following information available: Model Problem Serial number Address and phone number Retailer name www.moneual.de...
