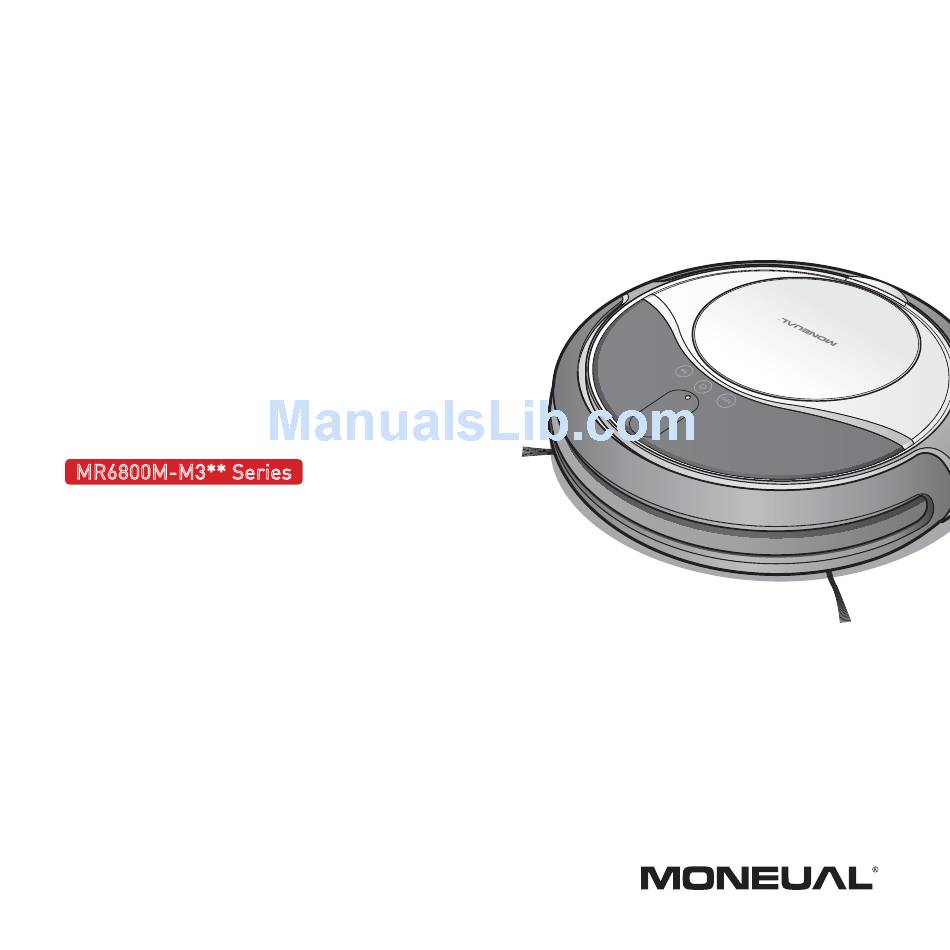

Page 1: Robot Cleaner
Ver 1.0 Robot Cleaner Quick Start Guide MR6800M-M3** Series... - Page 2 What’s in the Box What’s in the Box Robot cleaner (1400mA built-in battery) Charger Power adaptor Power cord Remote control (included two AAA batteries) Side brushes (1 set) Cleaning brush User manual Quick start guide Water-supply big mop kit...

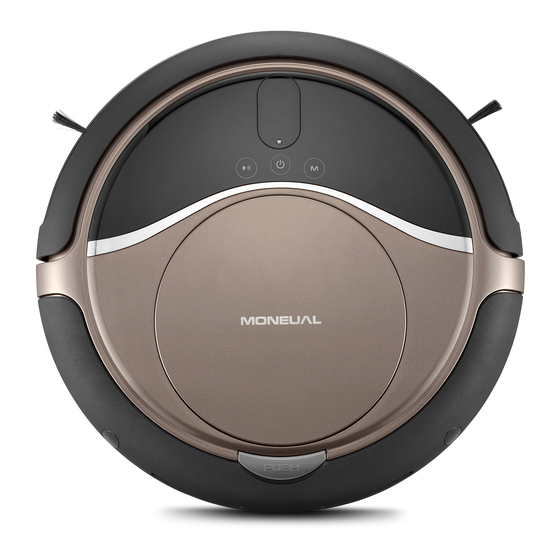

- Page 3 Overview Robot cleaner Control buttons and indicators Dust bin cover Bumper Obstacle and signal detection sensors Air outlet Adaptor jack Power switch Signal receiving sensor Cliff detection sensors Charging terminals Wheels Side brush installation pins Dust inlet Main brush Mop plate installation holes Charger Power/charging lamp Guide signal transmission sensor...
-
Page 4: Remote Control
Control buttons and indicators 9 8 7 Start/stop button Power button Cleaning mode selection button Turbo mode indicator Shadow cleaning mode indicator Auto cleaning mode indicator Mop cleaning mode indicator Timer (one time) indicator Timer (every day) indicator Room selection indicator Error indicator Charging mode indicator... -
Page 5: Installing The Side Brushes
Installing Installing the Side Brushes Check for the L mark Check for the R mark under the side brush. under the side brush. Align with the R mark Align with the L mark under under the robot cleaner the robot cleaner and and install the R brush. -
Page 6: Auto Cleaning
Cleaning Modes Auto Cleaning It is the normal cleaning mode. Turn the power switch on. Intensive Cleaning The robot cleaner intensively cleans the surrounding area relative to its current location. Turn the power switch on. In the area in which there are many obstacles, the robot cleaner may not operate in normal cleaning modes. Corner Cleaning The robot cleaner runs along the walls of the current place where it is. -
Page 7: Shadow Cleaning
Shadow Cleaning You can clean under your bed or furniture. Turn the power switch on. Put the robot cleaner in front of a bed or furniture. To use shadow cleaning mode, turn the room light on. In a dark room, the robot cleaner can’t detect the space under the bed or furniture. -
Page 8: Mop Cleaning
Mop Cleaning In mop cleaning mode, the robot cleaner can completely remove fine dust on the floor. Supply water into the mop plate and Turn the power switch off. Attach the mop plate. attach the mop to it. If you apply excessive force to the mop plate when you install it on the robot cleaner, the joint parts of the mop plate may be damaged.
