NETGEAR ORBI PRO Quick Start

Package Contents Hardware Overview
Note: The number of each item that
comes in your package depends on
Orbi Pro Router
which Orbi Pro kit you buy.
1

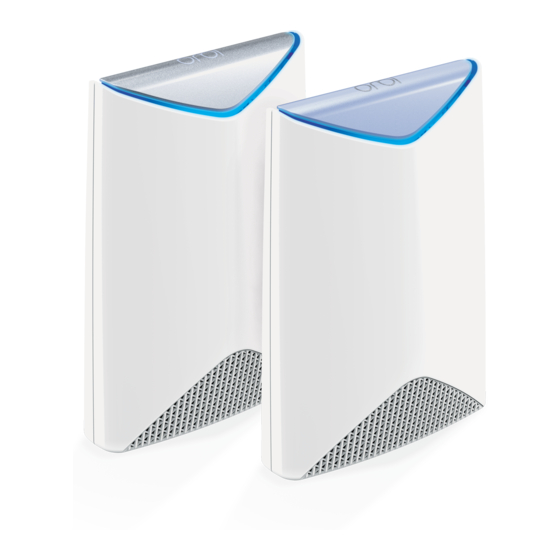

Orbi Pro Router Orbi Pro Satellite
(Model SRR60) (Model SRS60)
Rubber feet
Ethernet cable
Orbi Pro Satellite
1
Power adapter
(varies by region)
Mount base
Mount base
screws
Mount cover
Wall bracket
Ring LED (not shown in image)
1
Wall anchors with screws
Sync button
2
(also used for WPS connection)
Internet port
3
(the Orbi Pro Satellite does not
include an Internet port)
T-bracket with screw T-bracket screws
Ethernet ports
4
Power On/Off button and
5
Power LED
DC Power connector
6
Ceiling bracket Reset button
7
Attach the Mounting
Base
Before you can wall mount or ceiling
mount your Orbi Pro router or satellite,
you must attach the mount base and
cover to your router or satellite.
1
6
2 3 4 5 7
2
6
2 4 5 7
Wall-Mount Your Ceiling-Mount Your
Orbi Pro Orbi Pro
1
1
Attach the T-bracket to the ceiling
2
bracket with the T-bracket screws.
2
Loosen the pre-installed screw on
the T-bracket so that the locking
plate on the T-bracket can slide.
Then secure the T-bracket to the
T-bar and tighten the screw.
3
4
Quick Start
PRO
