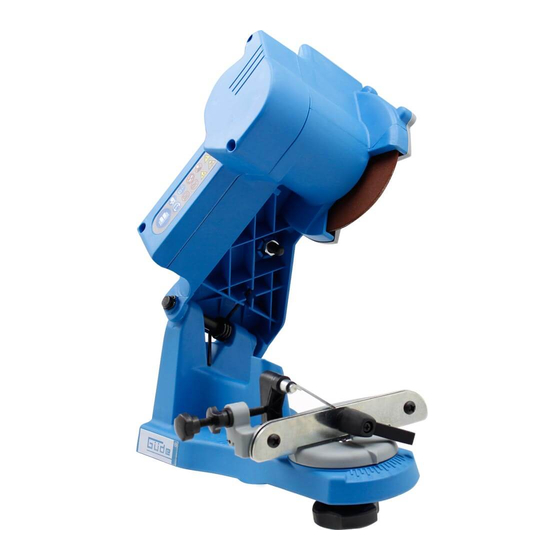

- Page 1 GKS 108 #94077 Translation of original operating instructions saw Chain SHARPENER © Güde GmbH & Co. KG - Birkichstrasse 6 - D-74549 Wolpertshausen - Deutschland...
- Page 2 Introduction To enjoy your new saw chain sharpener as long as possible, please read carefully the Operating Instructions and the attached safety instructions before using it. Further, we recommend keeping the Operating Instructions to recall the product features in the future.
- Page 3 Do not overload your unit Your work is safer and better if kept within the stated range of capacity. Use a correct tool Do not use low-capacity machines or additional tools for hard works. Do not use for any works it has not been designed for. Wear appropriate work clothing Avoid wearing loose-fitting clothes or jewels that could be caught by rotating parts.
- Page 4 Warning: Beware of Keep safety Beware of tossed Warning/Caution hazardous voltage distance objects Commands: Read instruction Wear protection Unplug before Wear eye and ear manual before use gloves opening protectors Environment Protection: Defective electric Cardboard and electronic Dispose of the packaging material devices or those to waste in an...
- Page 5 professional. Do not use the unit unless with stray current protection (FI) Noise Hazard Hazard Description Protective action Residual Hazard Hearing impairment Prolonged work with unit may Wear ear protectors. result in hearing impairment. Material and Other Substances Hazards Hazard Description Protective action Residual hazard...
- Page 6 Technical data Voltage: 230 V Frequency / protection type 50 Hz / IP 20 Protection class: Maximum capacity : 85 W Motor speed : 4800 min Adjustment angle: 35° links/rechts Grinding disc (mm): 108 x 23 x 3,2 Connection cable: 1,5 m / H05 VV-F Worktable surface area LxW (mm) 200 x 270...
-
Page 7: Operation
Never touch the grinding disc in the course of work. Operation Put the chain in the guide bar. Set the sharpening angle (2) required for your chain. Fix in place with the locking screw (1). Sharpening angle Fig. 4 Tip the chain stop (1) ahead of the respective link in the direction (2). Now, set the grinding unit heat by pushing it down carefully (3), use Fig. -
Page 8: Troubleshooting
If you have sharpened your chain, check the depth delimiters distance. The depth delimiters (2) should always be lower than the cutting links. (1). Where necessary, you should make the delimiters (2) shorter with a saw file (not included in the scope of delivery) following your chain data. - Page 9 Only perfect grinding discs are allowed for use to prevent injuries. To check for hidden defects of the grinding disc, a sound test may be performed. To test the disc, pull a pencil through the hole so that the disc may vibrate freely (see Fig.
- Page 10 In a case of alternation of the machine, not agreed upon by us, this declaration will loose its validity. Machine desciption: CHAIN SAW SHARPENER GKS 108 Article-No.: #94077 Applicable EC Directives:...
