DuraHeat EWH5500 Installation Instructions

TOOLS NEEDED:

• Phillips head screwdriver
• Power Drill
• The remote control is powered by 2 AAA batteries. Batteries are NOT included

HARDWARE REQUIRED FOR WIRING HEATER:

• Adequate gauge and length of copper wire (2 power conductors plus ground) suitable for application
to route electrical panel to heater
• Suitable Junction Box and connectors as required for application
• Appropriate size wire nuts for connection branch circuit wires to pigtails.
• A length of flexible conduit (or as required by the NEC and local codes) to route power to heater.
Hardware supplied is intended for installation into wood framing only. If installation into other type of construction,
NOTE:

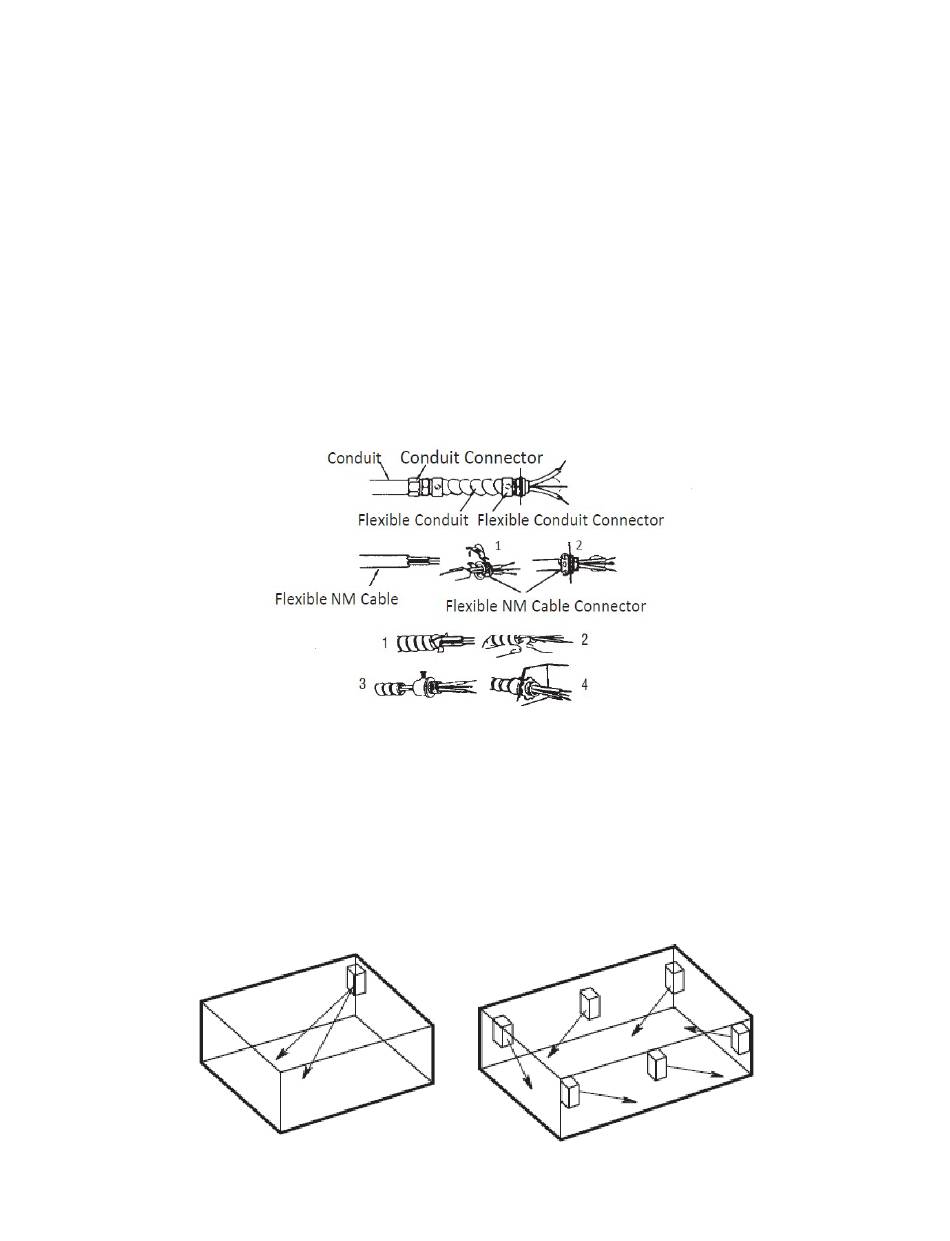

CONNECTORS, CABLE AND HARDWARE USED TO WIRE THE HEATER: Figure 2
LOCATING THE HEATER: Figure 3
The heater should be installed out of traffic areas and at least 6' off the floor. (8" above floor in Canada)
The direction of air flow should not be restricted (ie: by columns or machinery) and the air flow should
wipe exposed walls, rather than blowing directly at them. When more than one heater is used in an area,
the heaters should be arranged so that the air discharge of each heater supports the air flow of the others
to provide best circulation of warm air, as indicated in the Figure below.
INSTALLATION INSTRUCTIONS
additional hardware will be required for correct installation.
• 5/32 in. or 4 mm drill bit
• Stud Finder
