FORCED AIR HEATERS
"USER'S MANUAL"
C
US
Before the first use of this heater, please read this USER'S MANUAL
very carefully. This USER'S MANUAL has been designed to instruct you
as to the proper manner in which to assemble the heater, maintain the
heater, store the heater, and most importantly, how to operate the heater in
a safe and efficient manner. Please keep this manual for future reference.
WORLD MARKETING OF AMERICA, INC.
1-800-776-9425 (9 AM - 4 PM EST)
PORTABLE

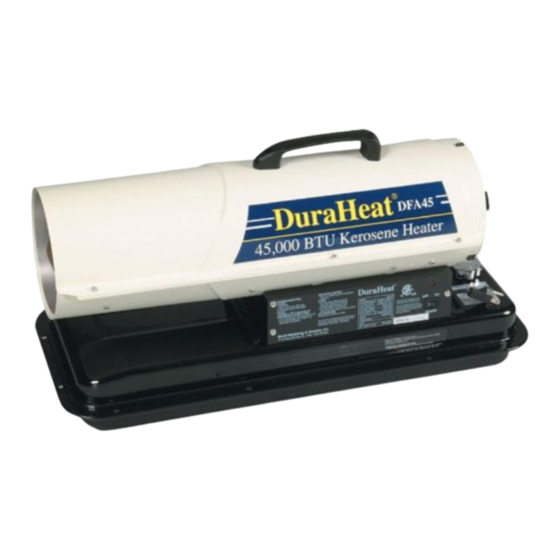

DuraHeat
MODEL:
DFA45
DFA65
DFA120
DFA170T
RT. 22 WEST, P.O. BOX 192
MILL CREEK, PA 17060
MON. - FRI. ONLY
www.yourheater.com
®
C
LISTED
US
Advertisement
Table of Contents
Related Manuals for DuraHeat DFA45
Summary of Contents for DuraHeat DFA45
- Page 1 PORTABLE FORCED AIR HEATERS “USER’S MANUAL” DuraHeat ® MODEL: DFA45 DFA65 DFA120 DFA170T LISTED Before the first use of this heater, please read this USER’S MANUAL very carefully. This USER’S MANUAL has been designed to instruct you as to the proper manner in which to assemble the heater, maintain the heater, store the heater, and most importantly, how to operate the heater in a safe and efficient manner.
- Page 2 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! DANGER - IMPROPER USE OF THIS HEATER CAN RESULT IN SERIOUS INJURY OR DEATH FROM BURNS, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR CARBON MONOXIDE POISONING. WARNINGS: 1. RISK OF INDOOR AIR POLLUTION! • Use this heater only in well ventilated areas. Provide at least a three-square foot (2800 sq. cm.) opening of fresh outside air for each 100,000 BTU/hr.
-
Page 3: Table Of Contents
2. FEATURES Handle Hot Air Outlet Upper Shell Fan Guard Lower Shell Fuel Gauge Fuel Tank Fuel Cap Side Cover Power Cord Lamp Power/Reset Switch Figure 1. DFA45/DFA65 MODEL... - Page 4 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! Figure 2. DFA120 MODEL Handle Upper Shell Hot Air Outlet Upper Shell Fan Guard Lower Shell Fuel Gauge Fuel Cap Side Cover Power Cord Lamp Fuel Tank Power/Reset Switch Figure 3. DFA170 T MODEL Handle Upper Shell Hot Air Outlet...
-
Page 5: Unpacking And Assembly
NOTE: Save the shipping carton and packing materials for future storage. DFA45/ 65 DFA120 DFA170T Wheel Support Frame Wheels Handle Screws and Nuts Axle Split Pin and Washer Figure 4. DFA45/DFA65 MODEL Handle Screws Figure 5. DFA120 MODEL/DFA170T MODEL Screws and Split Pin and Wheels Nuts Plane Washer Handle... - Page 6 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 2. ASSEMBLING A. For DFA45/DFA65 Model only (Figure 6) Screw Tools Required • Medium Phillips Screwdriver Handle 1. Align the holes on the upper shell with the 2 mounting holes on the handle as shown in Figure 6.
- Page 7 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! Handle Screw Hot Air Outlet Fuel Tank Flange Air Inlet Wheel Support Frame Extended Hub Wheel Axle Plane Washer Split Pin Figure 7. Wheel and Handle Assembly, DFA120/DFA170T MODELS ONLY 4. KEROSENE (1-K) It is EXTREMELY IMPORTANT for the proper operation of this heater that you use the correct grade of kerosene.
-
Page 8: Overview Of Heater Design
Plus/Minus 10 Degrees Plus/Minus 10 Degrees DFA120/DFA170T 230˚F/110˚C 194˚F/90˚C DFA45/DFA65 176˚F/80˚C 122˚F/50˚C Once the temperature falls below the reset temperature you will be able to start your heater. NOTE: For your safety the temperature limiting safety device built into this heater will allow the heater to run continuously when the ambient temperature is below 80˚F/24˚C. -
Page 9: Fueling Your Heater
Lamp Power/Reset Power/Reset Switch Switch Figure 8. DFA45/65/120 Models Figure 9. DFA170T Model NOTE: For your safety the temperature limiting safety device built into this heater will allow the heater to run continuously when the ambient temperature is below 80˚F/24˚C. -
Page 10: Long Term Storage Of Your Heater
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! TO STOP HEATER 1. Turn switch to “OFF” and unplug power cord. TO RESTART HEATER 1.Wait 10 seconds after stopping heater. 2. Repeat steps under to start heater. 8. LONG TERM STORAGE OF YOUR HEATER 1. - Page 11 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! C.) AIR OUTPUT FILTER, LINT FILTER Air Output Filter REPLACE EVERY 500 HOURS OF OPERATION OR ONCE A YEAR. Intake - Remove upper shell and fan guard (See page 9). Filter - Remove filter end cover screws using M5 nut driver. - Remove filter end cover.
- Page 12 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! F.) SPARK PLUG CLEAN AND REGAP EVERY 600 HOURS OPERATION OR REPLACE AS NEEDED. - Remove upper shell (See page 9). - Remove fan (See page 10). Burner - Remove ignitor wire from spark plug. Head - Remove spark plug from burner head using medium Ignitor...
- Page 13 Pressure Gauge - Stop heater (See Operation, page 8) Plug - Remove pressure gauge. Replace pressure gauge plug in filter end cover. MODEL PUMP PRESSURE DFA45 3.5 psi Relief Valve DFA65 3.5 psi DFA120 4.5 psi Pressure Gauge DFA170T 6.5 psi...
-
Page 14: Trouble Shooting Guide
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! . TROUBLE SHOOTING GUIDE TROUBLE POSSIBLE CAUSE CORRECTIVE ACTION Heater ignites but MAIN PCB 1. Wrong pump pressure 1. See Pump Pressure Adjustment, assembly shuts heater off after page 12. a short period of time. 2. -
Page 15: Wiring Diagram
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! . WIRING DIAGRAM A. WIRING DIAGRAM (DFA45/DFA65) B. WIRING DIAGRAM (DFA120) C. WIRING DIAGRAM (DFA170T) -
Page 16: Specifications
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! . SPECIFICATIONS 760cm 300cm DFA45/DFA65 DFA120 DFA170T 589cm 629cm 853cm 993cm 483cm 522cm MODEL DFA45 DFA65 DFA120 DFA170T BTU/Hr. 45,000 65,000 120,000 170,000 Fuel Consumption - Gal./Hr. Fuel Tank Capacity - Gal. 10.0 13.0... -
Page 17: Exploded Parts Drawing
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! . EXPLODED PARTS DRAWING NOTE: SPECIFY MODEL NUMBER AND PART NUMBER WHEN ORDERING PARTS. 23-1 Motor Pump Assembly Burner Head Assembly... -
Page 18: Parts List
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! . PARTS LIST KEY NO. DESCRIPTION PART NO. DFA45 DFA65 DFA120 DFA170T Fuel Tank Assembly 280-1004-02 280-1004-02 280-1004-01 280-1004-00 Fuel Gauge 282-1001-01 282-1001-01 282-1001-00 282-1001-00 Fuel Filter Assembly 287-4000-20 287-4000-20 287-4000-21 287-4000-21 Fuel Cap... - Page 19 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! . PARTS LIST KEY NO. DESCRIPTION PART NO. DFA45 DFA65 DFA120 DFA170T Side Cover R 280-5102-90 280-5102-90 280-5103-01 280-5103-10 Side Cover L 280-5102-91 280-5102-91 280-5103-02 280-5103-11 Fan Guard 285-3107-40 285-3107-40 285-3107-41 285-3107-41 Main P.C.B. Assembly...
- Page 20 LIMITED WARRANTY: This limited warranty is extended to the original retail purchaser of this DuraHeat Heater and warrants against any defect in materials and workmanship for a period of one (1) year from the date of retail sale. World Marketing of America, Inc., at it's option, will either provide replacement parts or replace or repair the unit, within one (1) year of retail purchase.
